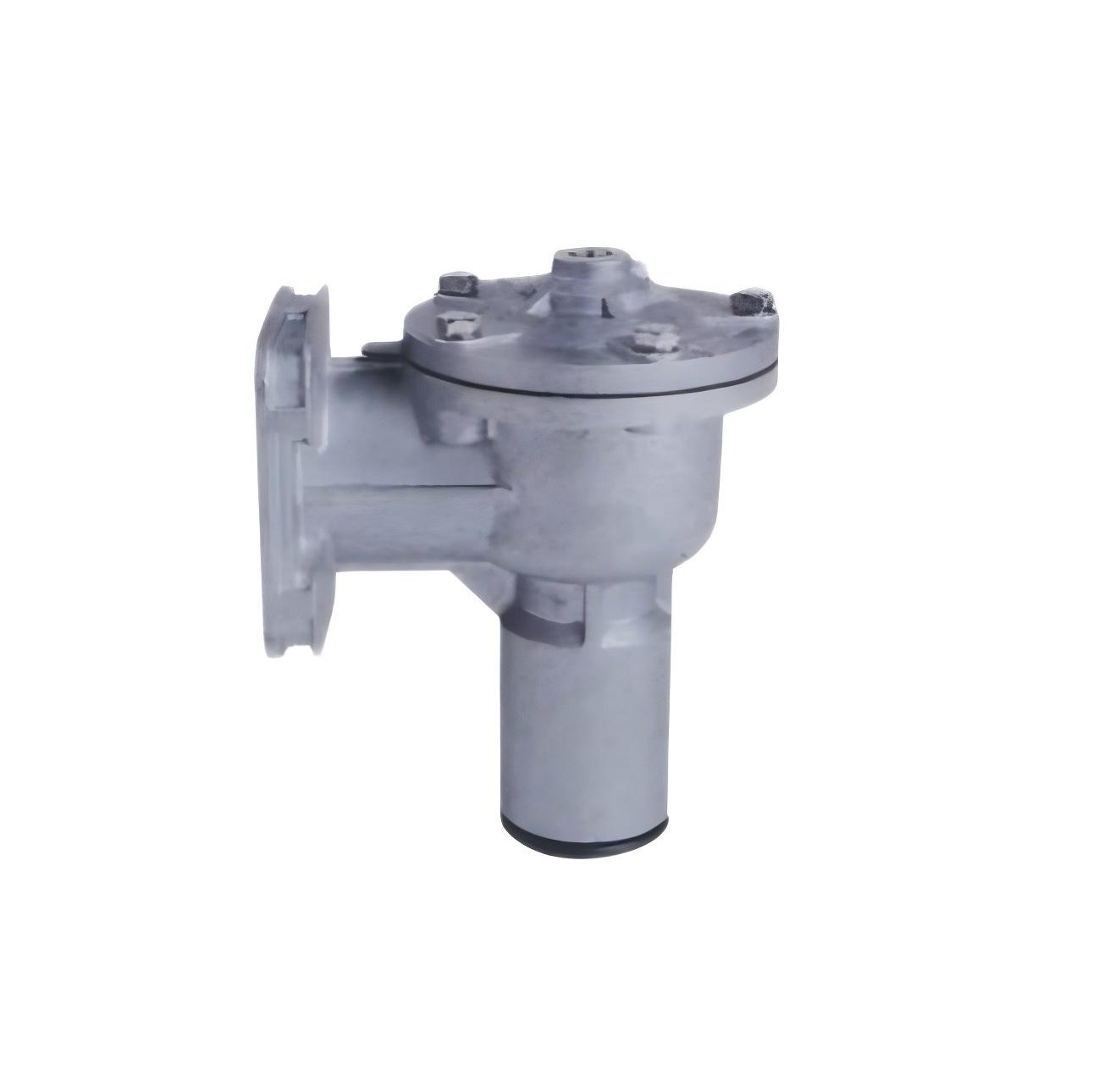

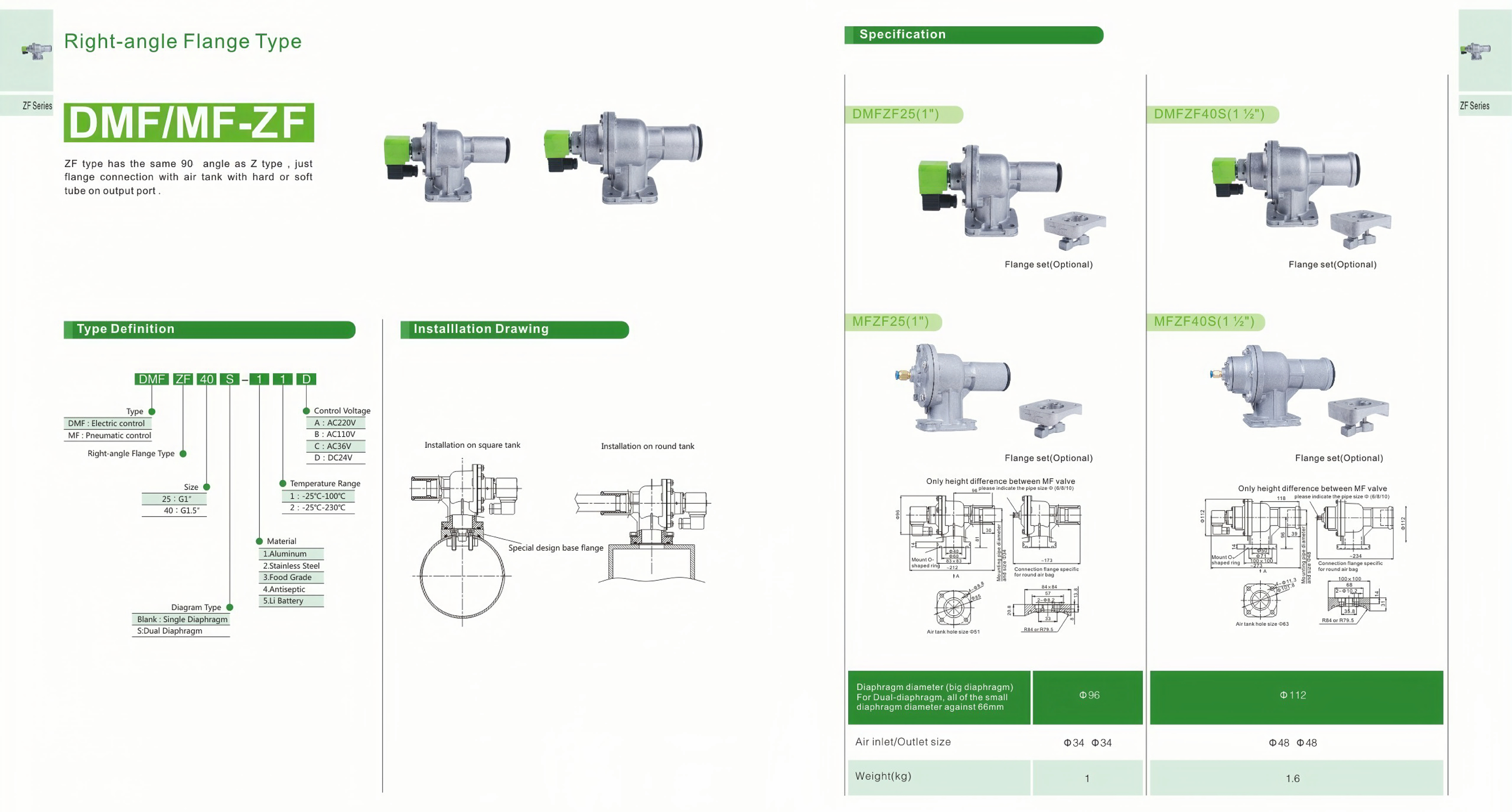

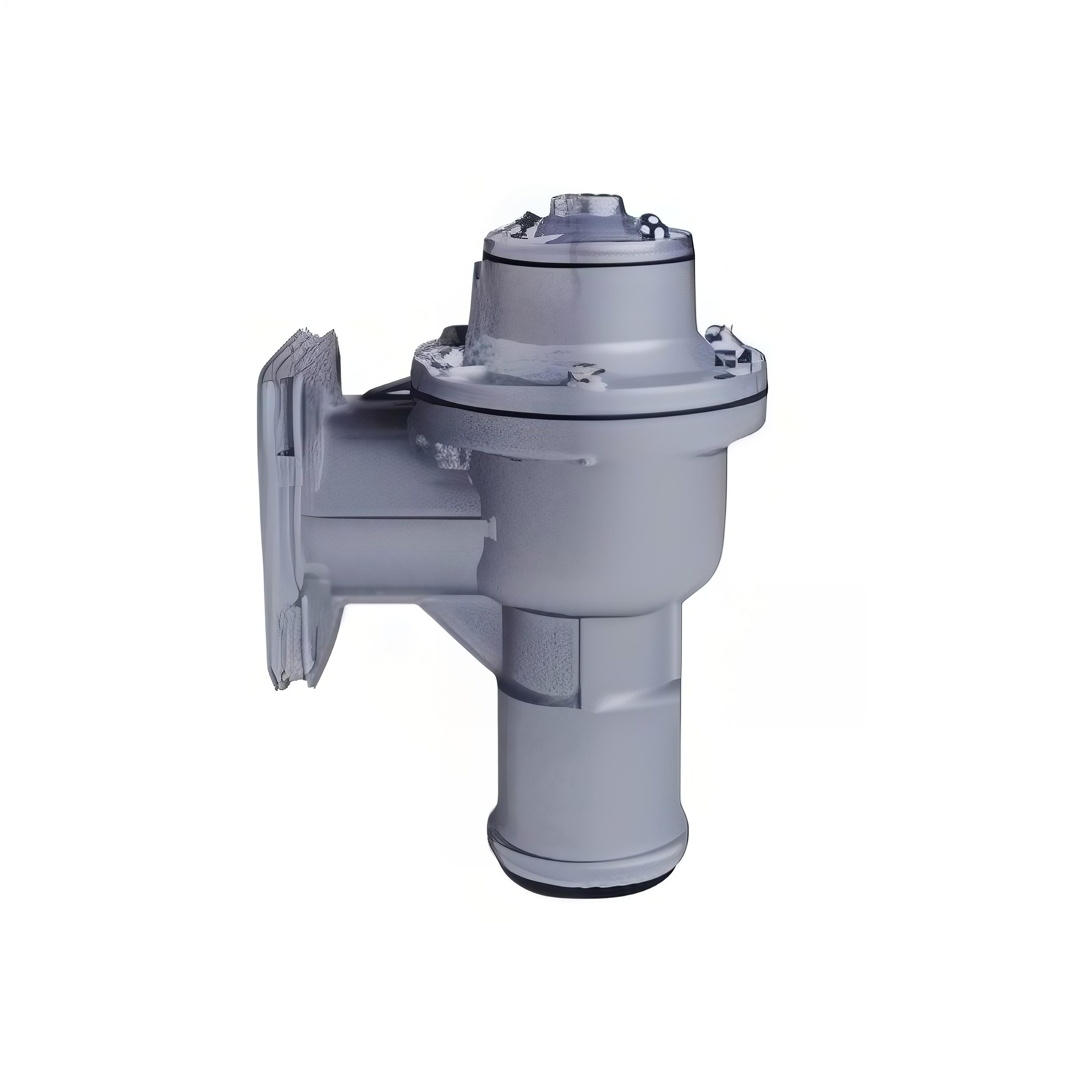

ZF type pulse valve as the same 90 angle as Z type, just flange connection to air tank with hard or soft tube on the outlet end.
| Model | Size | KV | CV |
| DMF-ZF-25 | G1″ | 26.16 | 30.5 |
| DMF-ZF-40S | G1½″ | 45.82 | 53.47 |

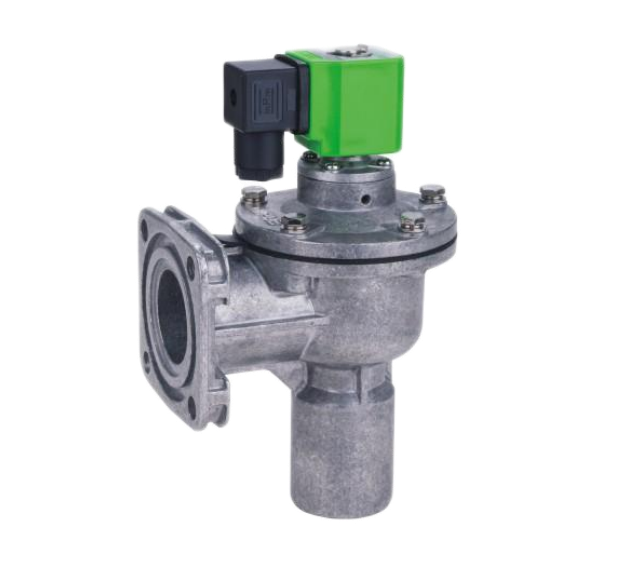

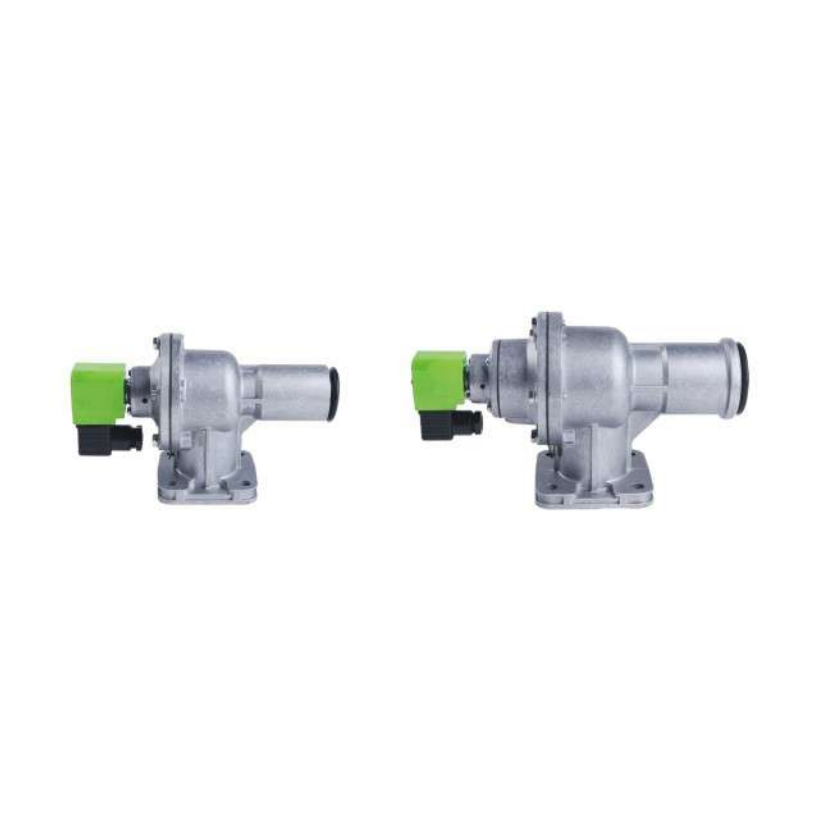

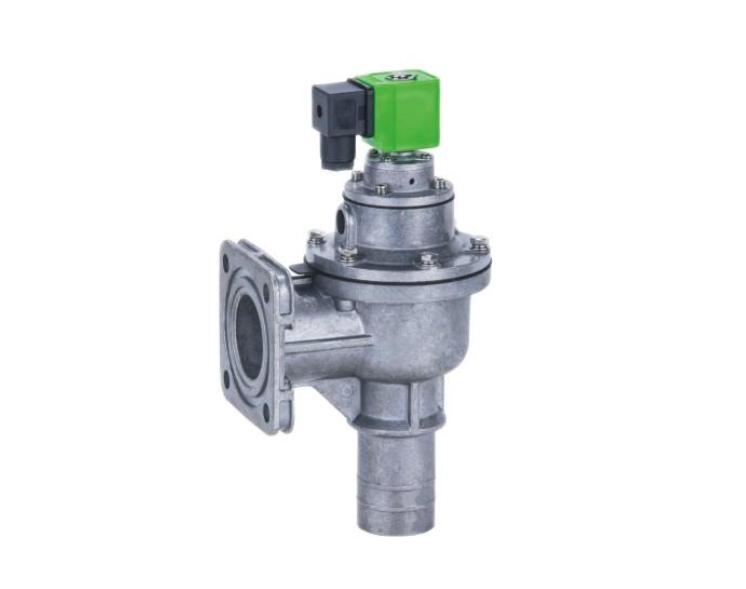

DMF-ZF series pulse valve also has a 90° from inlet to outlet end, but the inlet end with a square flange while the outlet end is a threaded pipe. This will allow for a easy installation in the dust collection system.
