RCA Series Remote Control Solenoid Box for Dust Filter System

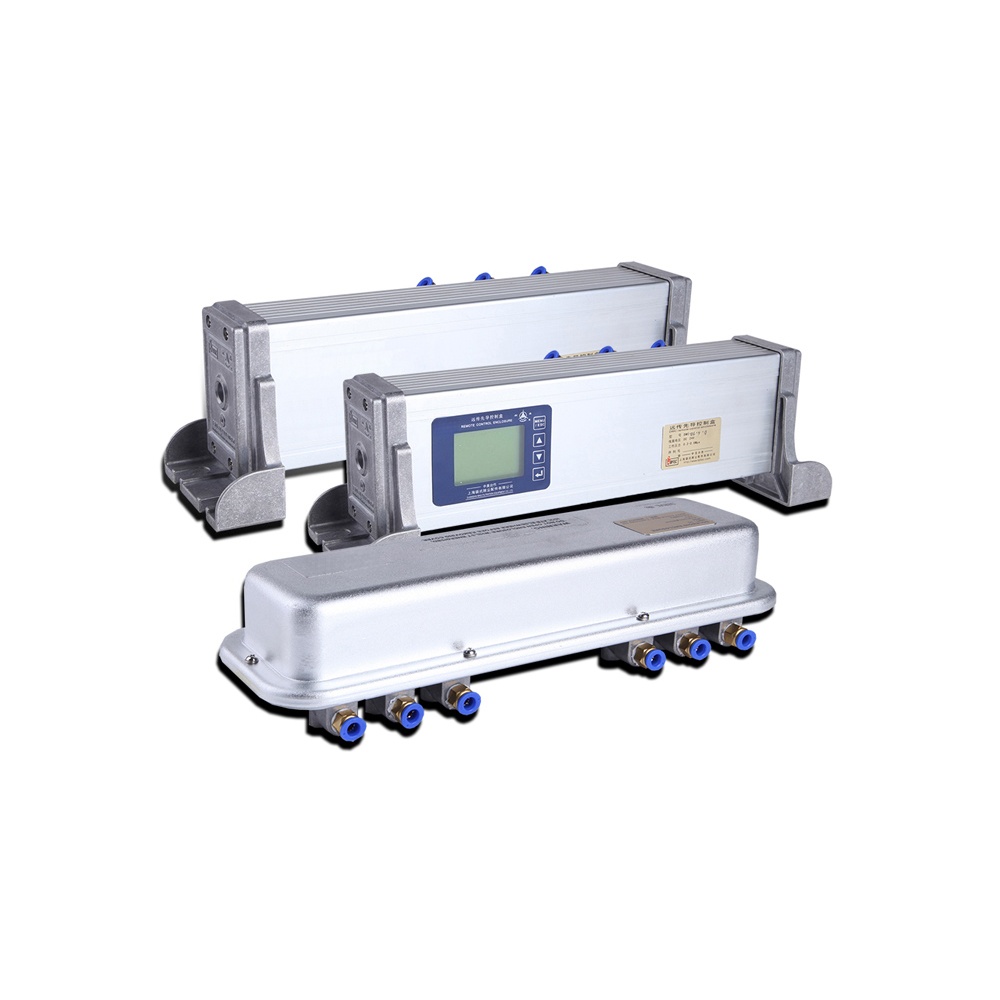

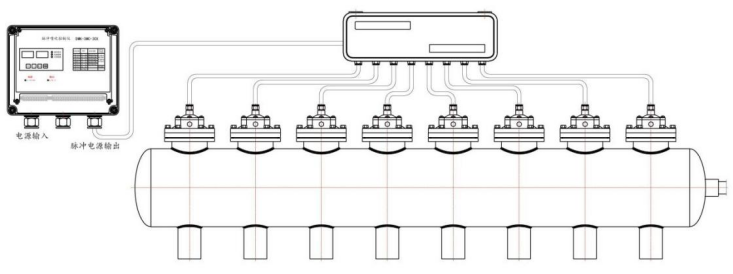

1、This solenoid box is installed in the middle upper part of the air tank and is in a horizontal position. The pilot valve is in a vertical state and is reliably fixed. The installation diagram of this solenoid box and the submerged pulse valve is as follows:

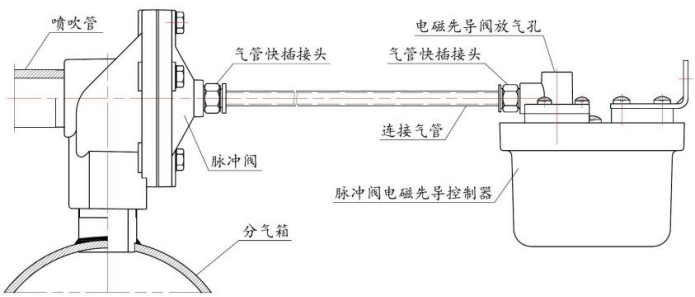

2、The connection port of pilot pulse valve in this solenoid box is G1/8 “thread. The connection pipe between this solenoid box and the right angle pulse valve is shown in the following figure:

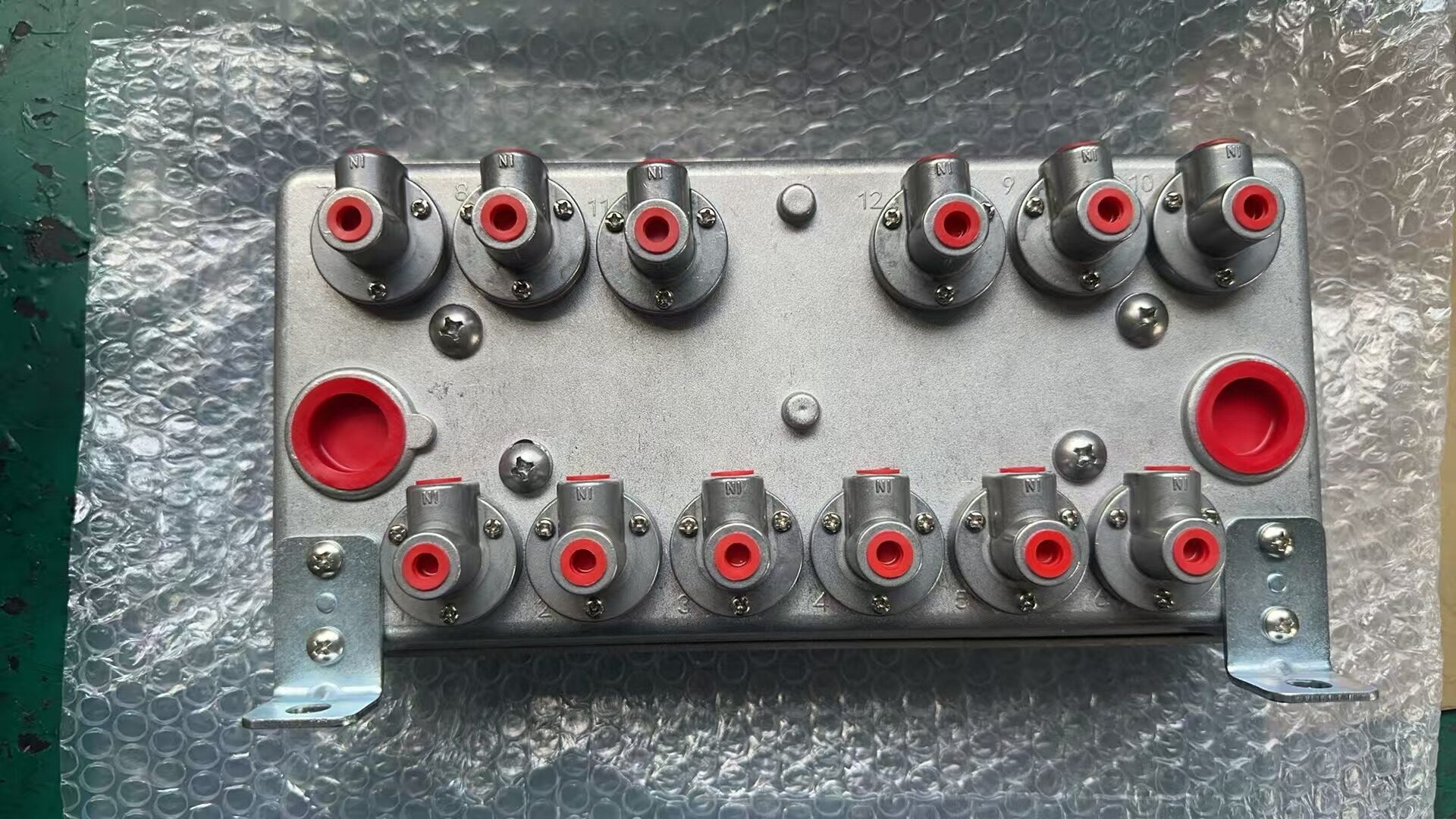

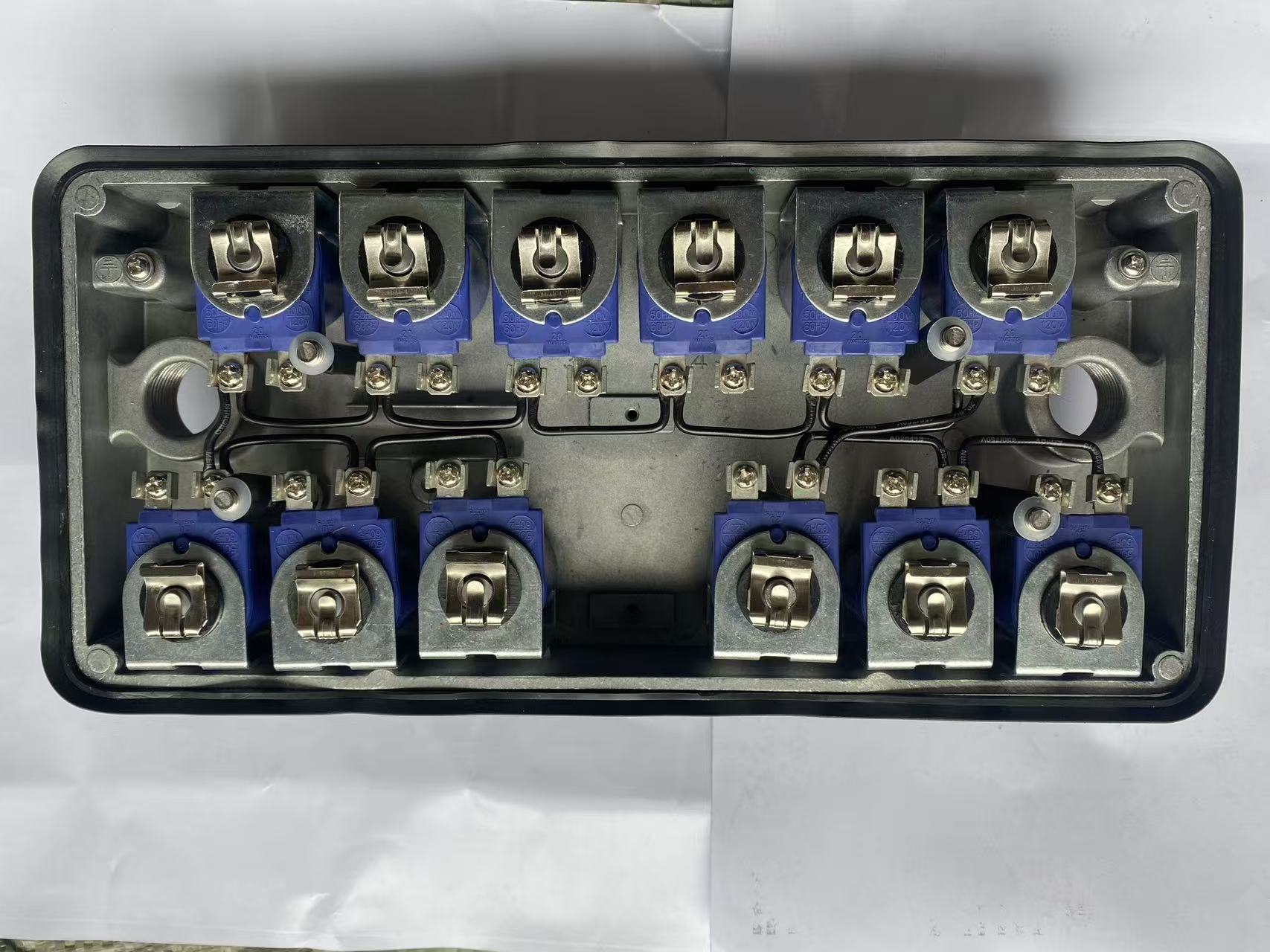

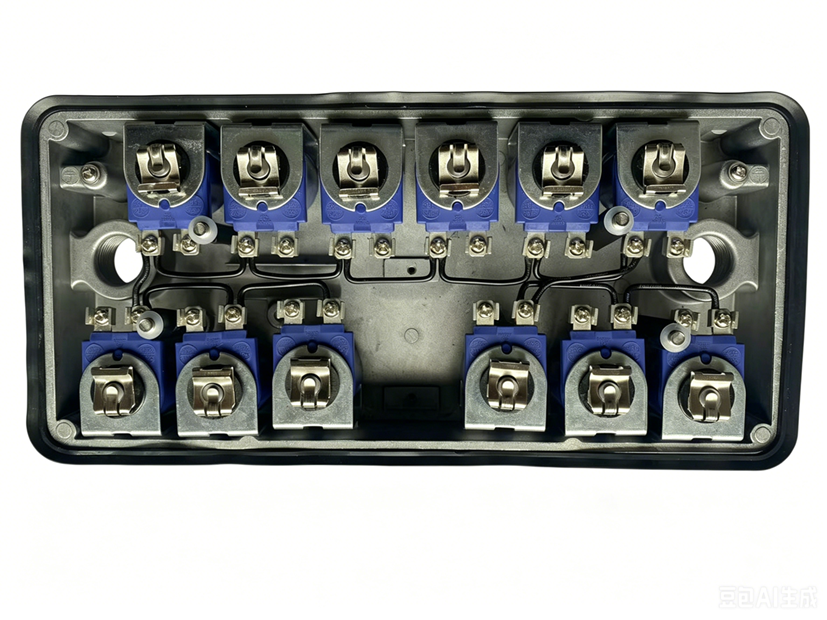

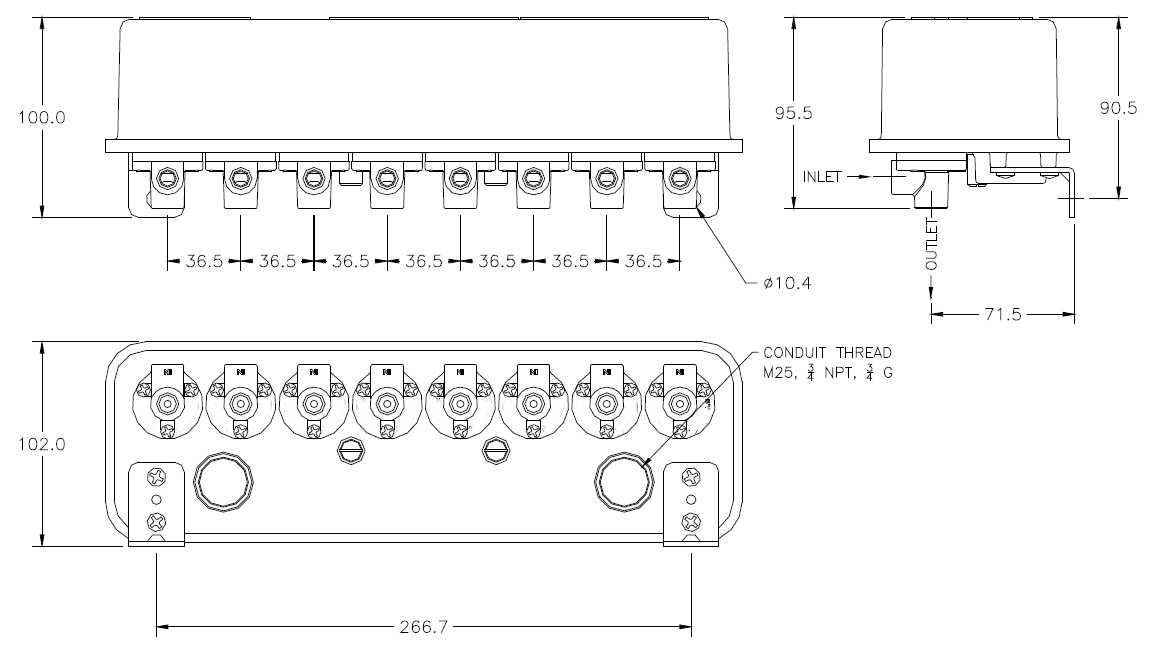

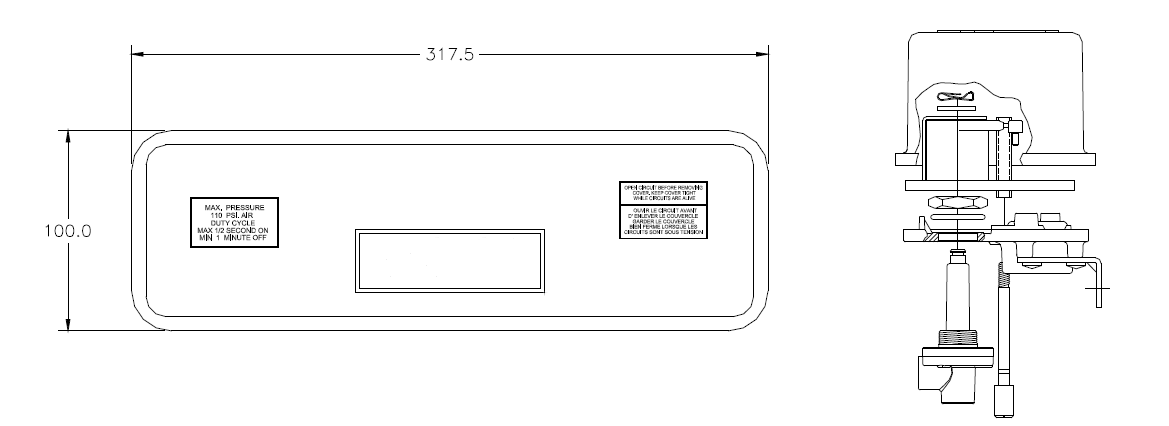

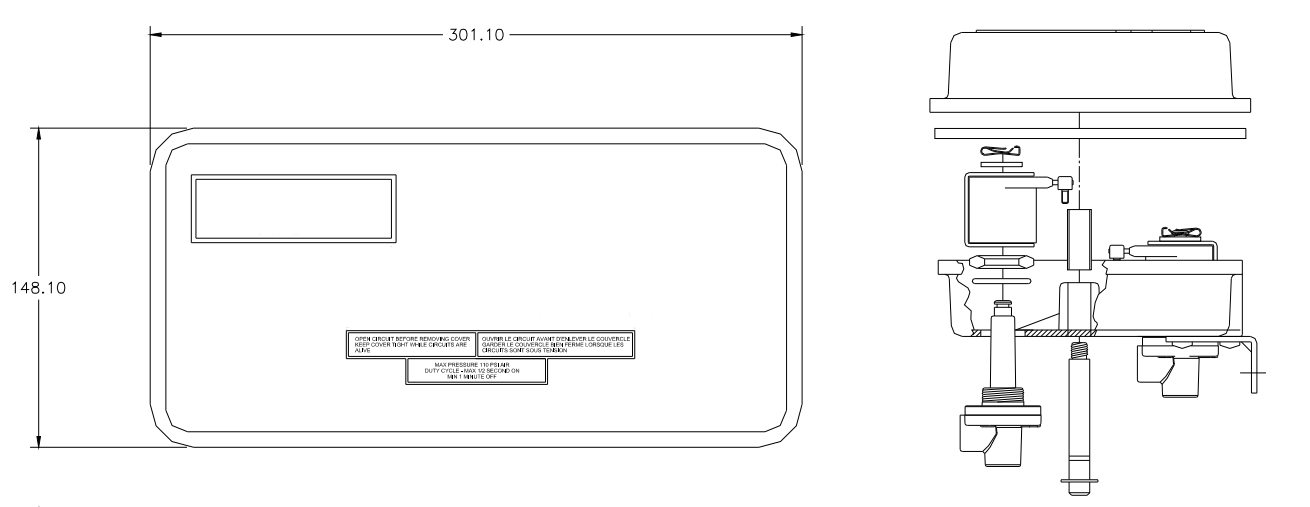

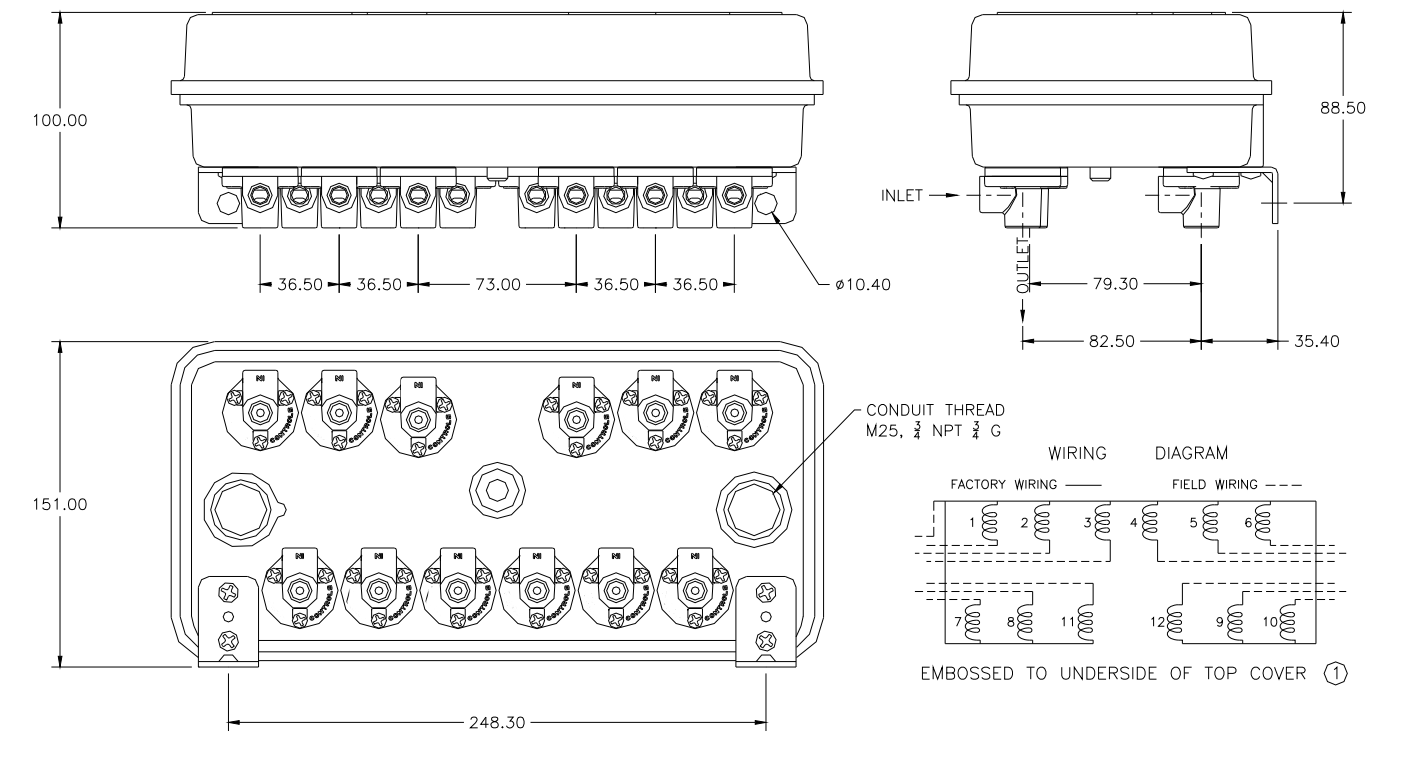

3. The drawing with size for the solenoid remote control box as below:
