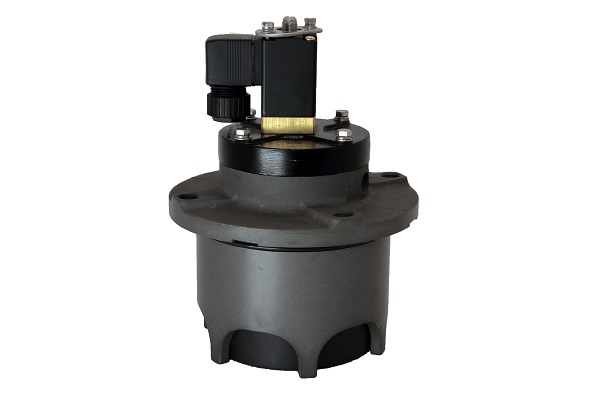

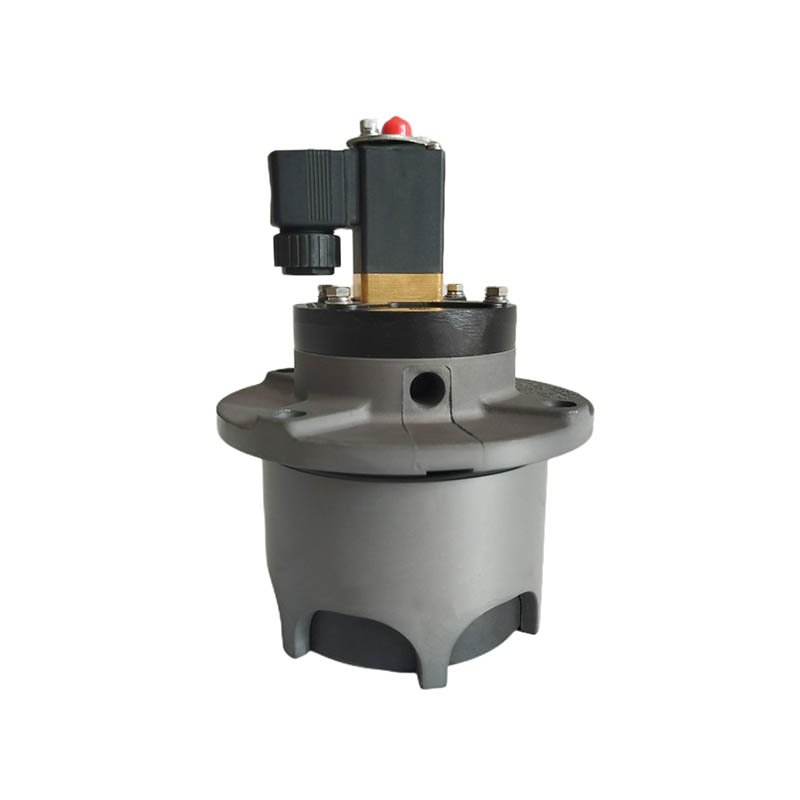

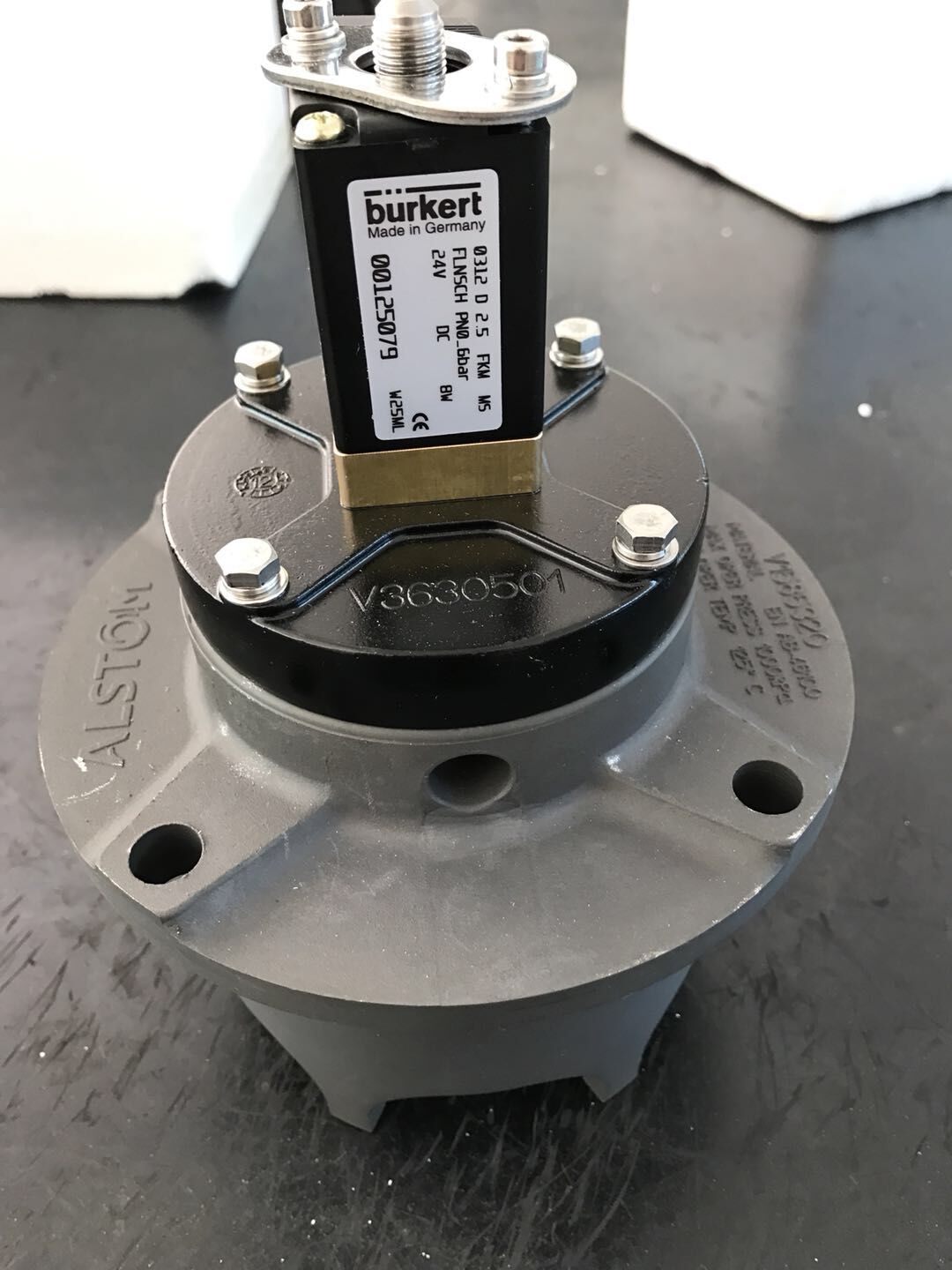

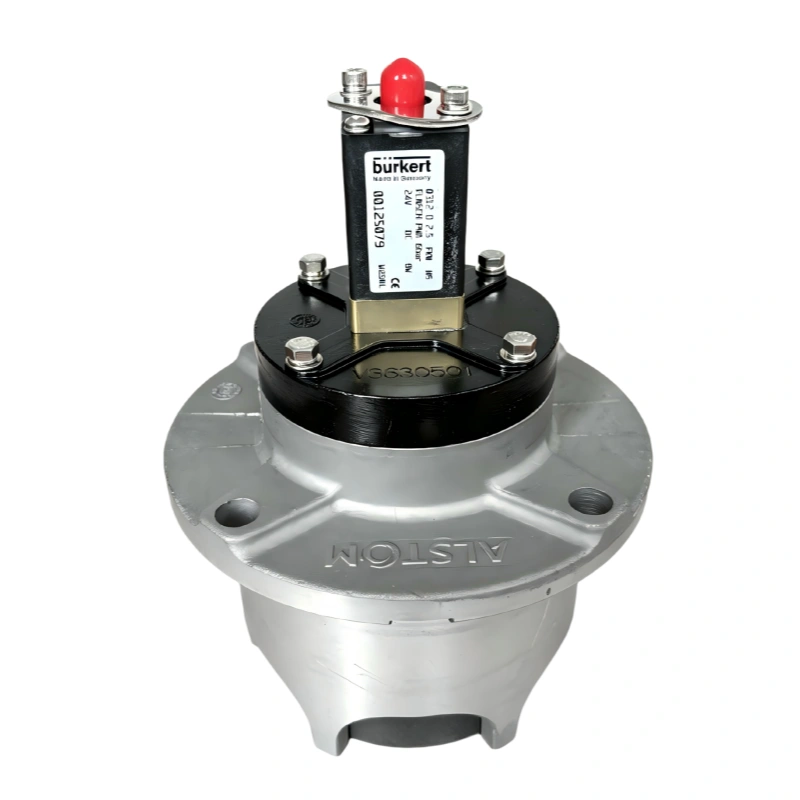

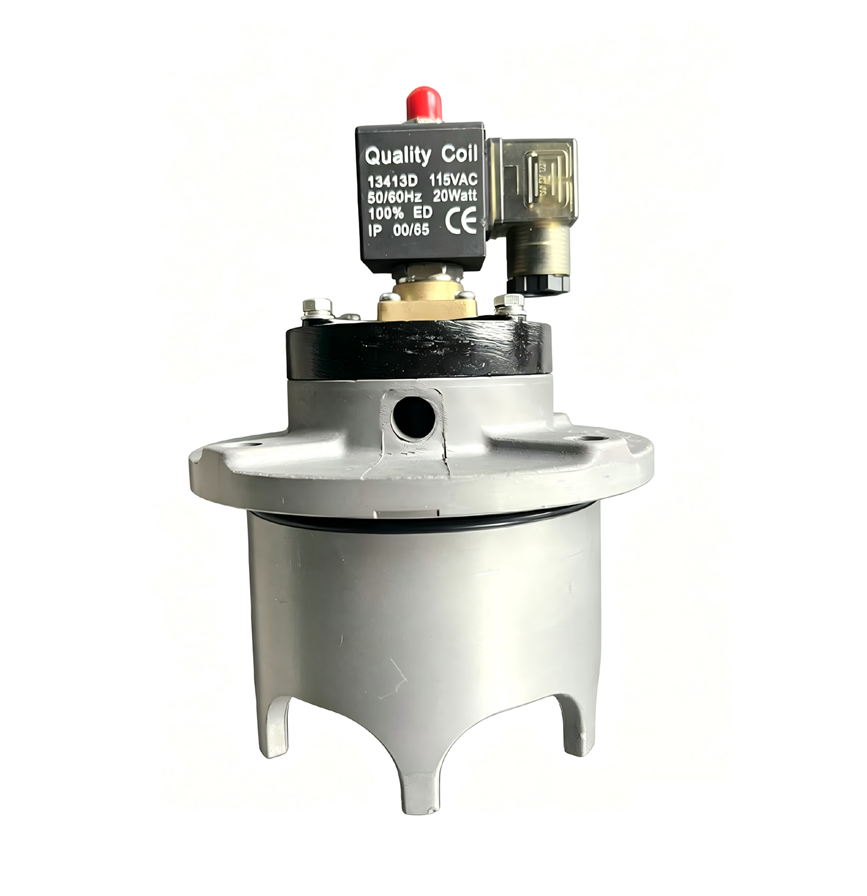

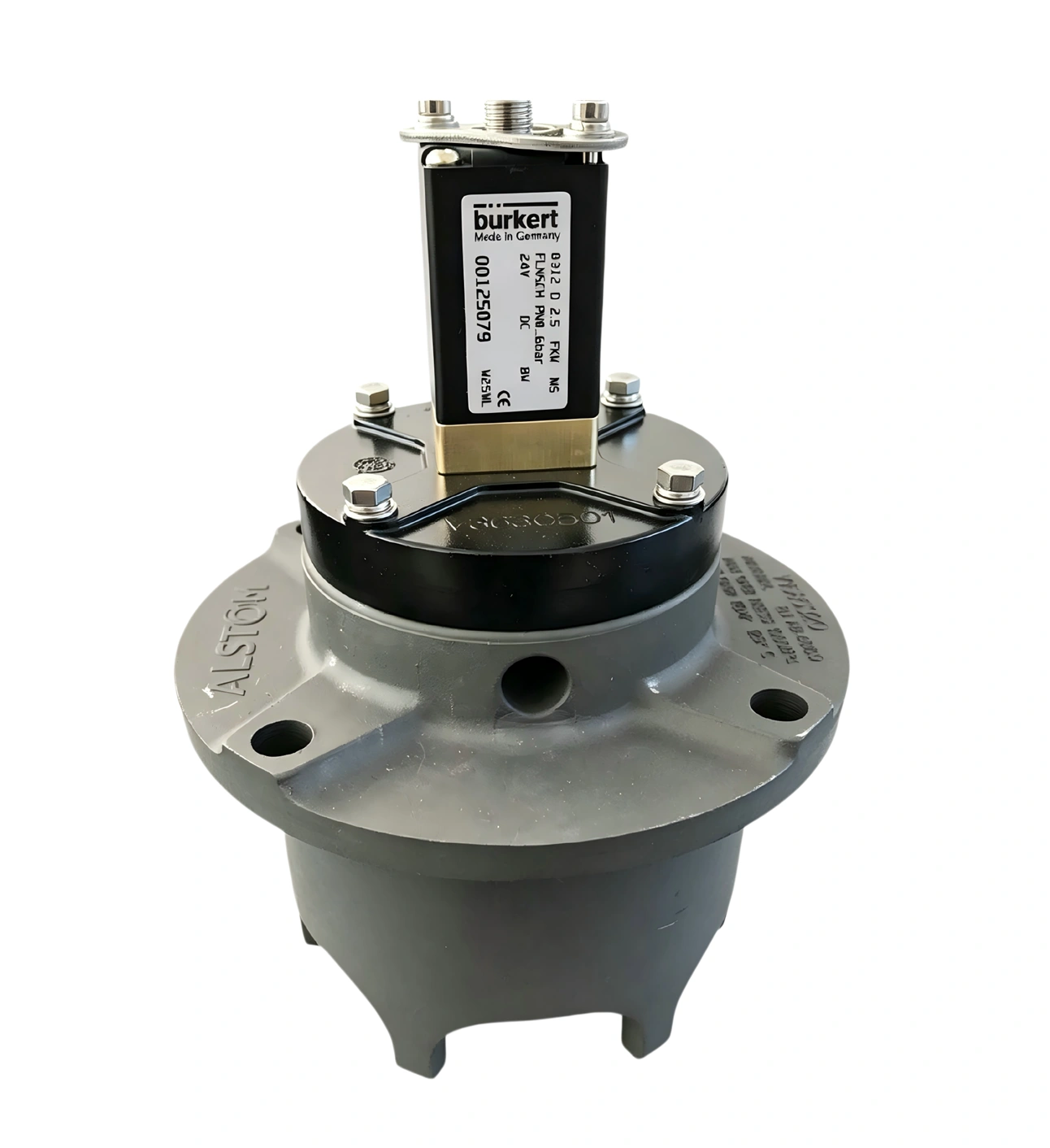

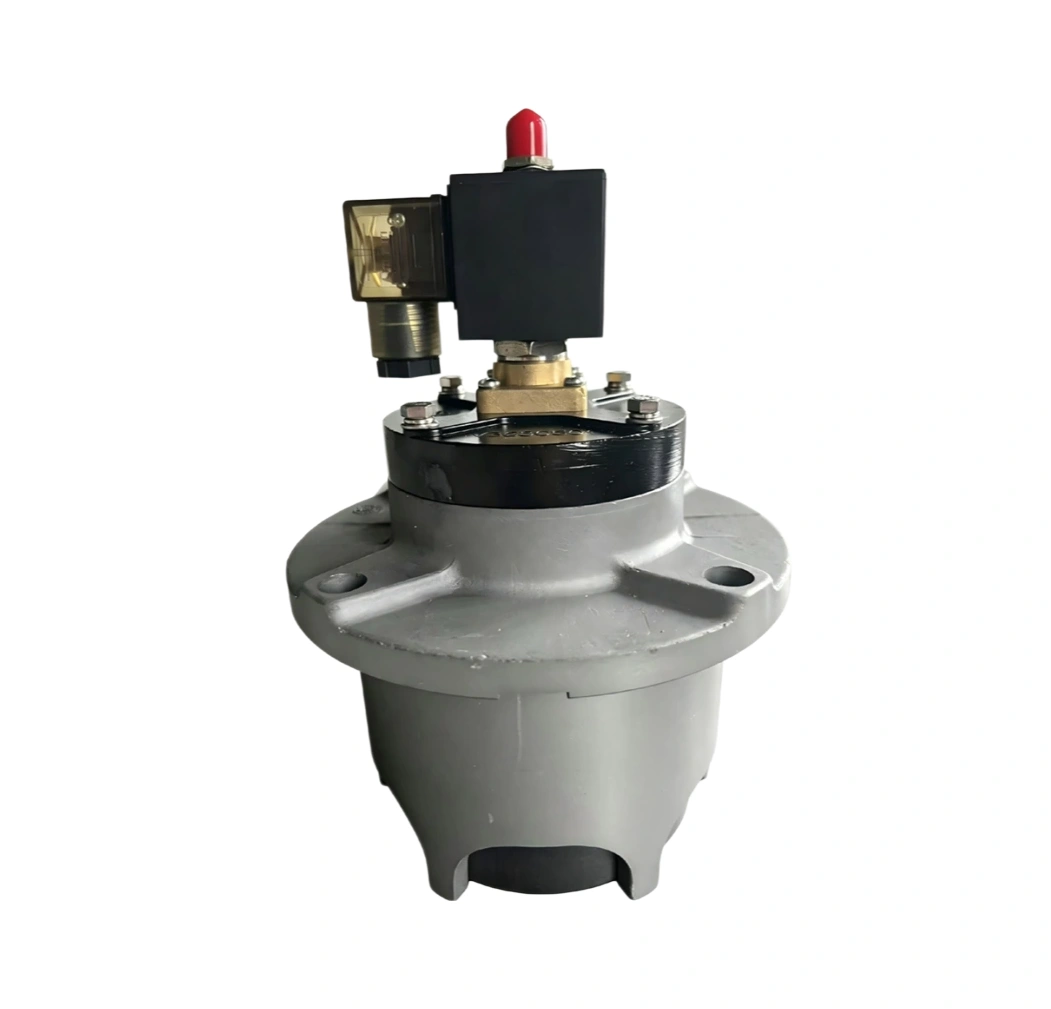

Alstom OPTIPOW 105 valve, the 3-inch compact pulse valve for the pulsed compressed-air cleaning of filter bags in industrial dust removal systems. The number 105 refers to the diameter of the internal plunger (105 mm).
• is a result of many years of experiences within the fabric filter technology area;• is quick acting with high efficiency;
• has small dimensions, the figure after the name stands for the diameter of the plunge;
• is primarily designed to be used in combination with circular pressure tank;
• is easy to install and make service to;
• has a very robust design, designed for normal use at air pressure up to 600kpa(6 bar);
• normal max operating temperature(complete valve) 80°C.

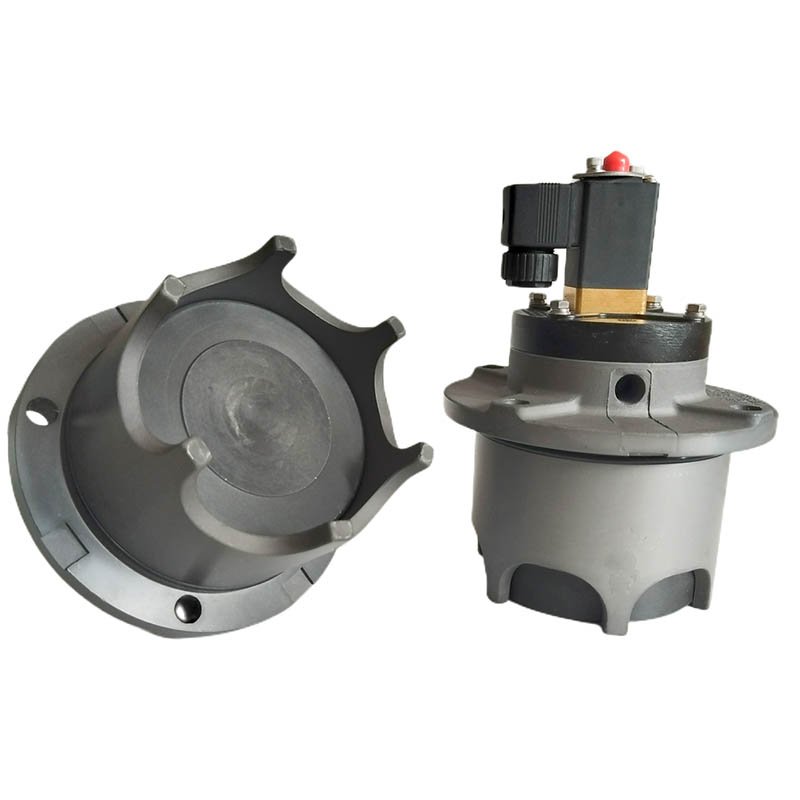

Main Parts of Alstom Optipow 105
Common Model Numbers
A common Optipow 105 model is:
- V1617803-0100 — OPTIPOW 105, 24 VDC solenoid version
Other voltage versions include:
- V1617803-0200 — 110V/60Hz or 100V/50/60Hz
- V1617803-0300 — 110V/50Hz
- V1617803-0400 — 120V/60Hz
- V1617803-0500 — 220V/50Hz
- V1617803-0600 — UR-certified 120V/60Hz version
Replacement Parts for Optipow 105
Typical spare parts include:
| Part | Part Number |
|---|---|
| Membrane | V4549902-0100 |
| Pilot cover | V3630501-0100 |
| Plate | V3630524-0100 |
| Plunger | V3630527-0100 |
| Solenoid valve 24VDC | V3611471-0100 |
| O-rings | 8003-5573 / 2136-1422 / 2136-1435 |

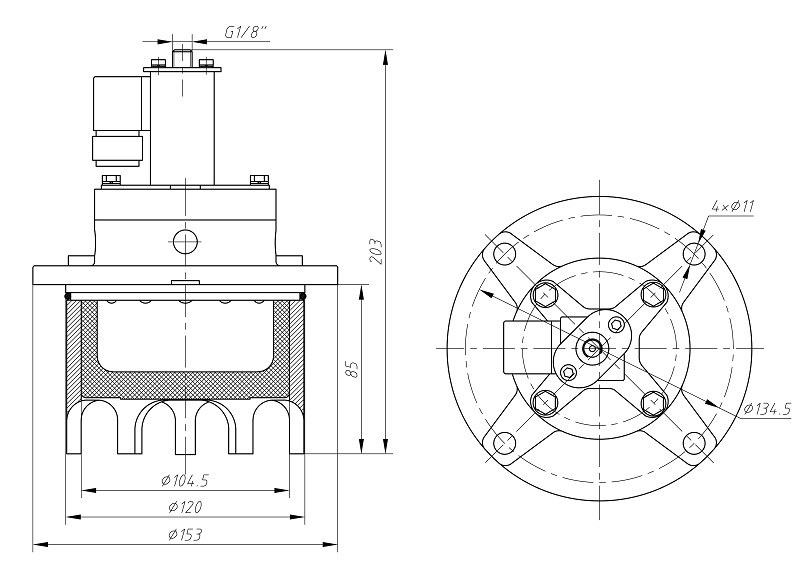

Installation Size
DATA SHEET FOR Air Cleaning Valve Alstom Optipow 105 | ||
| S.No | Features | Technical Data |
| 1 | Valve Type | Plunger Type Pulse Jet Solenoid Valve |
| 2 | Model | OPTIPOW 105 |
| 3 | Maker | Equivalent to Alstom |
| 4 | Size | 3inch (DN80mm pipe) |
| 5 | Working Pressure | 2~6bar |
| 6 | Working Medium | Clean air or nitrogen |
| 7 | Working Temperature | -25°C ~ 55°C |
| 8 | Air medium | Dry & Oil free |
| 9 | valve body material | Aluminum casting alloy – ADC12 |
| 10 | cover valve material | Aluminum casting alloy – ADC12 |
| 11 | Piston material | Polyamide material – PA66 |
| 12 | Pilot Material | Stainless Steel |
| 13 | Fastener material | Stainless Steel |
| 14 | Rubber Disc | NBR + nylon mesh |
| 15 | Pulse width | 60-100ms |
| 16 | Coil Voltage | DC24V or AC110V or AC220V (CE certified) |
| 17 | Filter area | 72m2 |
| 18 | Degree of Protection
| IP 65
|

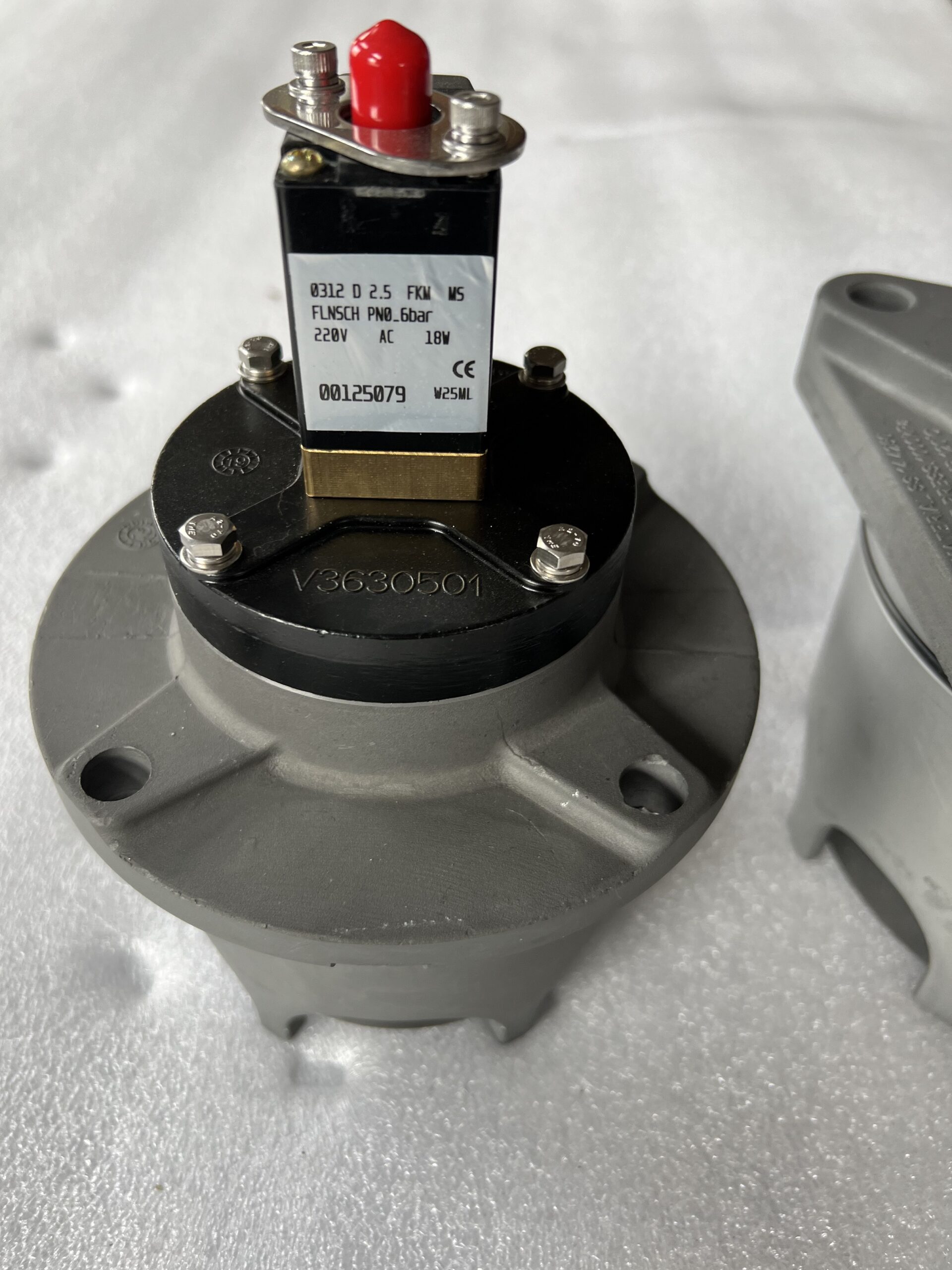

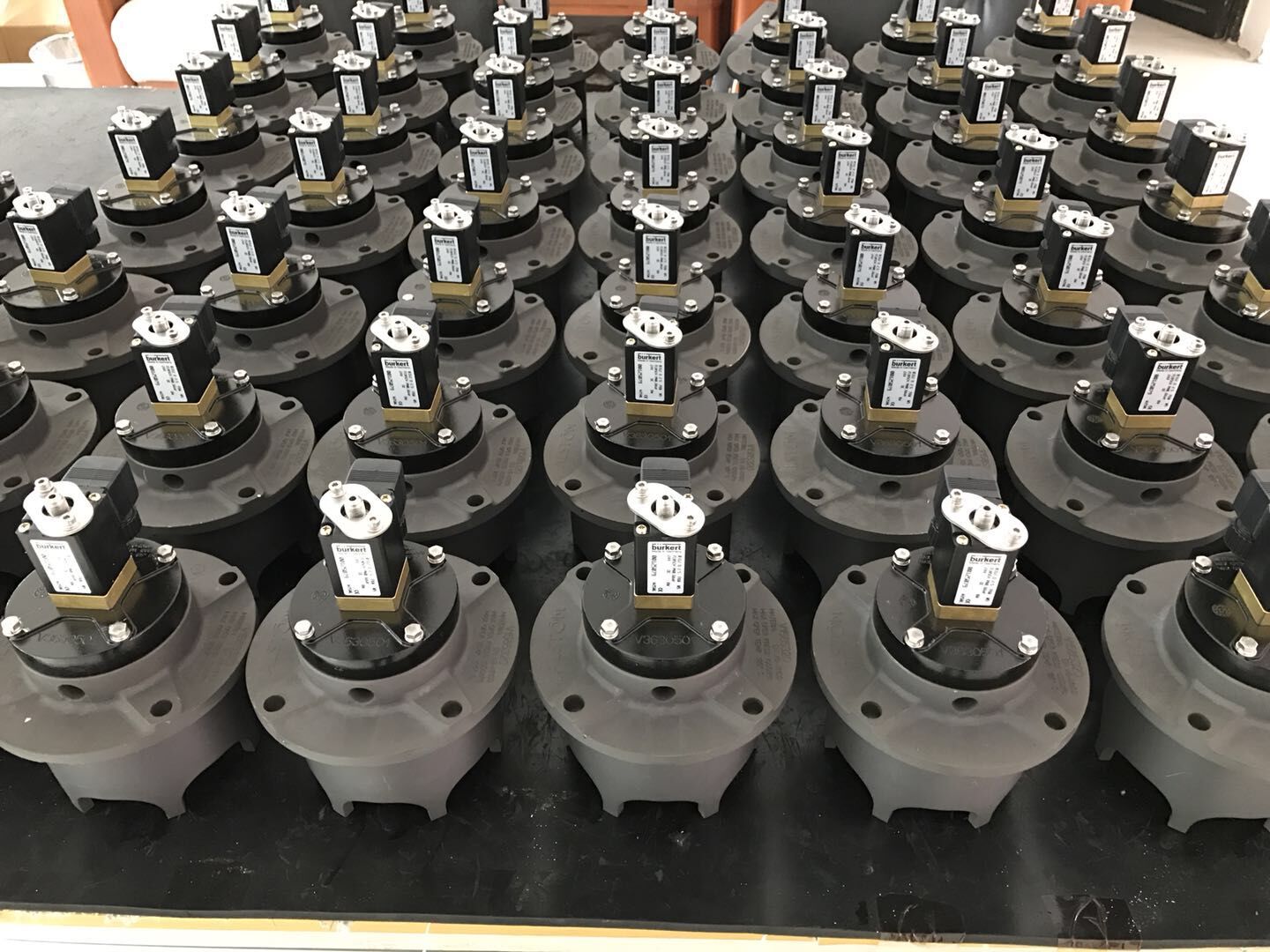

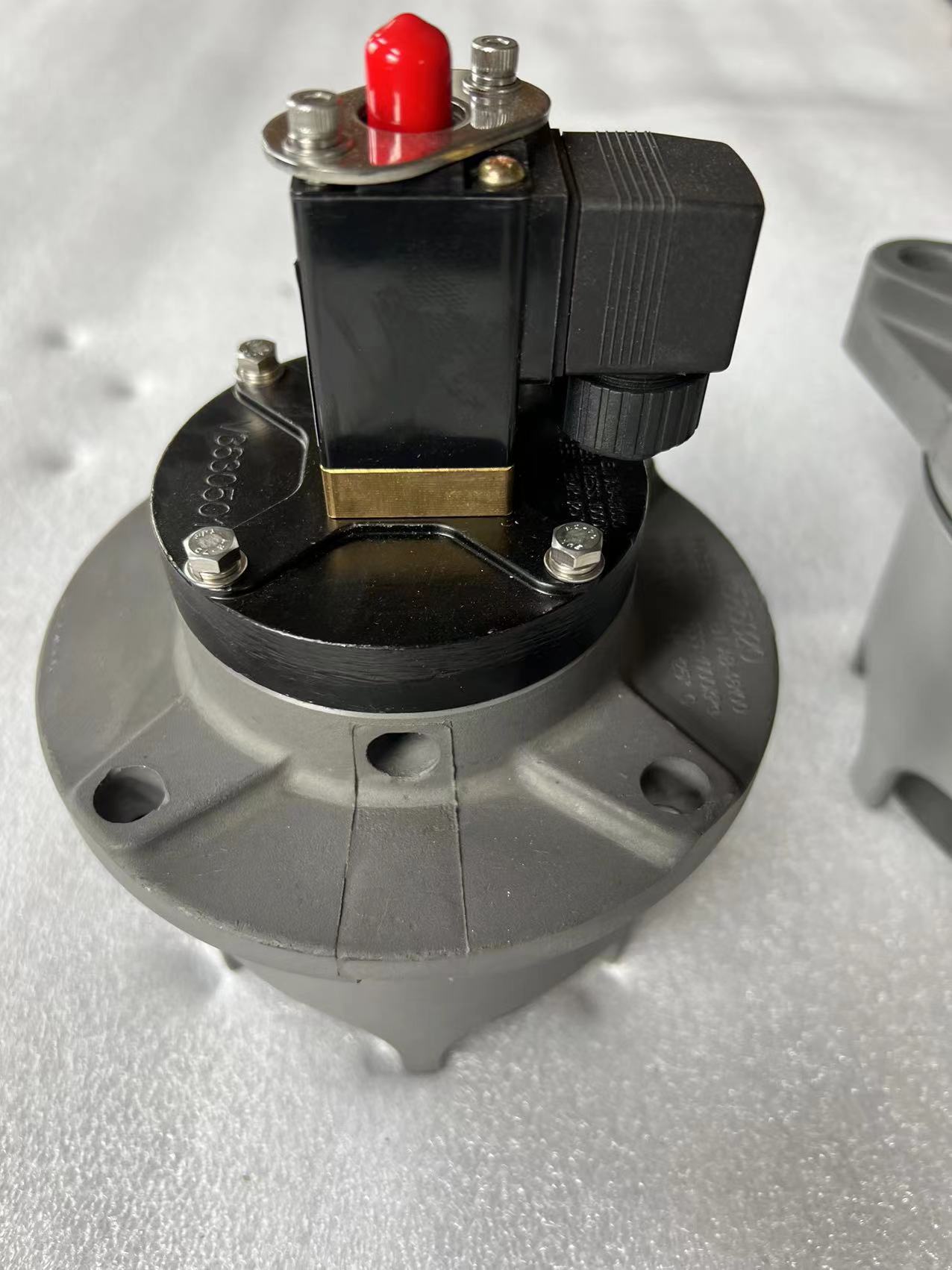

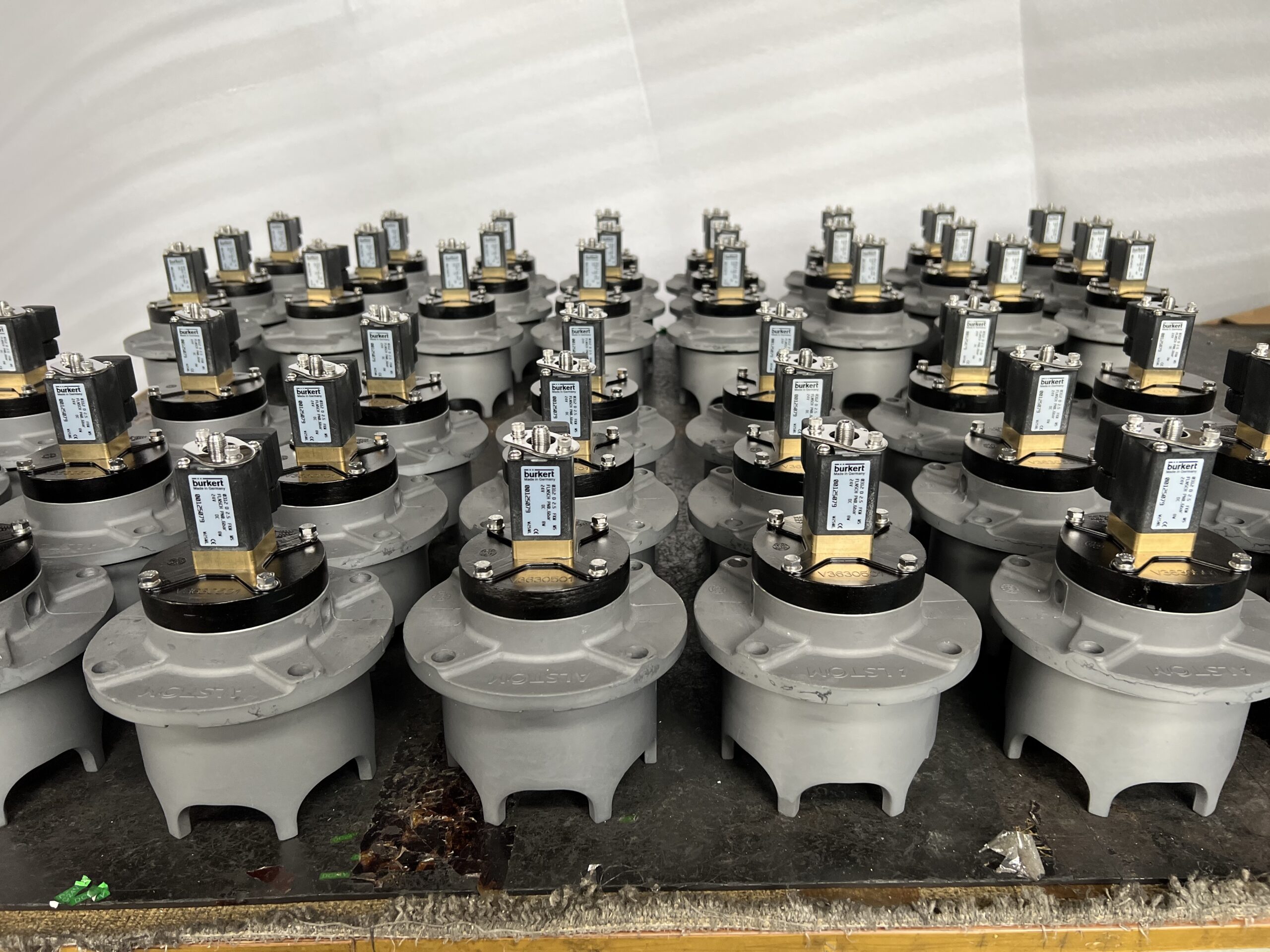

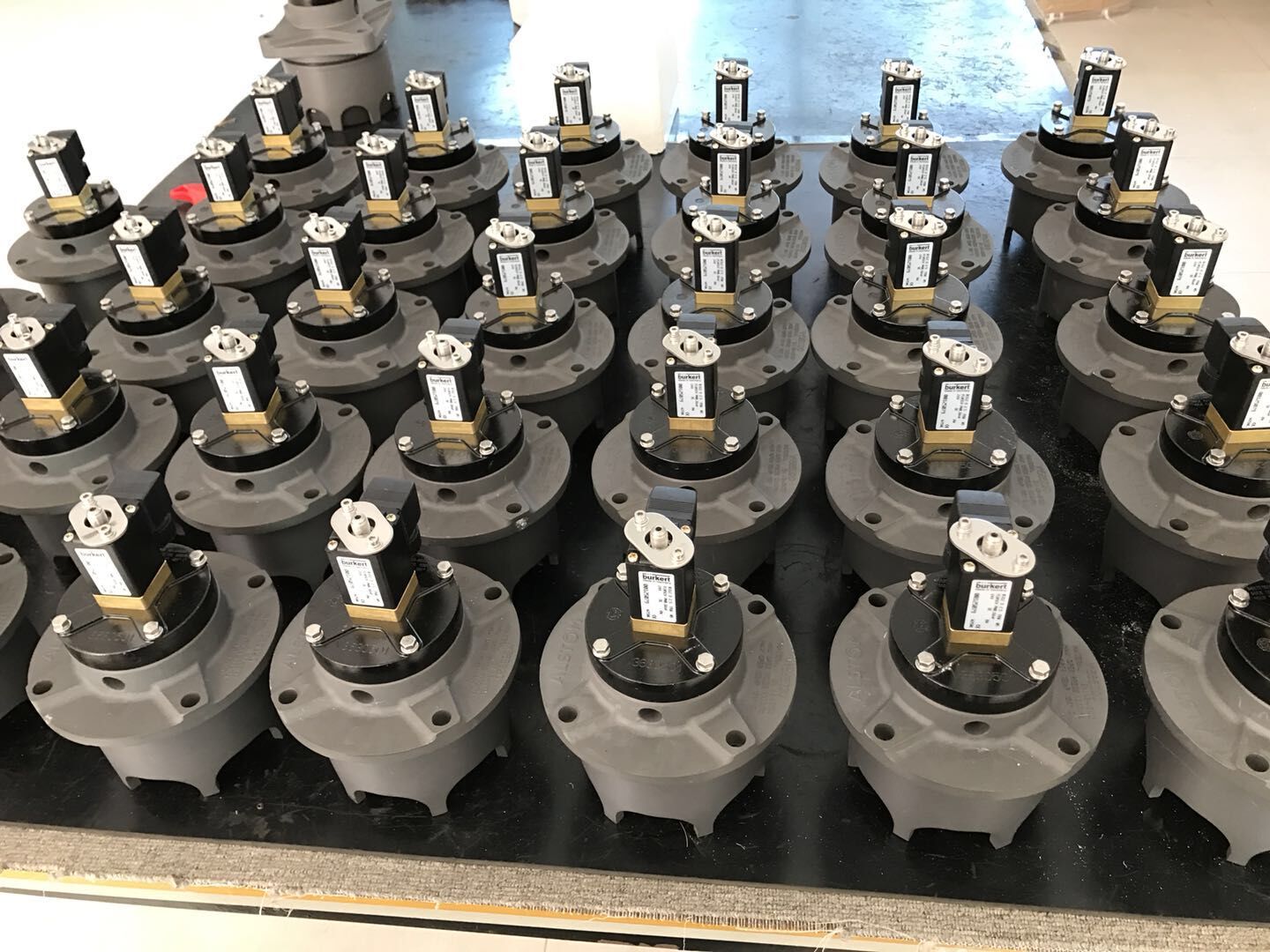

Shipment Photos
