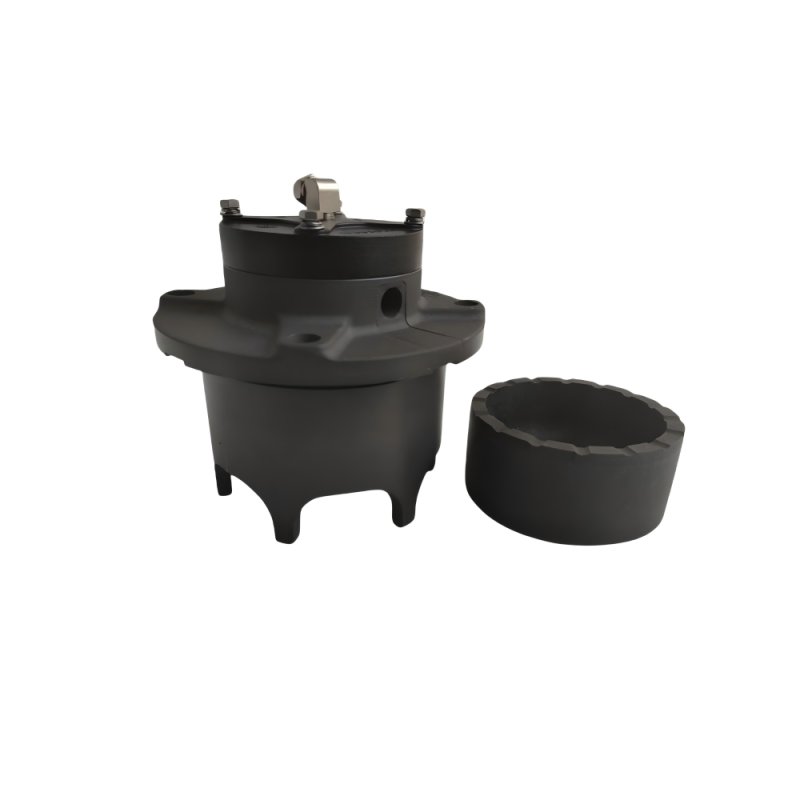

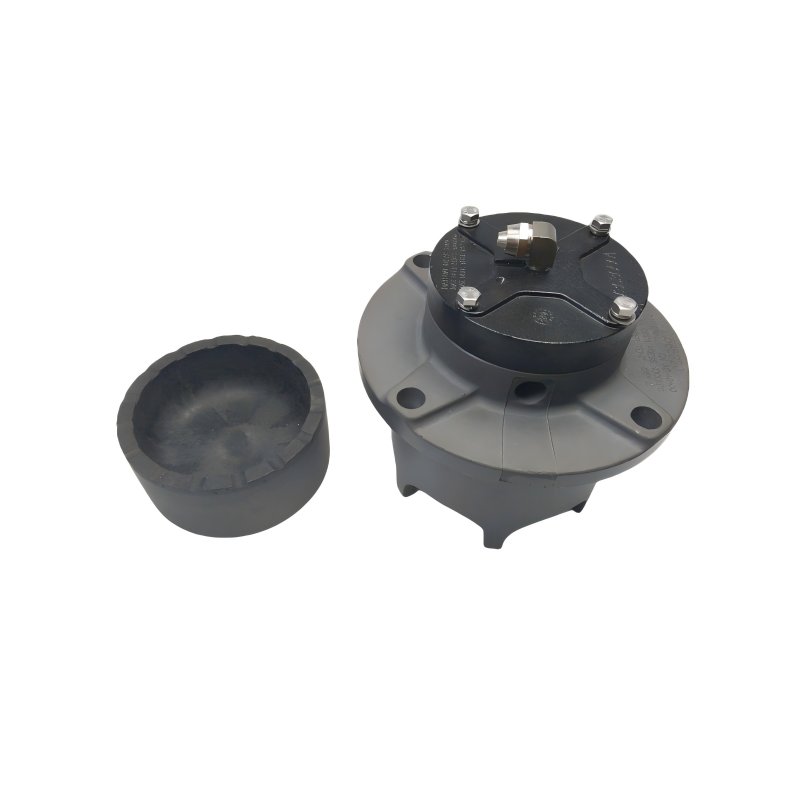

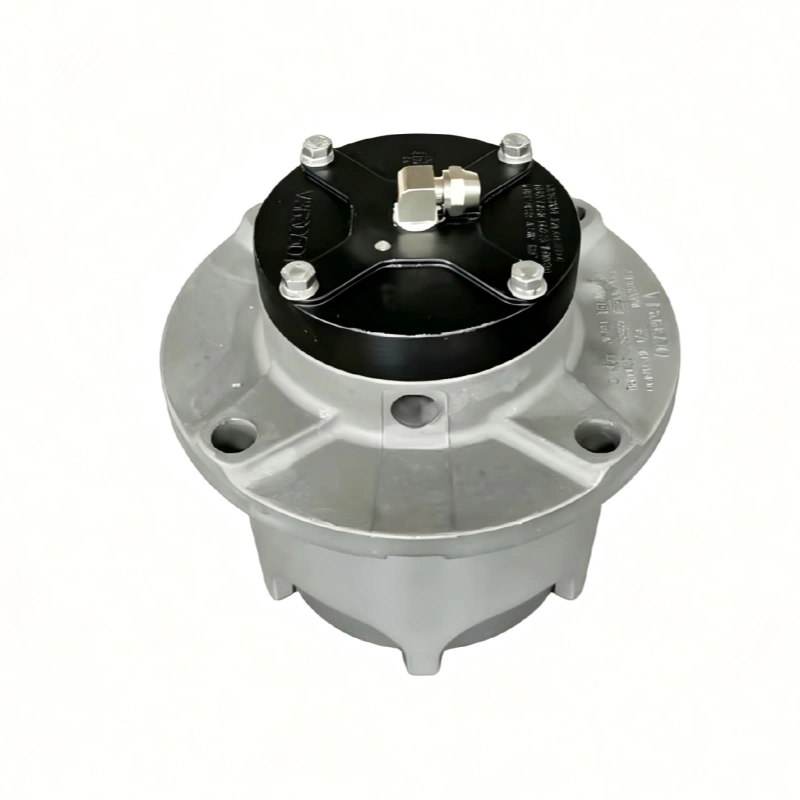

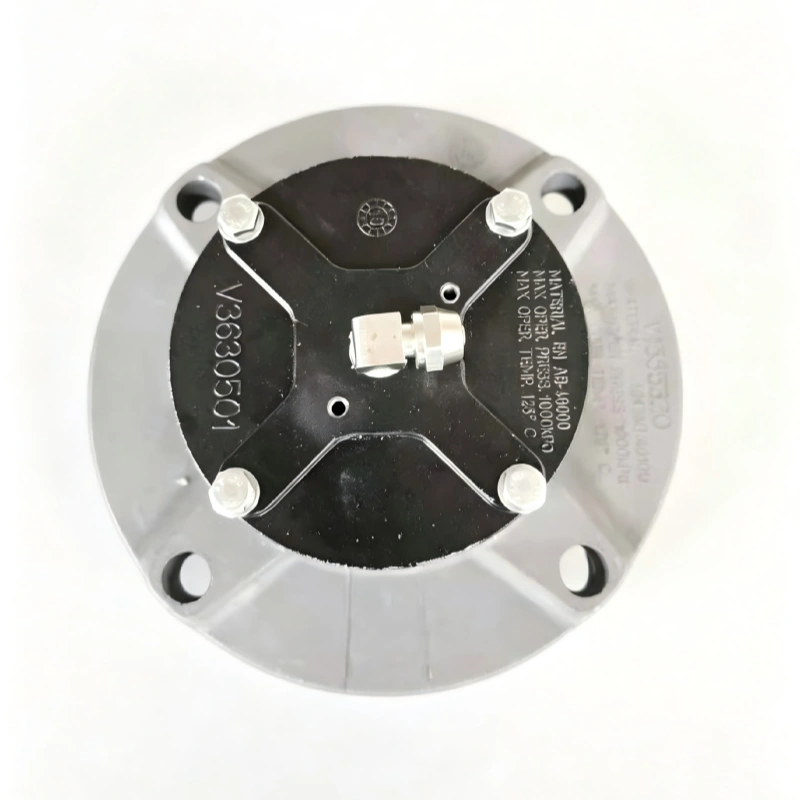

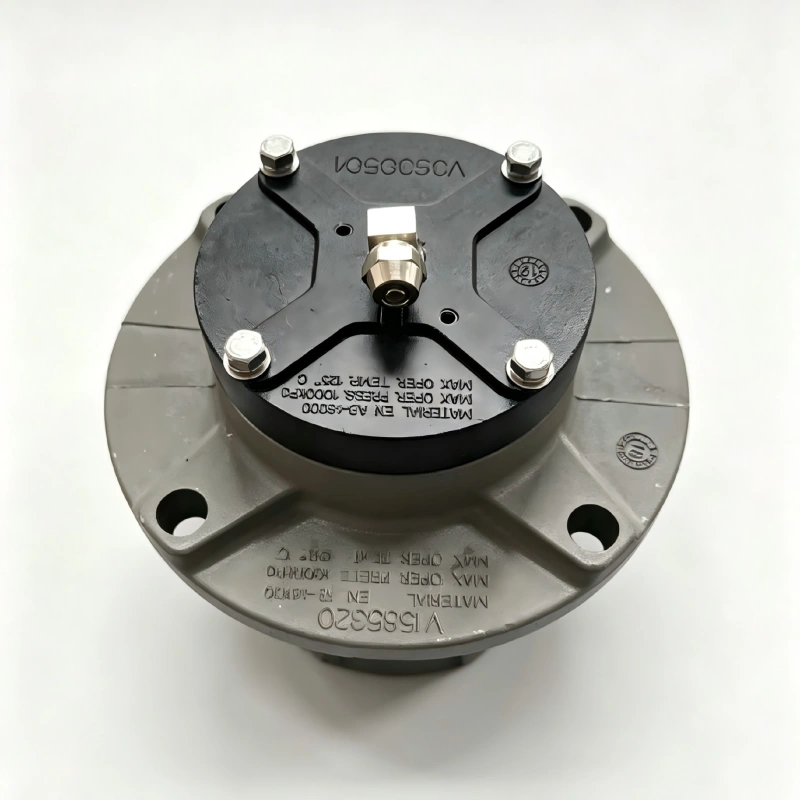

Alstom OPTIPOW105 Pulse Cleaning Valve V1617803-0800 (without solenoid, revolving 90° ), the compact pulse valve for the Optipuls fabric filters of different types.
• is a result of many years of experiences within the fabric filter technology area;
• is quick acting with high efficiency;
• has small dimensions, the figure after the name stands for the diameter of the plunge;
• is primarily designed to be used in combination with circular pressure tank;
• is easy to install and make service to;
• has a very robust design, designed for normal use at air pressure up to 600kpa(6 bar);
• normal max operating temperature(complete valve) 50°C.

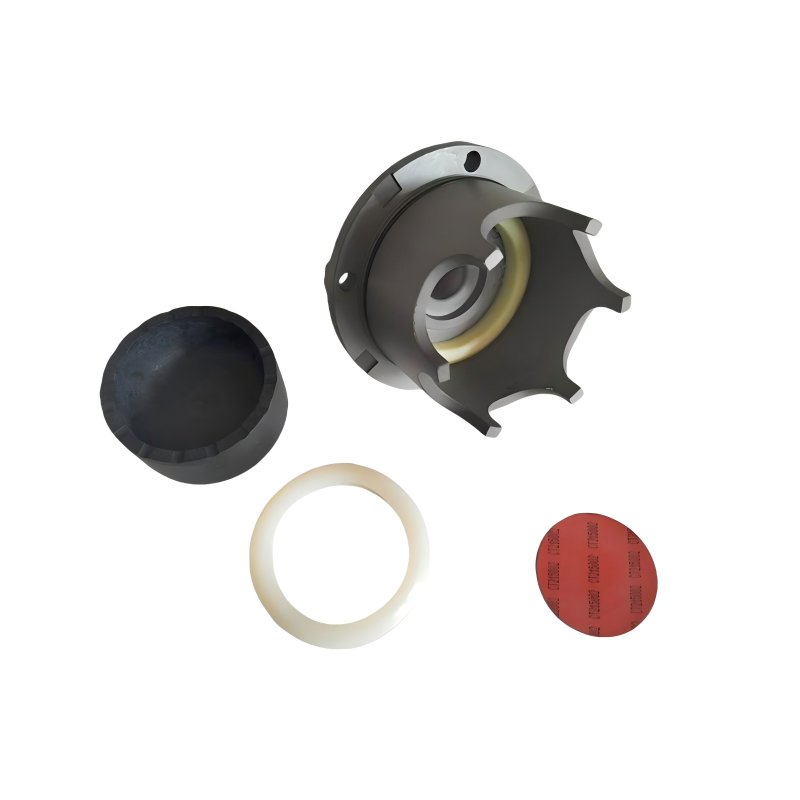

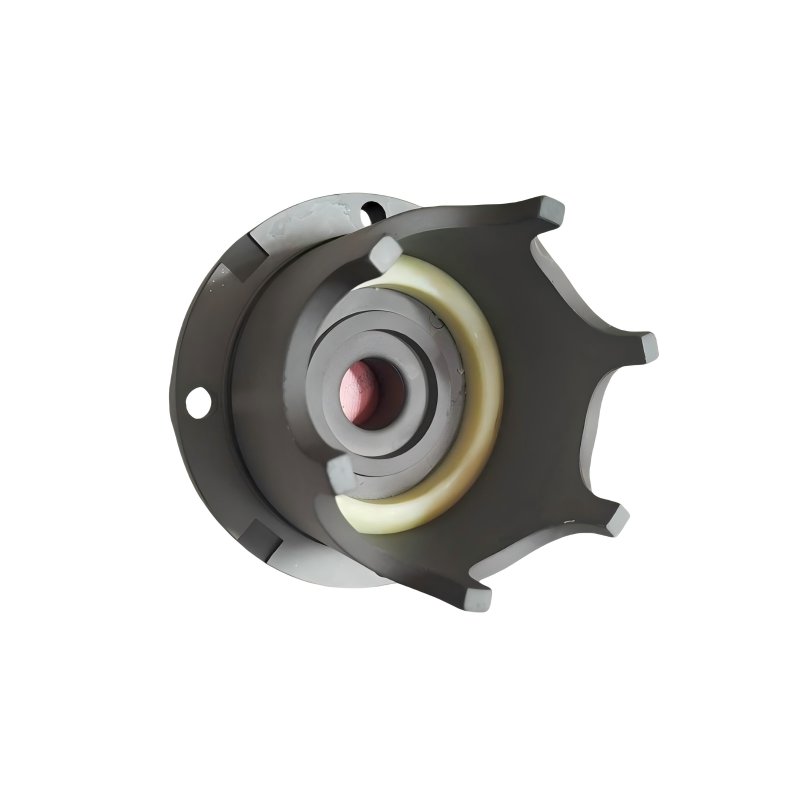

Main Parts of Optipow105 Alstom Valve
Function
Installation Size
What does V1617803-0800 mean?
The important point is the suffix:

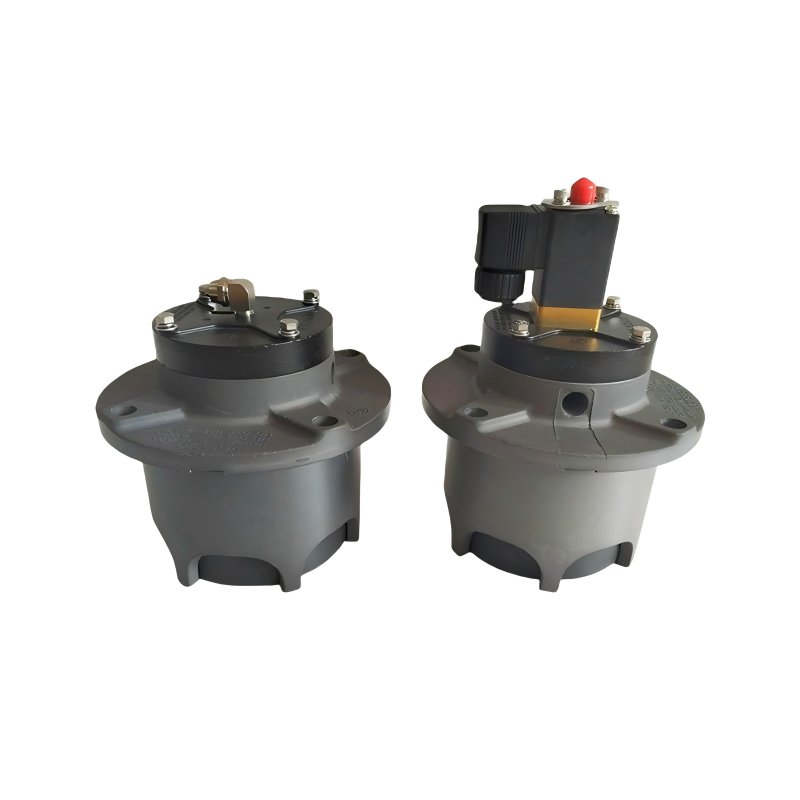

| Model | Description |
|---|---|
| V1617803-0100 | OPTIPOW 105, 24 VDC solenoid |
| V1617803-0200 | OPTIPOW 105, 110 V/60 Hz, 100 V/50–60 Hz |
| V1617803-0500 | OPTIPOW 105, 220 V/50 Hz |
| V1617803-0600 | OPTIPOW 105, 120 V/60 Hz, UL certified |
| V1617803-0800 | OPTIPOW 105 without solenoid, revolving 90° |

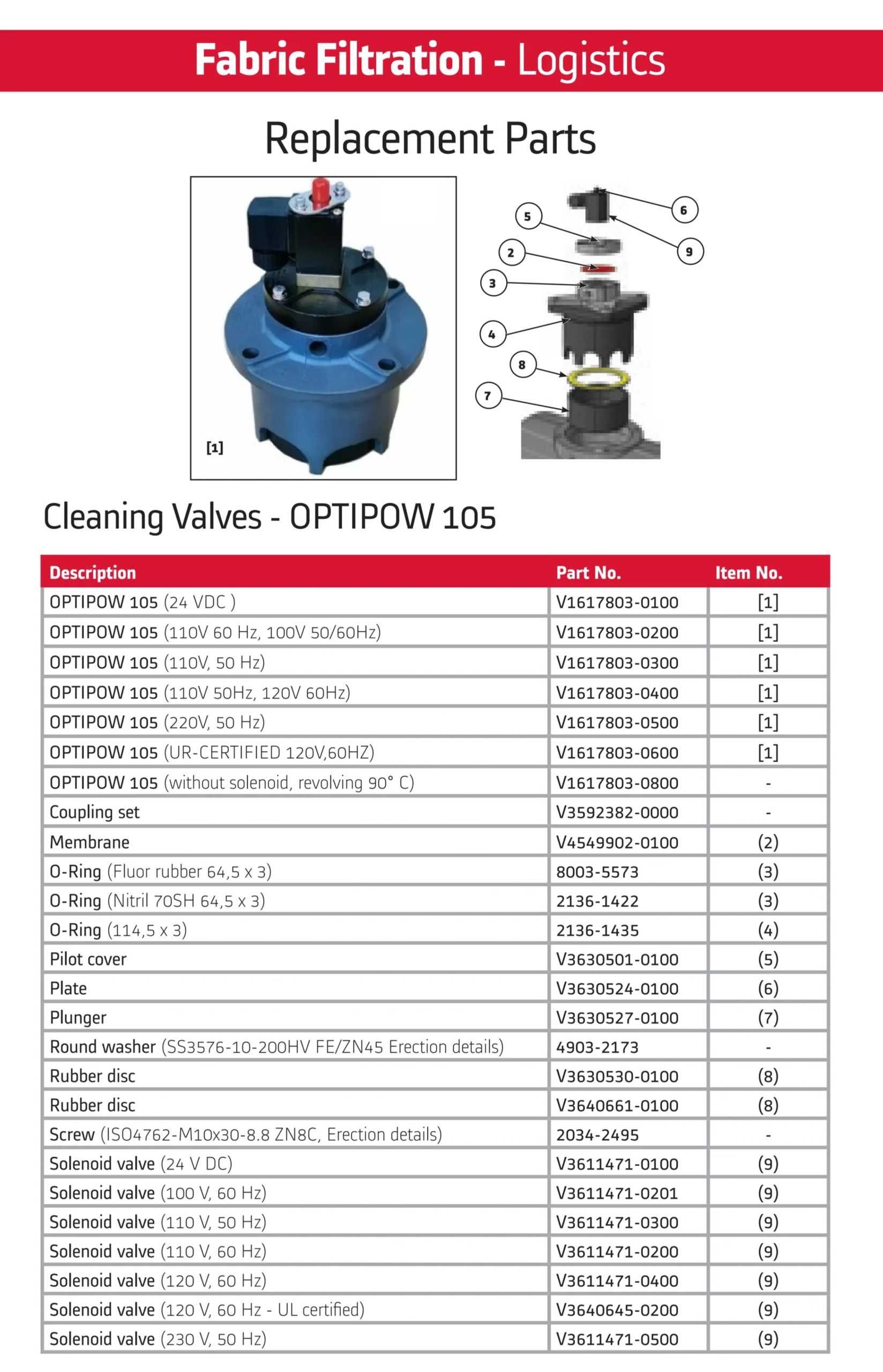

Alstom Optipow 105 Valve Model and Part List
