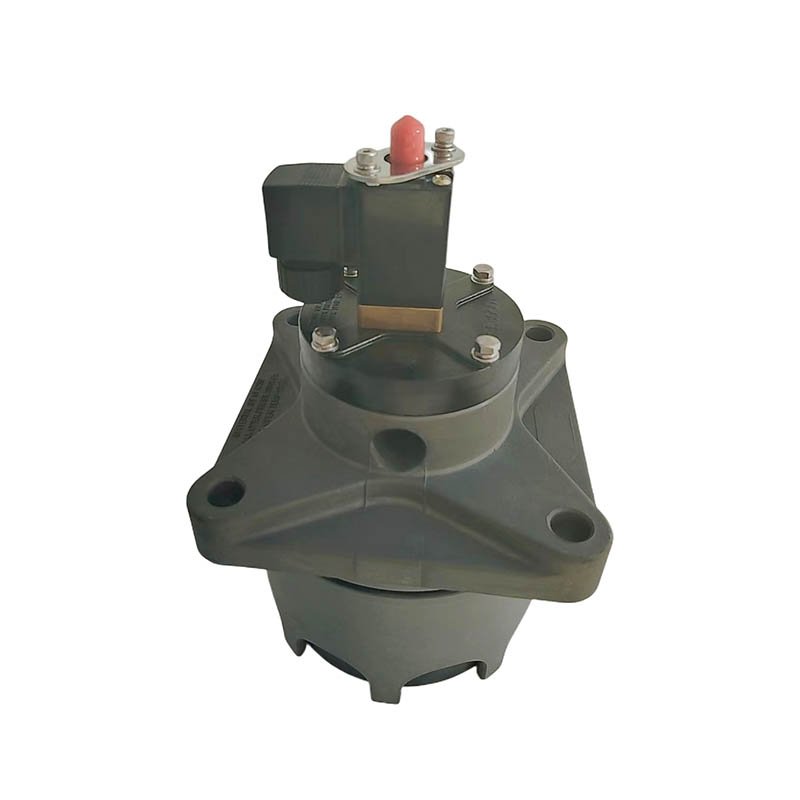

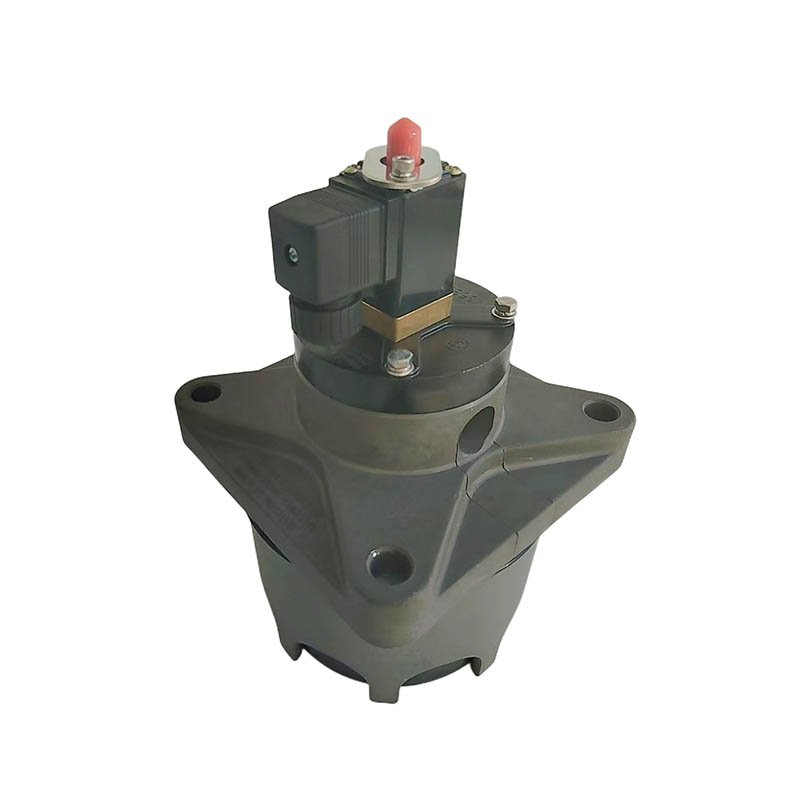

The Alstom OPTIPOW 135 V1614718-0100 is a heavy-duty, high-efficiency piston-type pulse jet valve designed for industrial dust collector baghouses (specifically Optipulse fabric filters). The number -0100 refers to the solenoid voltage of DC24V.
It acts as an automated release mechanism that sends powerful bursts of compressed air down pulse pipes to dislodge fly ash and particulate buildup from filter bags in power plants, cement factories, glass works, and industrial air purification systems.
Key Specifications & Identification
| Parameter | Specification |
| Manufacturer | Dustek (Alstom OEM Manufacturer) |
| Model / Plunger Diameter | OPTIPOW 135 (The number 135 designates a 135 mm plunger diameter) |
| Part Number | V1614718-0100 (Indicates standard 24V DC solenoid pilot configuration) |
| Nominal Diameter | 4 inch / DN100 |
| Operating Pressure | Normally up to 6 bar (< 600 kPa); static design limit 15 bar (1500 kPa) |
| Operating Temperature | -30 °C to +60 °C (ambient operating limit ~50 °C for solenoids/seals) |
| Actuation | Direct 24V DC Solenoid Pilot with membrane/plunger seal |
Working Principle
Different from conventional diaphragm pulse valves, this adopts a piston/plunger balanced pressure structure:
- It mounts directly onto circular compressed air headers (pressure tanks) of dust filters.
- Receives electrical signal from pulse controller → the 3/2-way pilot solenoid actuates → releases control air → main plunger opens instantly.
- Releases high-pressure compressed air pulse to blast dust off filter bags/cartridges.
Typical Applications
Bag filter dust removal systems in:
- Cement plant, Steel mill, Power plant
- Waste incineration, Metallurgy, Chemical industry
- Heavy-duty industrial flue gas dust collection

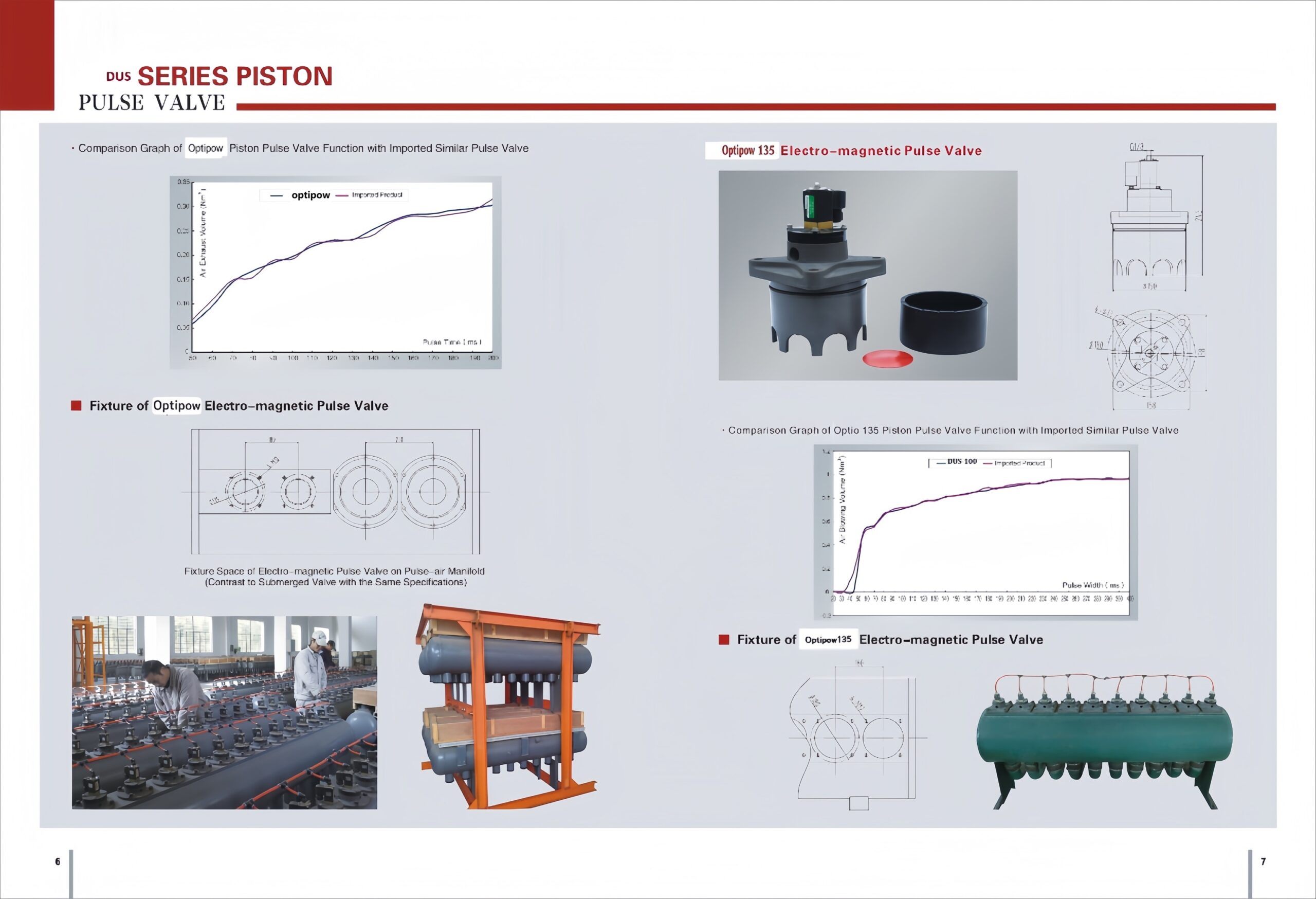

Main Dimension
