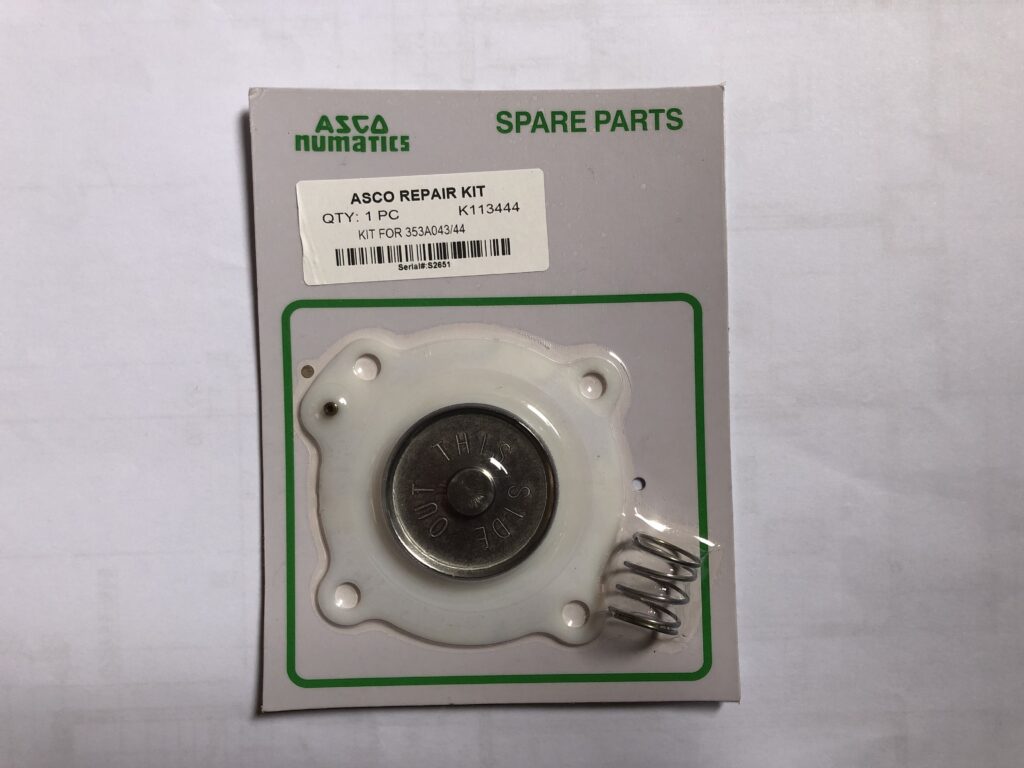

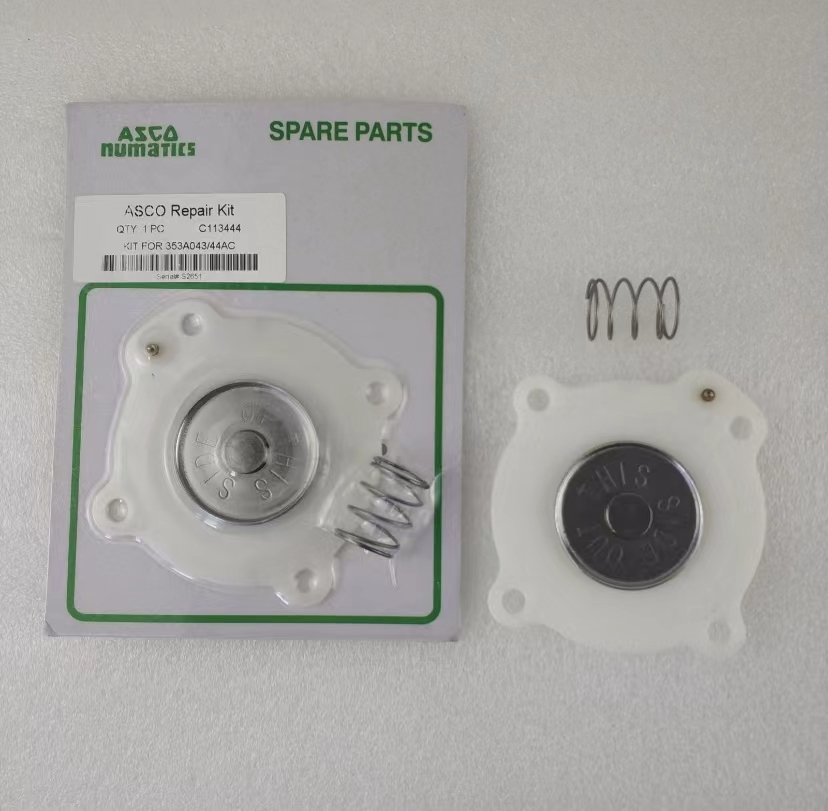

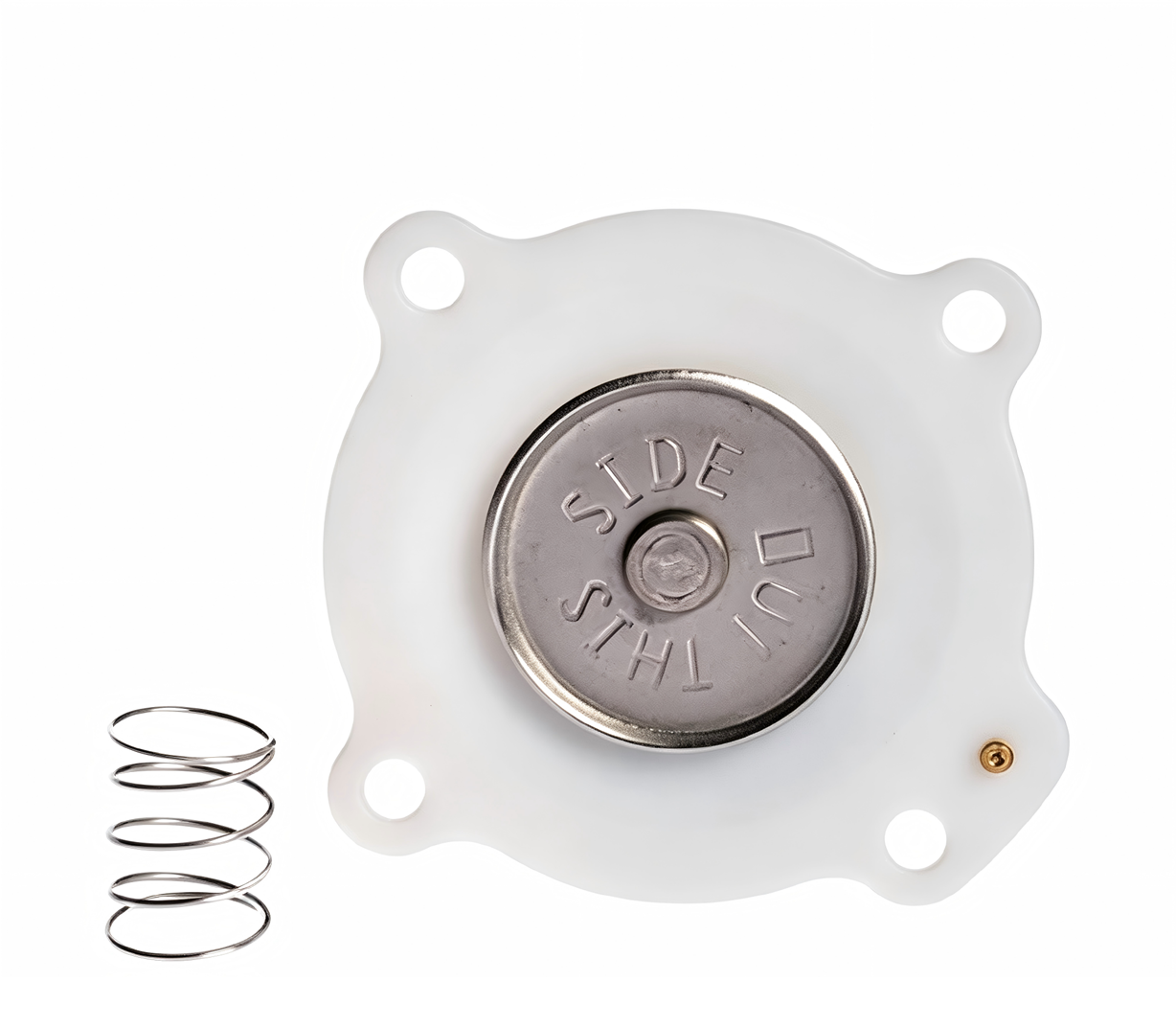

The C113444 ASCO Repair Kit is a replacement maintenance kit designed for ASCO Series 353 pulse jet valves, mainly used to repair dust collector pulse valves. It is commonly installed on ASCO SCG353A043 and SCG353A044 pulse valves to restore valve performance without replacing the complete valve assembly.
Main Specifications
| Item | C113444 |
|---|---|
| Brand | ASCO |
| Part Number | C113444 |
| Type | Diaphragm / spare parts repair kit |
| Typical valve | SCG353A043, SCG353A044 |
| Valve size | 3/4inch, 1 inch |
| Diaphragm material | NBR / Viton |
| Application | Dust collectors / pulse-jet cleaning |
| Function | Repairs diaphragm and internal valve components |
Available Models of ASCO Membrane Kit
Membrane Code | ASCO Valve Code | Valve port size | Material |
C113443 | G353A041, G353A042 | 3/4” , 1” | TPE / NBR |
C113444 | SCG353A043, SCG353A044 | 3/4” , 1” | TPE / NBR |
C113825 | G353A045 | 1 1/2” | NBR / VITON |
C113826 | G353A046 | 1 1/2” | NBR / VITON |
C113827 | SCG353A047 | 1 1/2” | NBR / VITON |
C113685 | SCG353A050, SCG353A051, G353A048, G353A049 | 2” , 2 1/2” | NBR / VITON |
C113686 | |||
C113928 | SCEX353.060 | 3” | NBR / VITON |
