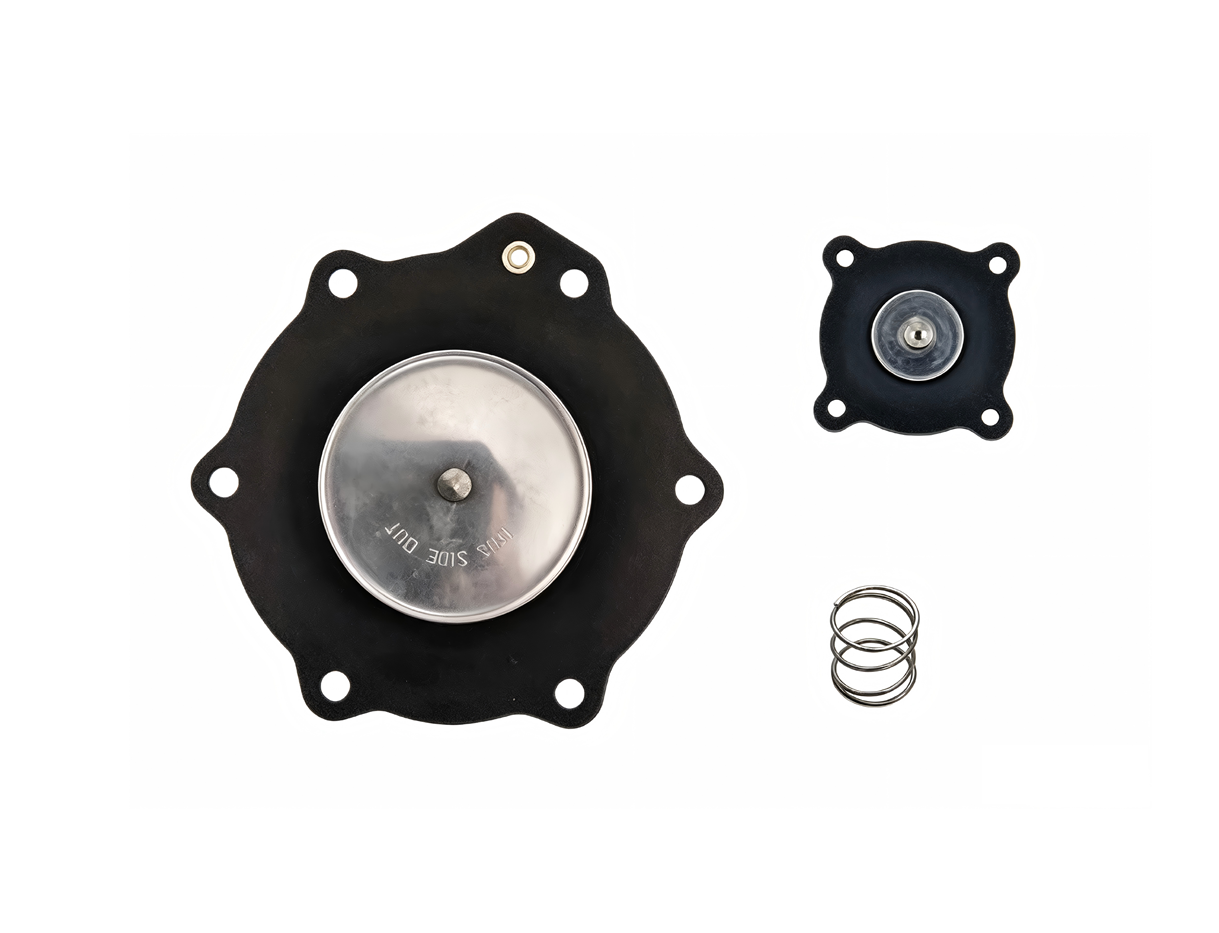

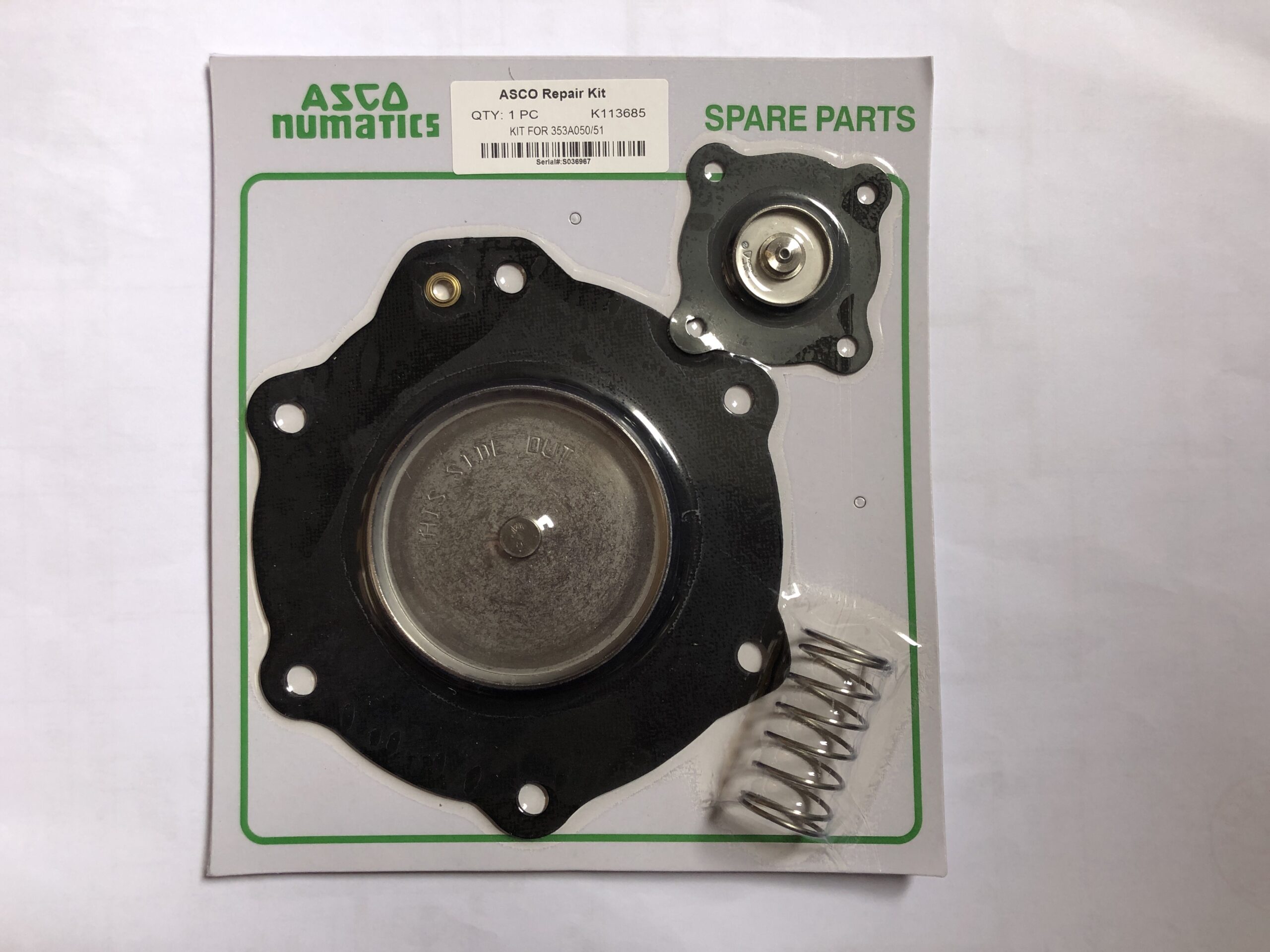

The C113685 ASCO Repair Kit is a replacement maintenance kit designed for ASCO Series 353 pulse jet valves used in industrial dust collector systems. It is mainly used to repair and rebuild pulse valves by replacing worn internal components, especially the diaphragm (membrane) and related sealing parts.
Main Specifications
| Item | C113685 |
|---|---|
| Brand | ASCO |
| Part Number | C113685 |
| Type | Diaphragm / spare parts repair kit |
| Typical valve | SCG353A050, SCG353A051 |
| Valve size | 2inch, 2½ inch |
| Diaphragm material | NBR / Viton |
| Application | Dust collectors / pulse-jet cleaning |
| Function | Repairs diaphragm and internal valve components |
The C113685 diaphragm is commonly identified as NBR, although alternative diaphragm materials such as FKM/Viton may be available depending on the supplier and application.
