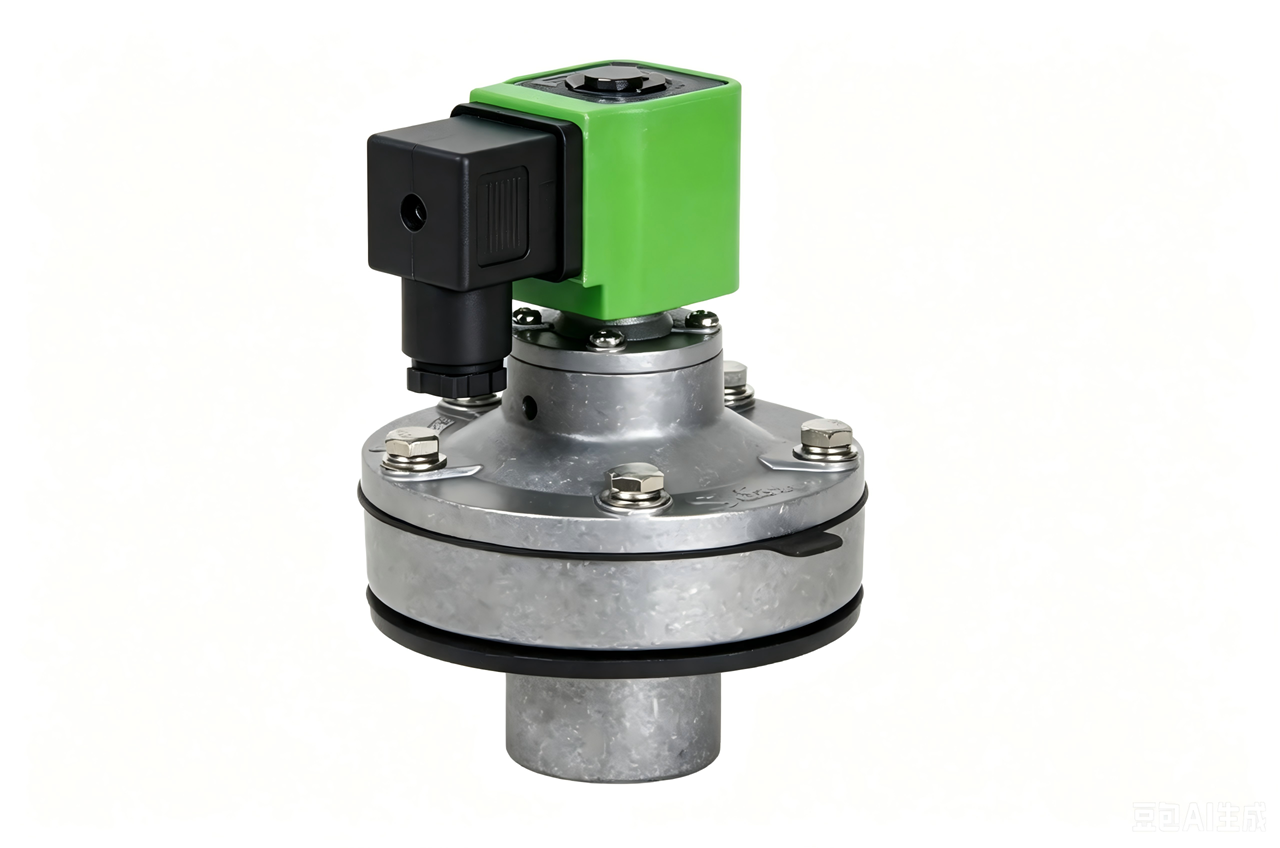

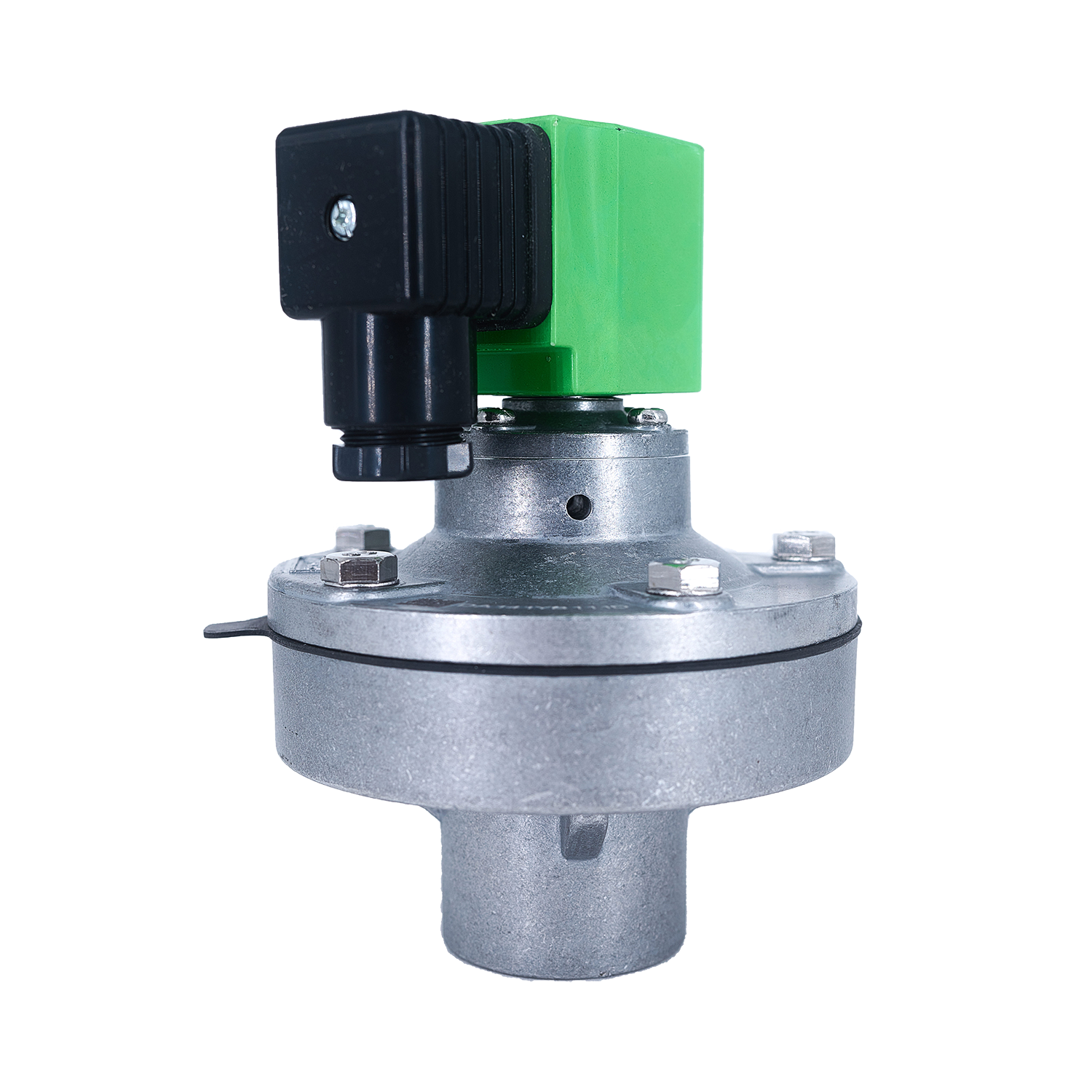

DMF-Y-25 pulse valve is a 1-inch embedded (tank mounted) pulse jet valve with threaded connection used in industrial dust collector systems to clean filter bags, cartridges, and other filtration media by releasing short bursts of compressed air. It is part of a reverse pulse jet cleaning system.
Main specifications of DMF-Y-25
| Parameter | Typical Specification |
|---|---|
| Valve type | Embedded pulse jet diaphragm valve |
| Port size | 1 inch (DN25 / G1″) |
| Diaphragm | Single diaphragm |
| Body material | Aluminum alloy |
| Working medium | Clean compressed air |
| Working pressure | About 0.1–0.8 MPa (15–120 psi) |
| Voltage options | 24V DC, 110V AC, 220V AC |
| Cleaning area | Approx. 8–10 m² of filter area |
| Installation | Mounted directly on air manifold |

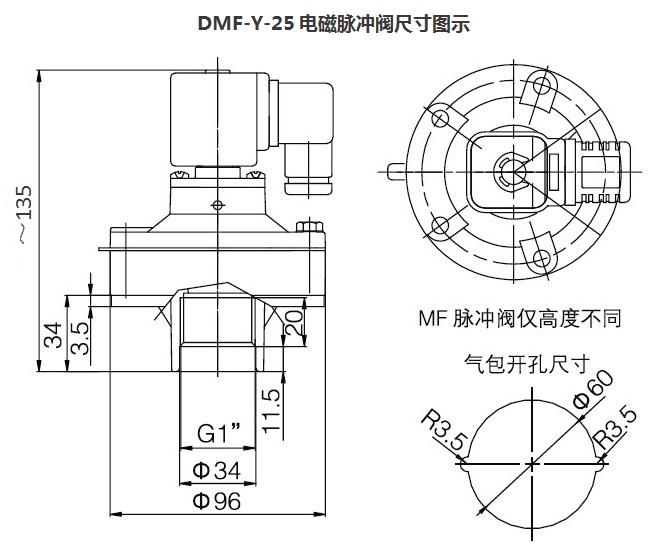

Main Dimension
