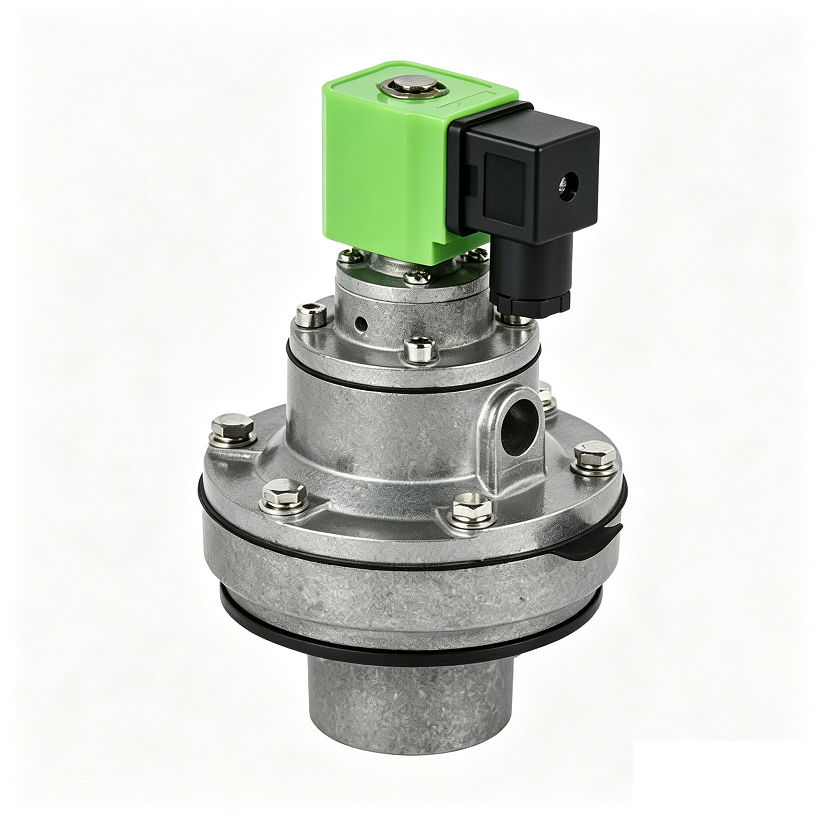

The DMF-Y-40S pulse valve is a 1-1/2 inch submerged (embedded) pulse jet valve with threaded connection used for dust collector filter cleaning systems. It is a diaphragm-type pulse valve that releases a short, powerful burst of compressed air to clean dust from filter bags or filter cartridges in industrial baghouse systems.
Main Specifications of DMF-Y-40S
| Parameter | Specification |
|---|---|
| Valve Type | Submerged (tank mounted) |
| Application | Dust collector cleaning system |
| Port Size | 1-1/2 inch (G1-1/2″) |
| Nominal Diameter | DN40 |
| Diaphragm Type | Double diaphragm |
| Body Material | Aluminum alloy |
| Diaphragm Material | NBR (standard), Viton optional |
| Working Pressure | Approx. 0.1–0.8 MPa |
| Voltage Options | DC24V / AC110V / AC220V |
| Medium | Clean compressed air |
| Blowing Area | Approx. 12–16 m² |

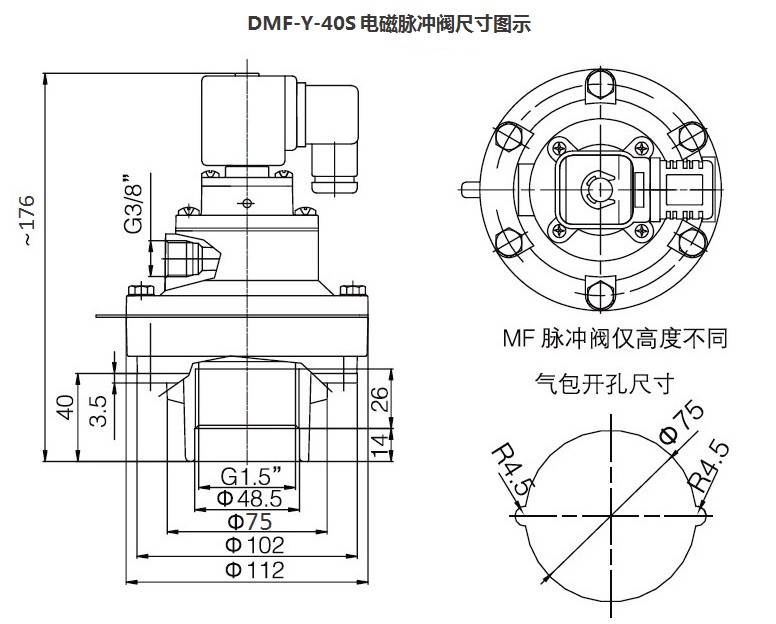

Main Dimension
