DMF-Y-50S pulse valve is a 2-inch embedded (tank mounted) electromagnetic pulse jet valve used in industrial dust collector systems. It is designed to release a high-speed compressed air pulse to clean dust from filter bags or filter cartridges in a baghouse dust collector.
Main Specifications of DMF-Y-50S
| Parameter | Specification |
|---|---|
| Valve Type | Submerged electromagnetic pulse valve |
| Application | Dust collector filter cleaning |
| Port Size | 2 inch (G2″) |
| Nominal Diameter | 50 mm |
| Diaphragm Type | Double diaphragm |
| Working Pressure | 0.1–0.8 MPa (typical) |
| Recommended Pressure | 0.2–0.6 MPa |
| Voltage Options | DC24V / AC110V / AC220V |
| Body Material | Aluminum alloy |
| Medium | Clean compressed air |
| Blowing Area | Approx. 18–28 m² |

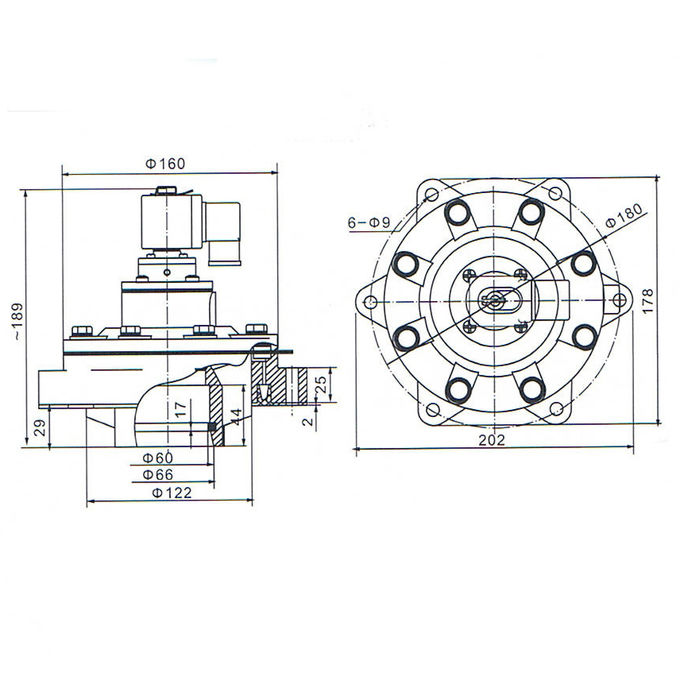

Main Dimension
