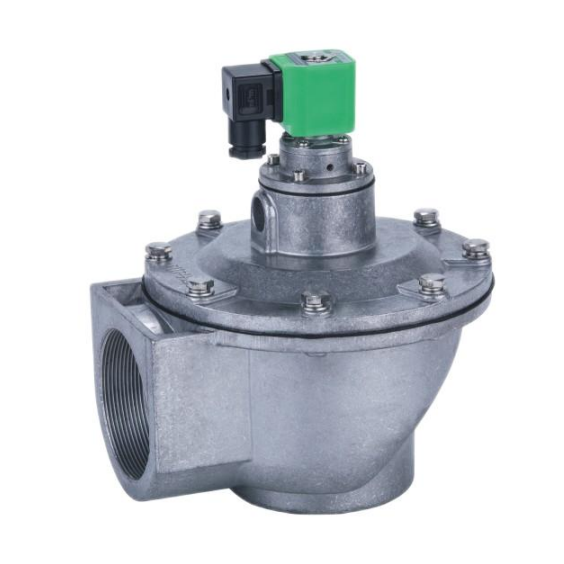

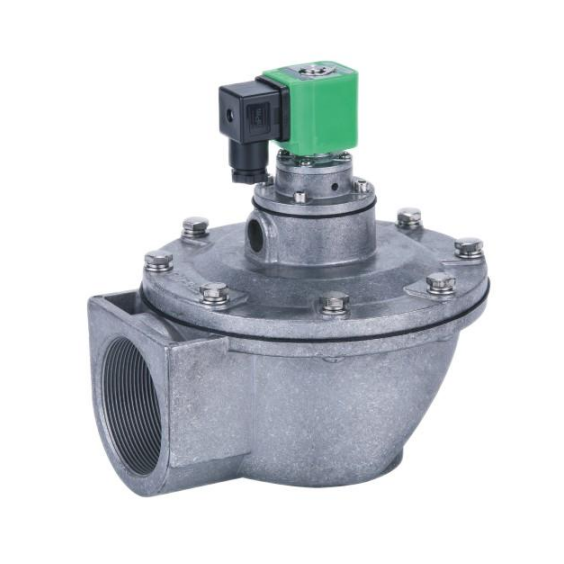

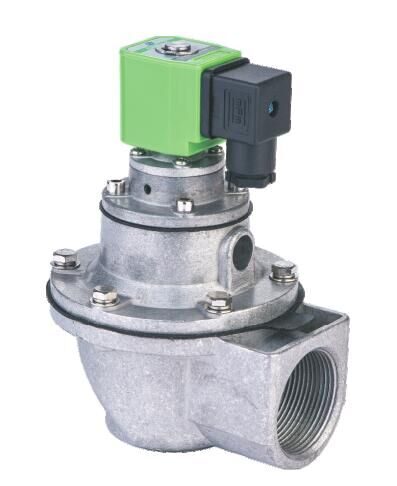

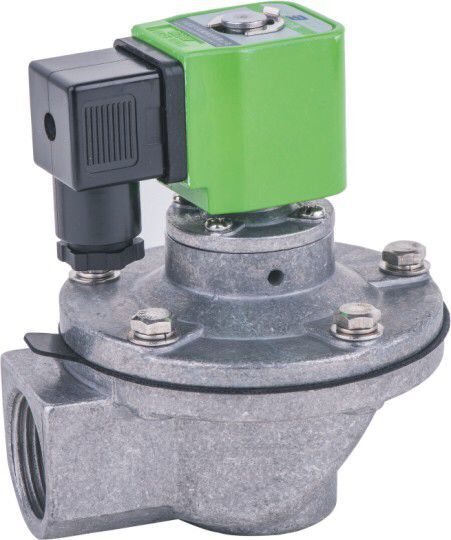

DMF-Z Threaded Pulse Valve

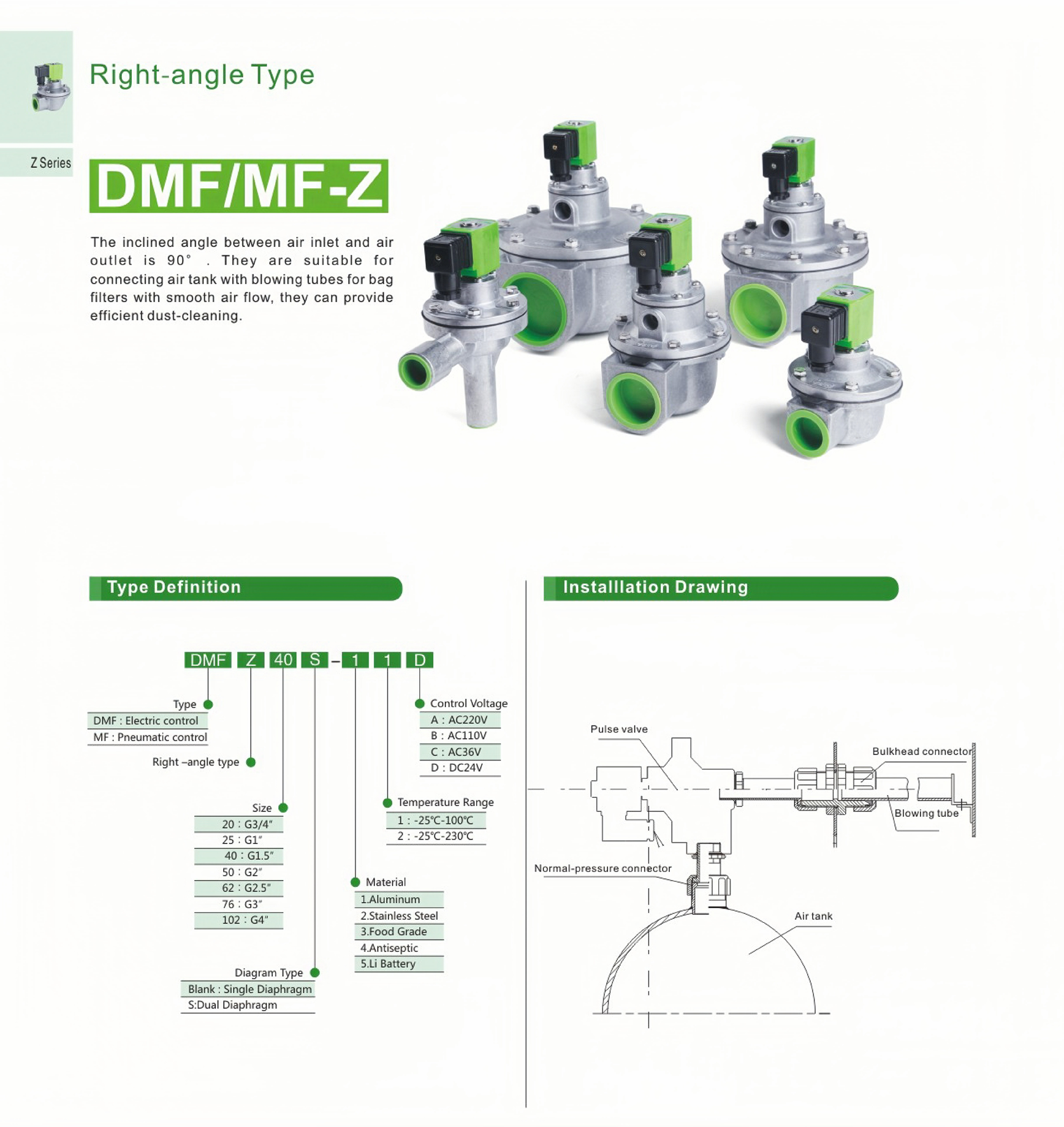

The inclined angle between air inlet and air outlet is 90°. The inlet and outlet are threaded ports. They are suitable for connecting air tank with blow pipe for bag filters with smooth air flow and they can provide efficient dust-cleaning.

Model	Size	KV	CV	Diaphragm
DMF-Z-20	G¾″	17.55	20.48	Single
DMF-Z-25	G1″	26.16	30.53	Single
DMF-Z-40S	G1½″	45.82	53.47	Double
DMF-Z-50S	G2″	61.24	71.47	Double
DMF-Z-62S	G2½″	129.26	150.85	Double
DMF-Z-76S	G3″	159.95	186.66	Double
DMF-Z-102S	G4″	188.65	215.87	Double

Product Description

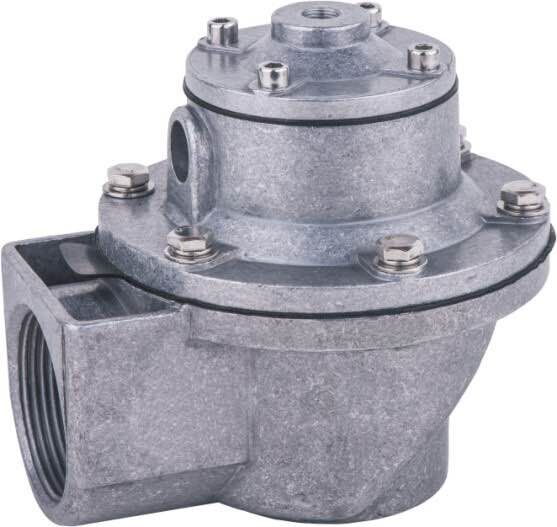

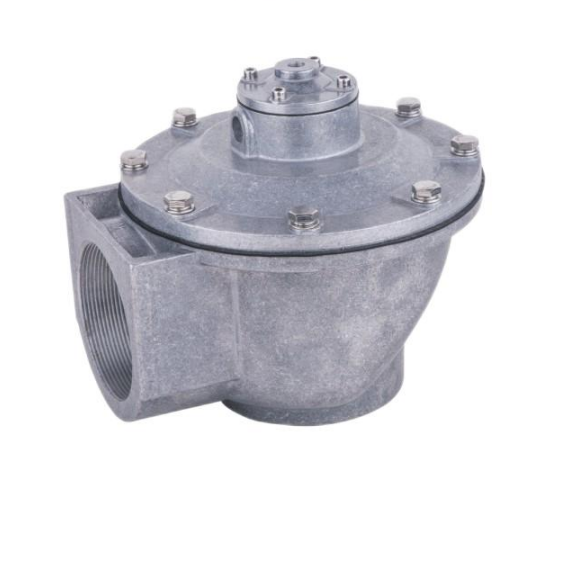

The DMF-Z Series is a range of diaphragm pulse valves suitable for dust collector applications, in particular for reverse pulse-jet filter cleaning of filter bags, cartridges, envelope filters, ceramic filters and sintered metal fiber filters. The DMF-Z Series valve has the inlet port at 90° to the outlet port. The DMF-Z Series range comprises 7 models, from ¾″ to 2½″, all with threaded female Gas connections. The ¾″ and 1″ model is in single diaphragm design, while the 1½″, 2″ , 2½″ , 3″ and 4″ are all double diaphragm valves. The special design assures an extremely fast opening time, high flow rates and easy installation. The valves are constructed in die-casting aluminium and have an anodised protection treatment which protect them from corrosive and environmental agents. Bolts and screws are in stainless steel.

Structure & Working Principle

Made of die-cast aluminum alloy, the valve is equipped with a durable rubber diaphragm and fully encapsulated solenoid coil with IP65 protection. When no electric signal is applied, compressed air keeps the diaphragm sealed, and the valve stays closed. Once receiving an electric pulse signal, the pilot mechanism releases air pressure instantly, the diaphragm lifts, and high-pressure air sprays out to clean filter bags. After the signal disappears, the valve automatically resets and closes.

Main Technical Parameters

Item	Specification
Model	DMF-Z-20, DMF-Z-25, DMF-Z-40S, DMF-Z-50S, DMF-Z-62S, DMF-Z-76S, DMF-Z-102S
Nominal Pressure	0.1–0.8 MPa
Working Voltage	AC220V, DC24V (common options)
Operating Temperature	-25℃ ~ +80℃
Diaphragm Material	Nitrile rubber (NBR) or Viton Rubber
Connection Type	Internal thread

Features

Compact structure and stable performance, suitable for long-term frequent operation.
Internal thread connection ensures tight sealing and firm installation.
Low air resistance, strong pulse blowing force and high cleaning efficiency.
Dustproof and waterproof design, adaptable to harsh industrial environments.

Application

It is extensively applied in pulse jet bag dust collectors, cartridge dust collectors and other industrial dust removal systems for cement, metallurgy, chemical, power, building materials and other industries.

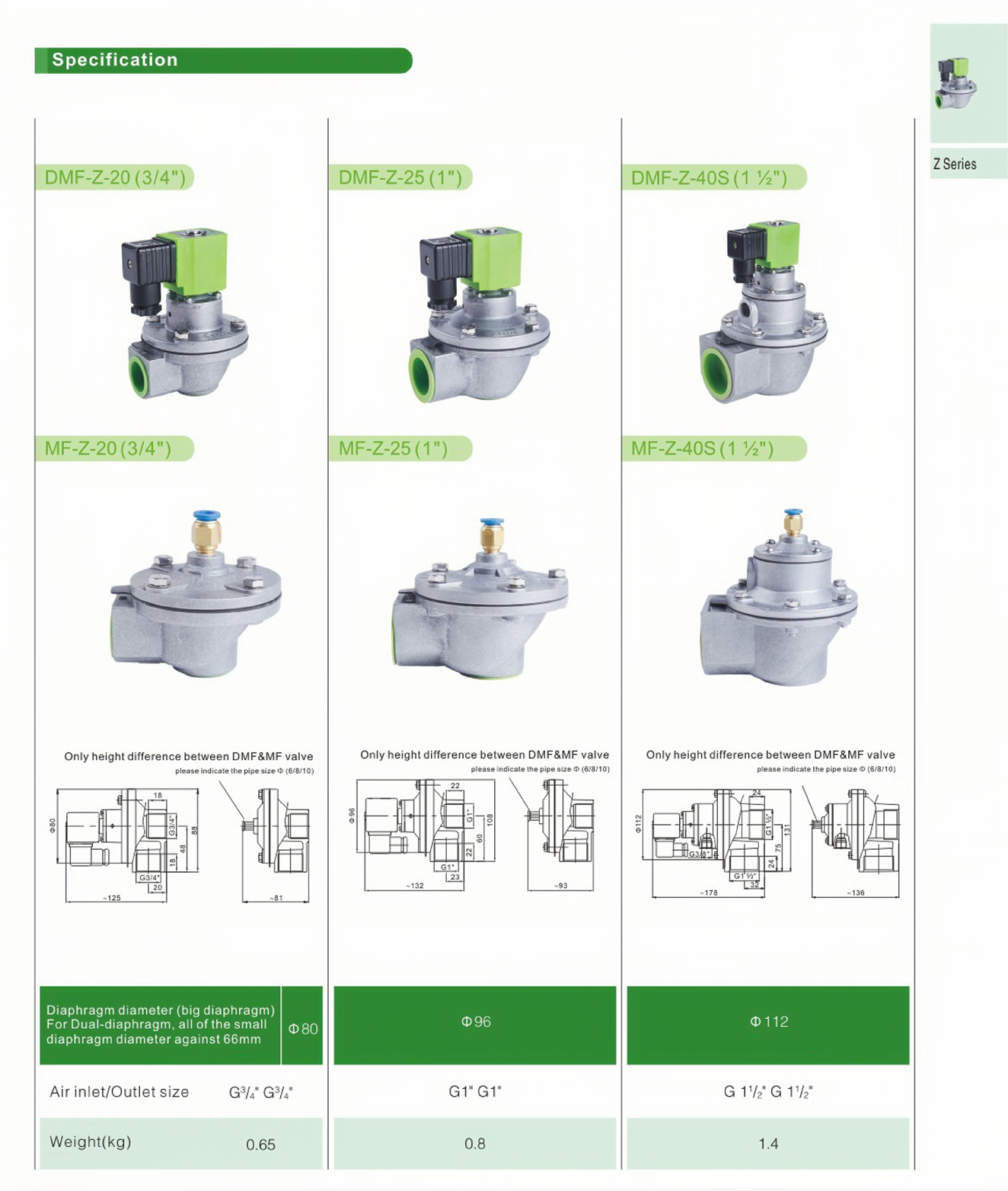

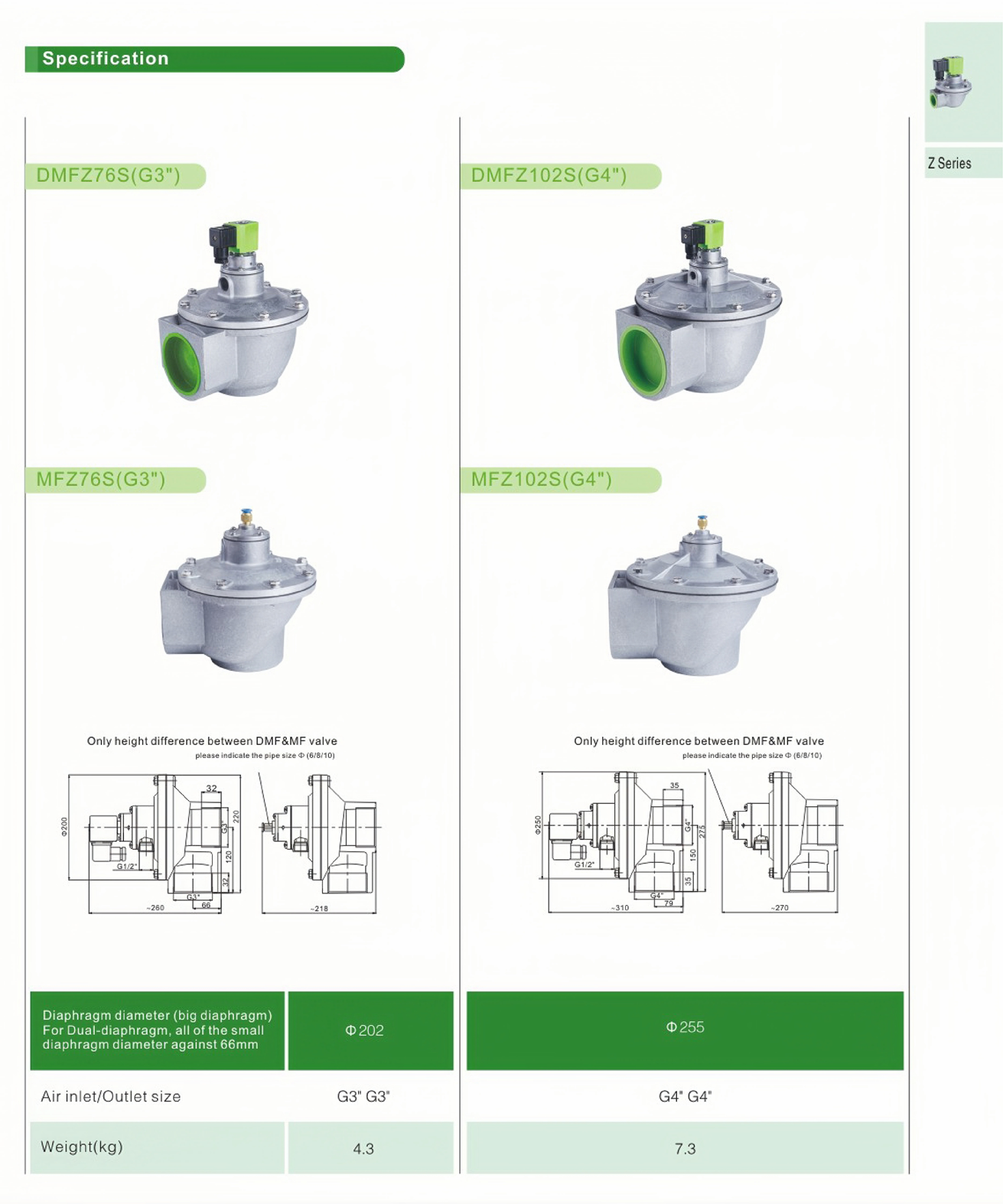

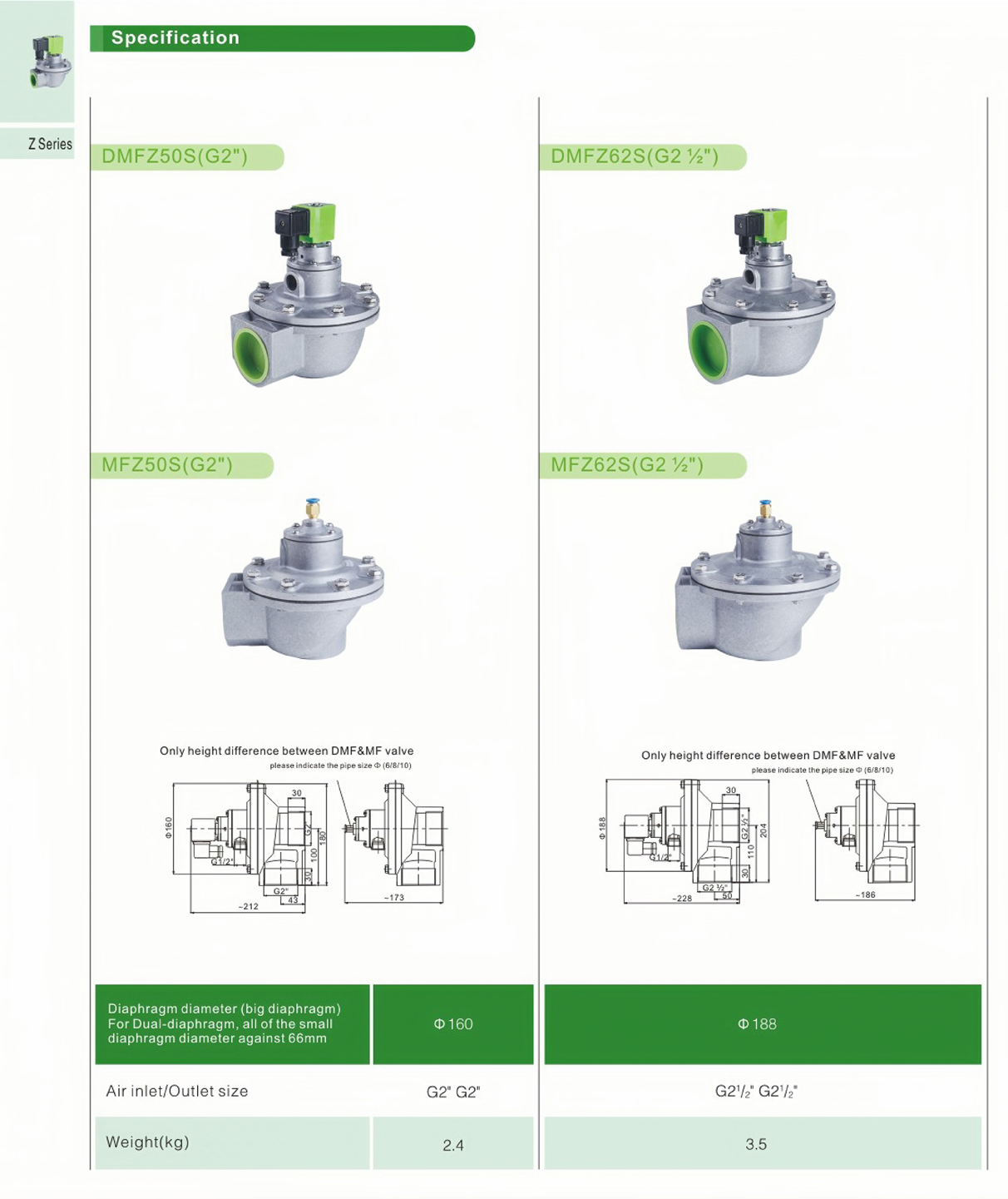

Pulse Valve Technical Specifications

Precautions before installation of right-angle pulse valve

▼ Clean the interior of the air tank and pipeline to prevent dirt from blocking the damping or exhaust holes;
▼ Check whether the thread size of the blowpipe matches the thread size of the valve installation port; the thread size should be standard pipe thread.
▼ Ensure that the power supply has been cut off and there is no internal pressure in the gas bag;
▼ Pay attention to the direction of the inlet and outlet of the right-angle electromagnetic pulse valve before installation;
