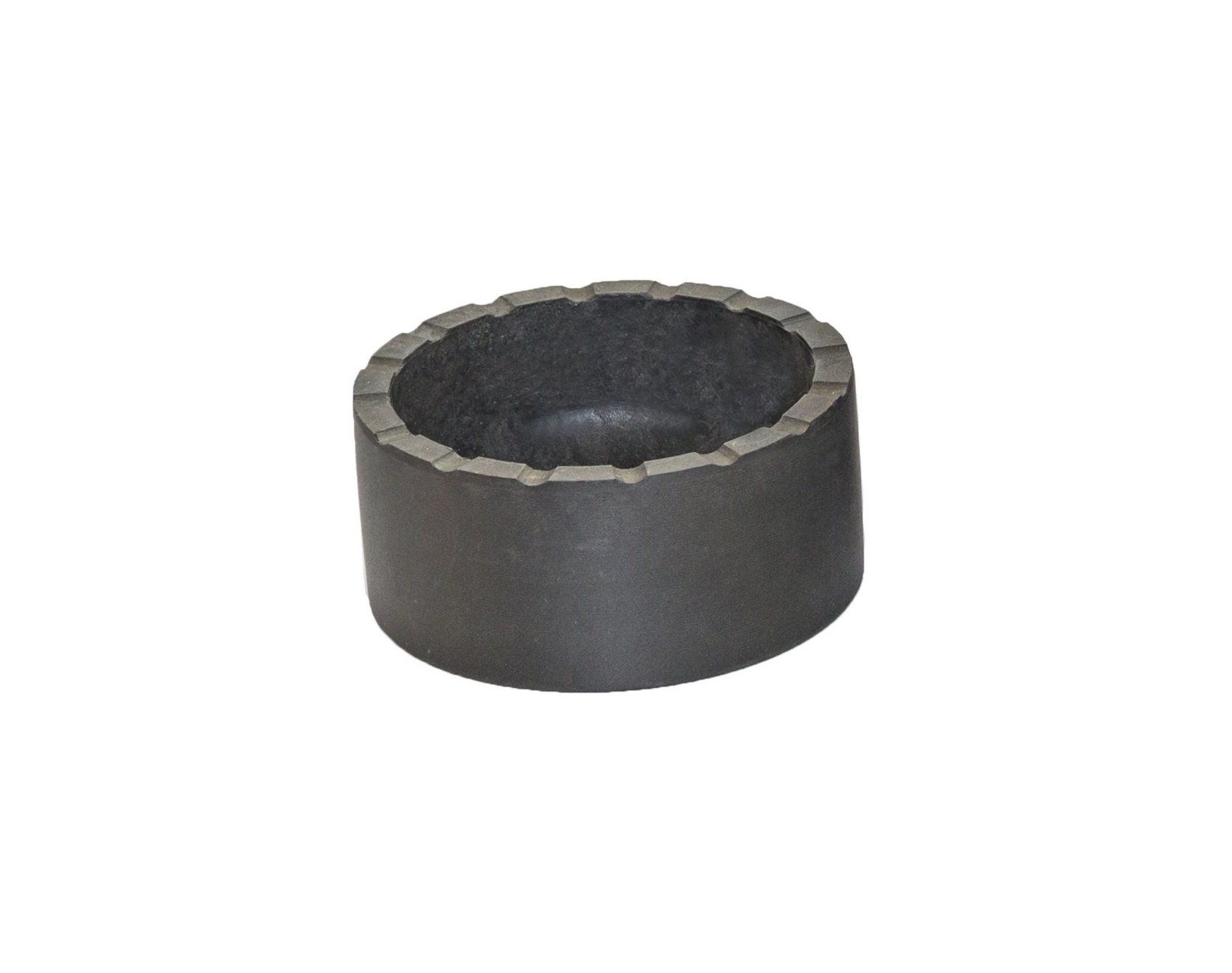

The Optipow 105 Plunger V3630527-0100 is a moving piston/plunger assembly used inside the Alstom OPTIPOW 105 pulse cleaning valve for industrial dust collector and fabric filter systems. It is a key internal moving component that controls the opening and closing of the compressed air flow during the filter cleaning pulse.

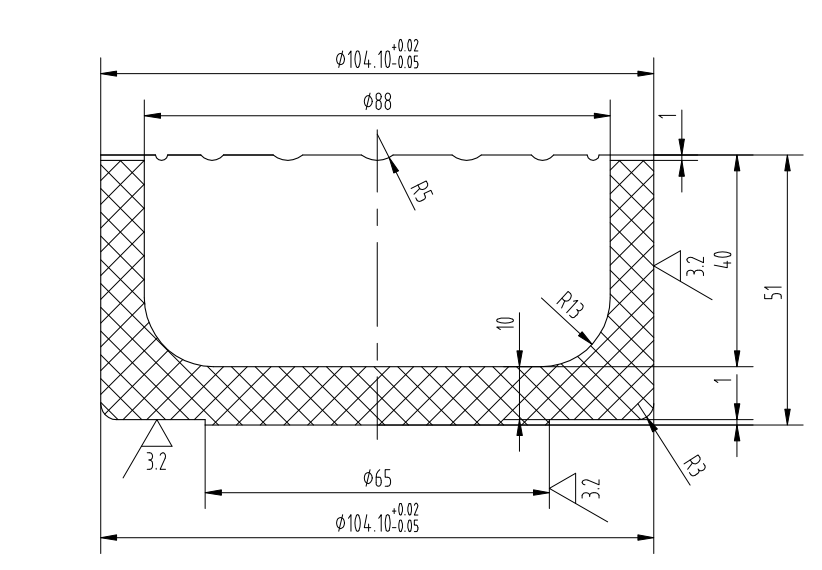

Optipow 105 Plunger V3630527-0100 Specifications
| Item | Description |
|---|---|
| Part Number | V3630527-0100 |
| Component | Plunger / Piston |
| Compatible Valve | Alstom OPTIPOW 105 |
| Valve Type | Piston-type pulse cleaning valve |
| Application | Dust collector / fabric filter cleaning |
| Position in Valve | Internal moving piston component |
| Related Valve Model | OPTIPOW 105 V1617803 series |
| Replacement Group | OPTIPOW 105 service spare parts |
Function of the V3630527-0100 Plunger

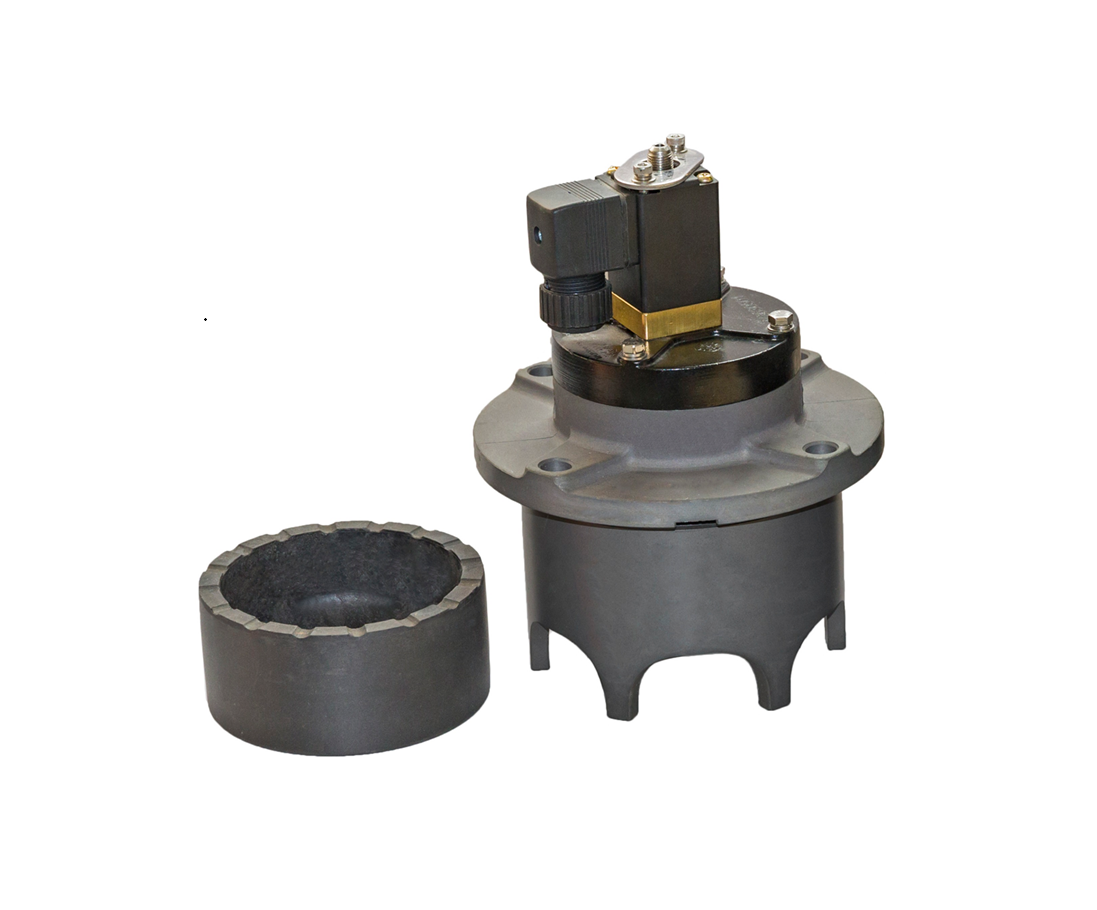

The plunger works together with the membrane, pilot cover, plate, and solenoid valve inside the OPTIPOW 105 valve. During a cleaning cycle:
- Standby condition
- The plunger remains sealed inside the valve body.
- Compressed air pressure is maintained in the air reservoir.
- Cleaning signal received
- The solenoid valve opens and releases pilot pressure.
- The pressure balance changes inside the valve chamber.
- Plunger movement
- The V3630527-0100 plunger moves rapidly to open the main air passage.
- A high-volume compressed air pulse is released.
- Filter cleaning
- The air blast removes dust from filter bags or filter cartridges.
- Reset
- The plunger returns to its sealing position for the next cleaning cycle.
