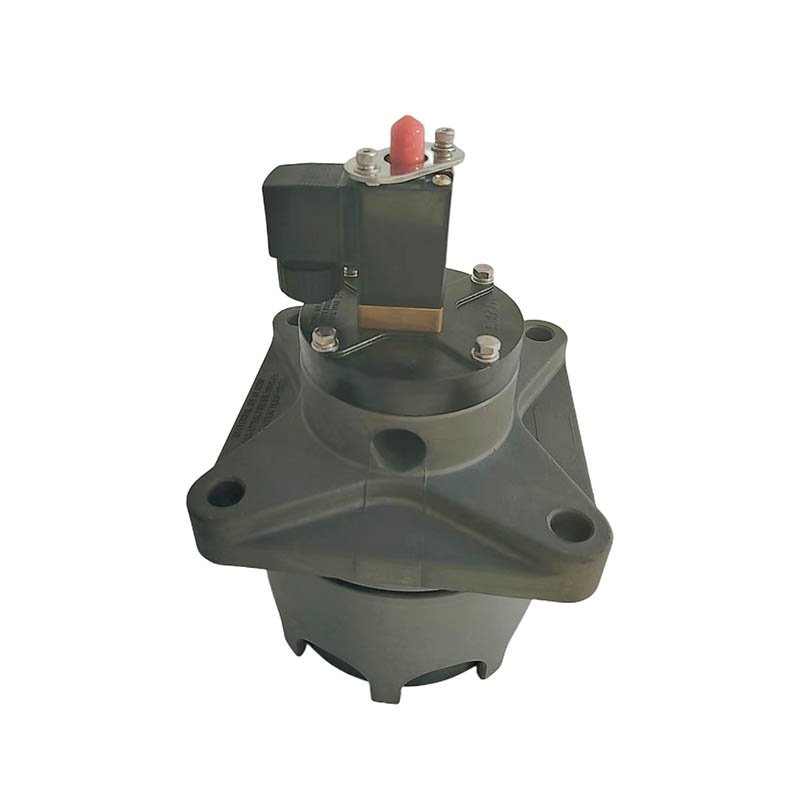

The Alstom Optipow 135 Air Cleaning Valve V1614718 is a high-performance 4-inch pulse cleaning valve designed for industrial dust collector systems, especially Optipulse fabric filters and baghouse dust collectors. It uses a compact piston/plunger-controlled design to provide a fast and powerful compressed air pulse for cleaning filter bags.
The OPTIPOW 135 series is widely used in demanding dust filtration applications such as power plants, cement plants, steel mills, and other industrial processes requiring efficient and reliable filter cleaning.
Key Features of Optipow 135 Air Cleaning Valve V1614718
• is a result of many years of experiences within the fabric filter technology area;
• is quick acting with high efficiency;
• has small dimensions, the figure after the name stands for the diameter of the plunge;
• is primarily designed to be used in combination with circular pressure tank;
• is easy to install and make service to;
• has a very robust design, designed for normal use at air pressure up to 600kpa(6 bar);
• normal max operating temperature(complete valve) 50°C.

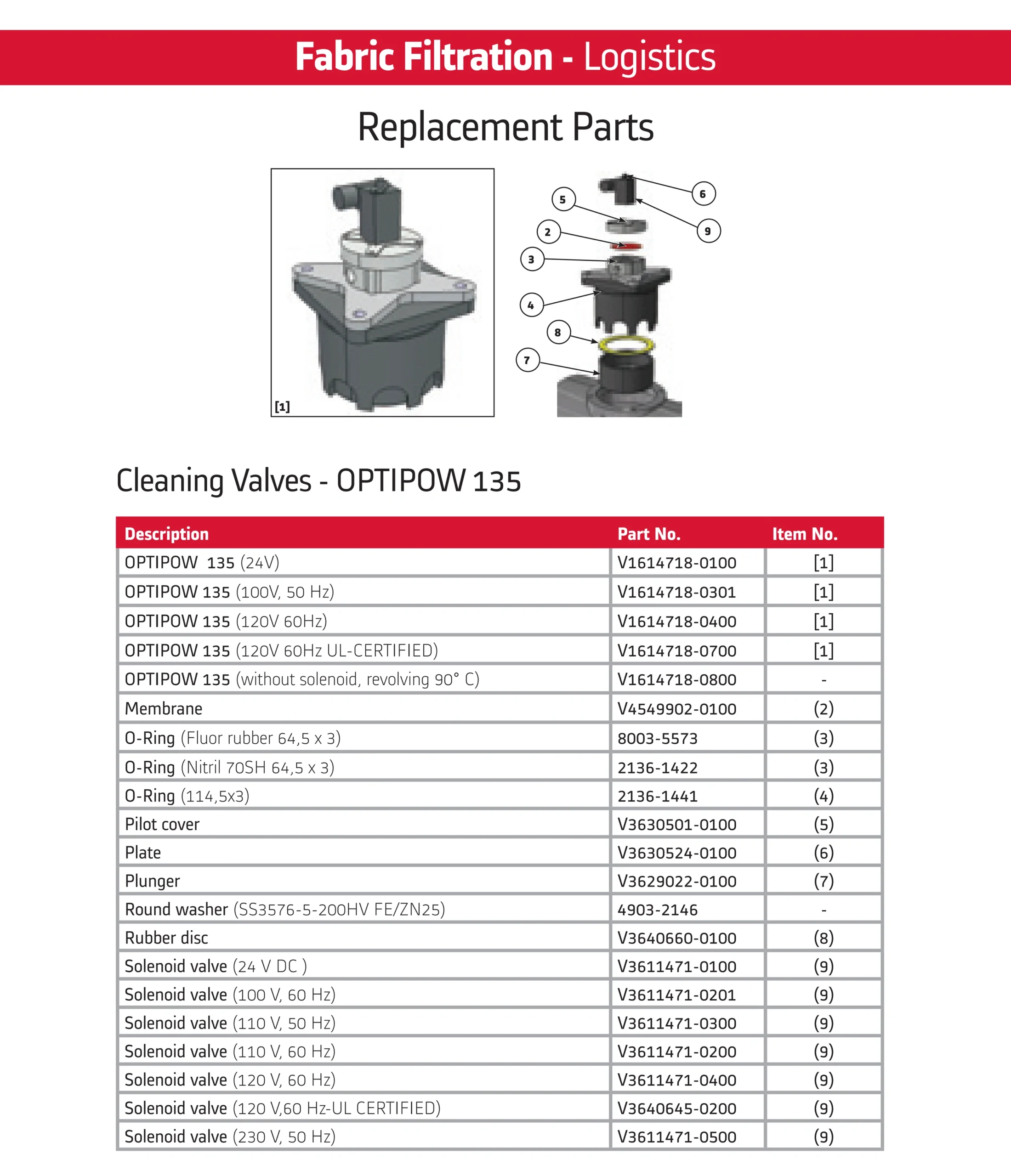

Main Parts of Optipow 135 Air Cleaning Valve V1614718
Main Dimension

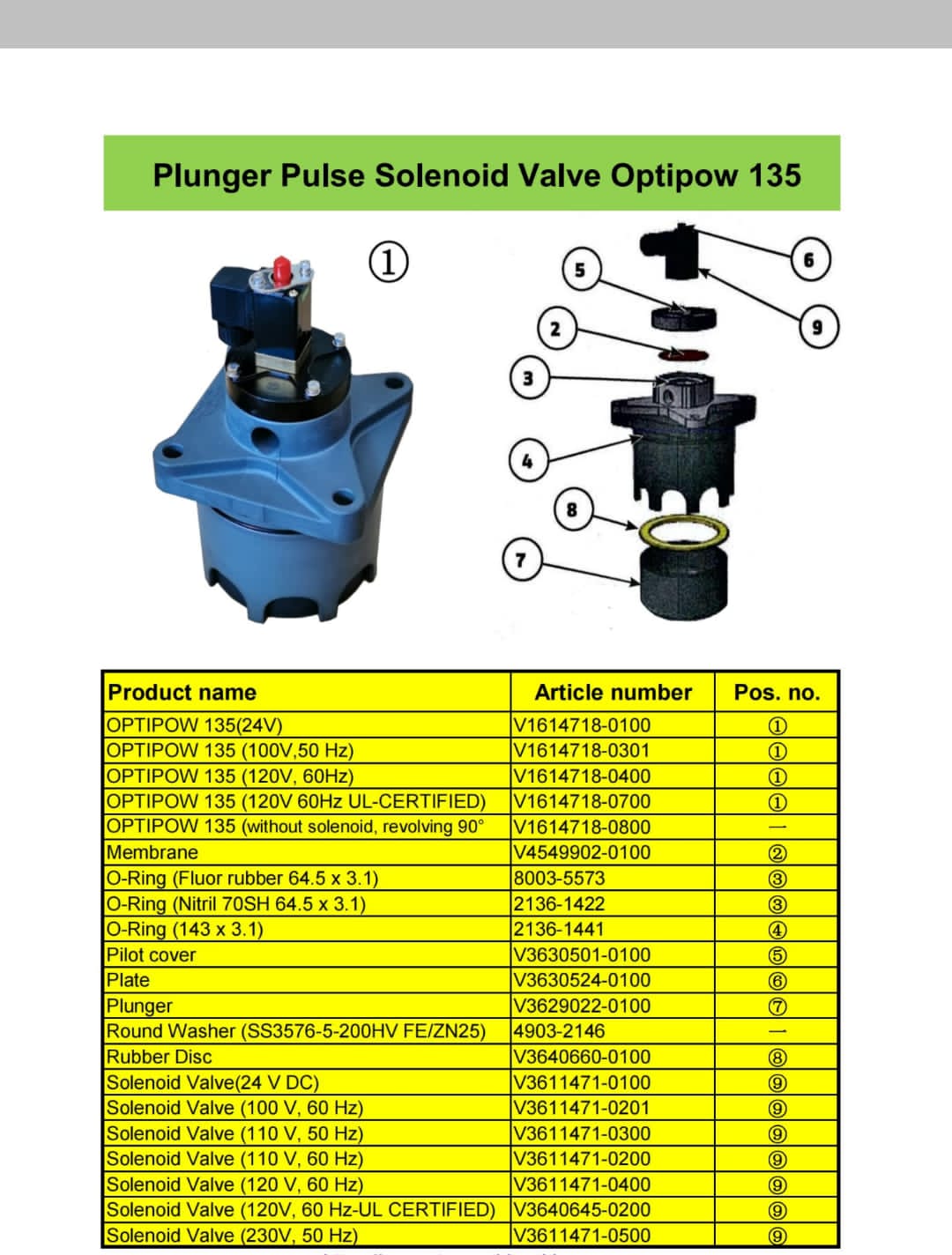

Product Exploded View
Advantages of Optipow 135 Valve
1. High Cleaning Energy
The large 135 mm piston provides:
- Strong air pulse output
- Effective cleaning of long filter bags
- Improved dust removal performance
2. Fast Response
The compact piston design allows:
- Quick opening
- Short pulse duration
- Efficient compressed air usage
This improves the overall efficiency of pulse jet cleaning systems.
3. Compact Design
Compared with conventional diaphragm valves:
- Smaller installation space
- Easy mounting on pressure tanks
- Convenient maintenance
The valve is designed mainly for use with circular pressure tanks in fabric filter systems.
4. Strong Industrial Reliability
The valve is designed for continuous operation in harsh environments:
- Power plants
- Cement plants
- Steel mills
- Waste treatment facilities
- Large industrial dust collectors
