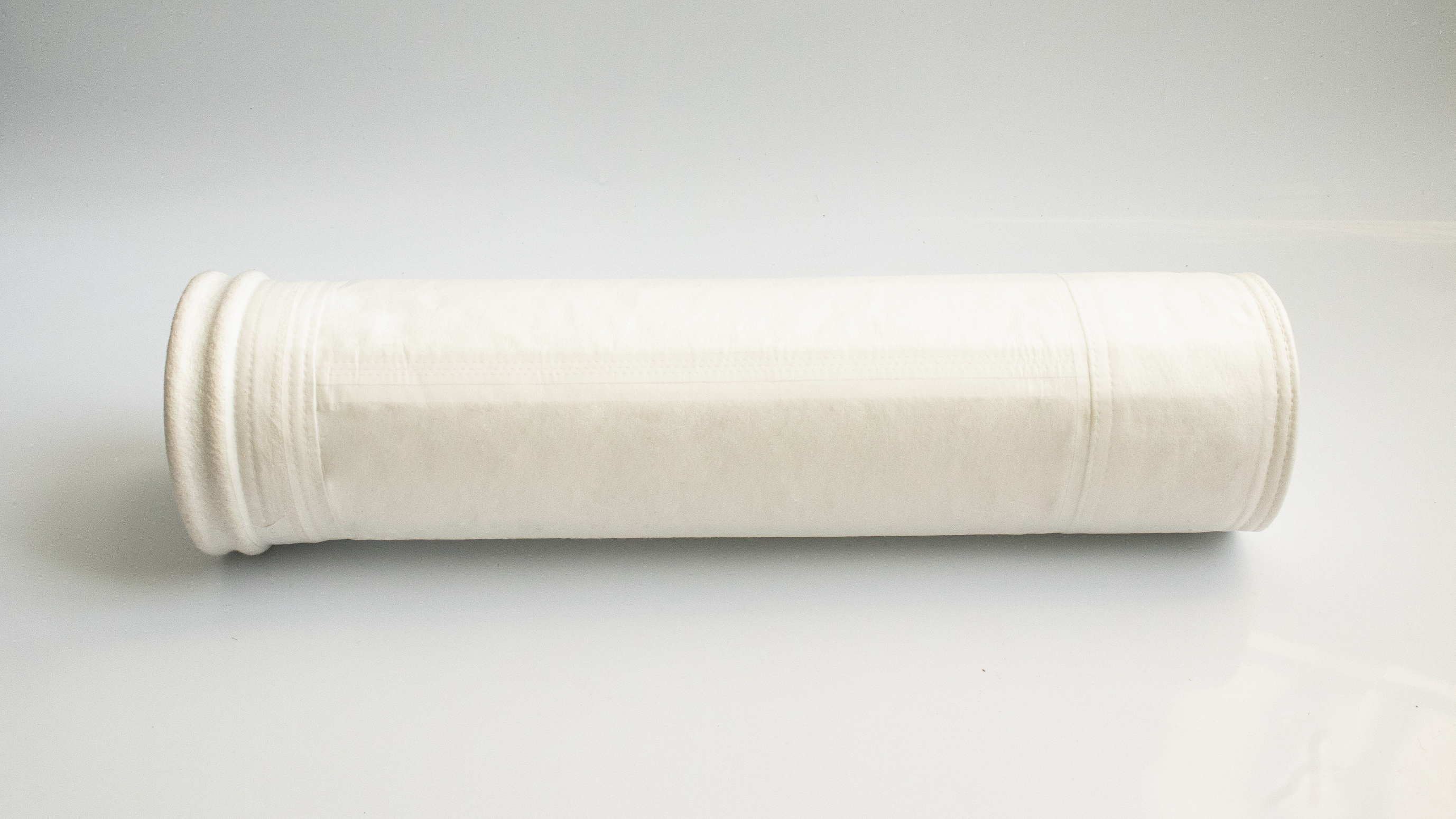

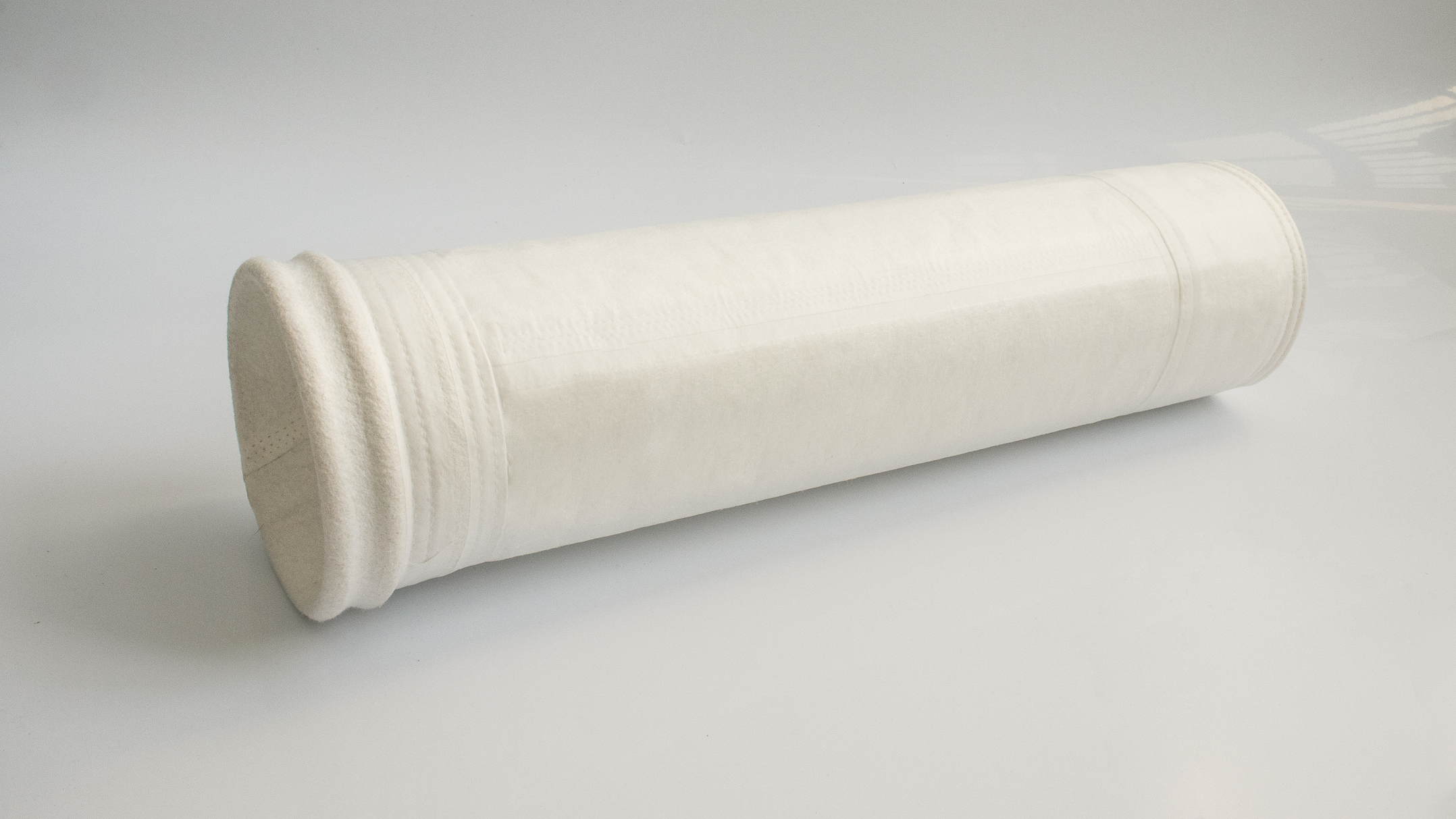

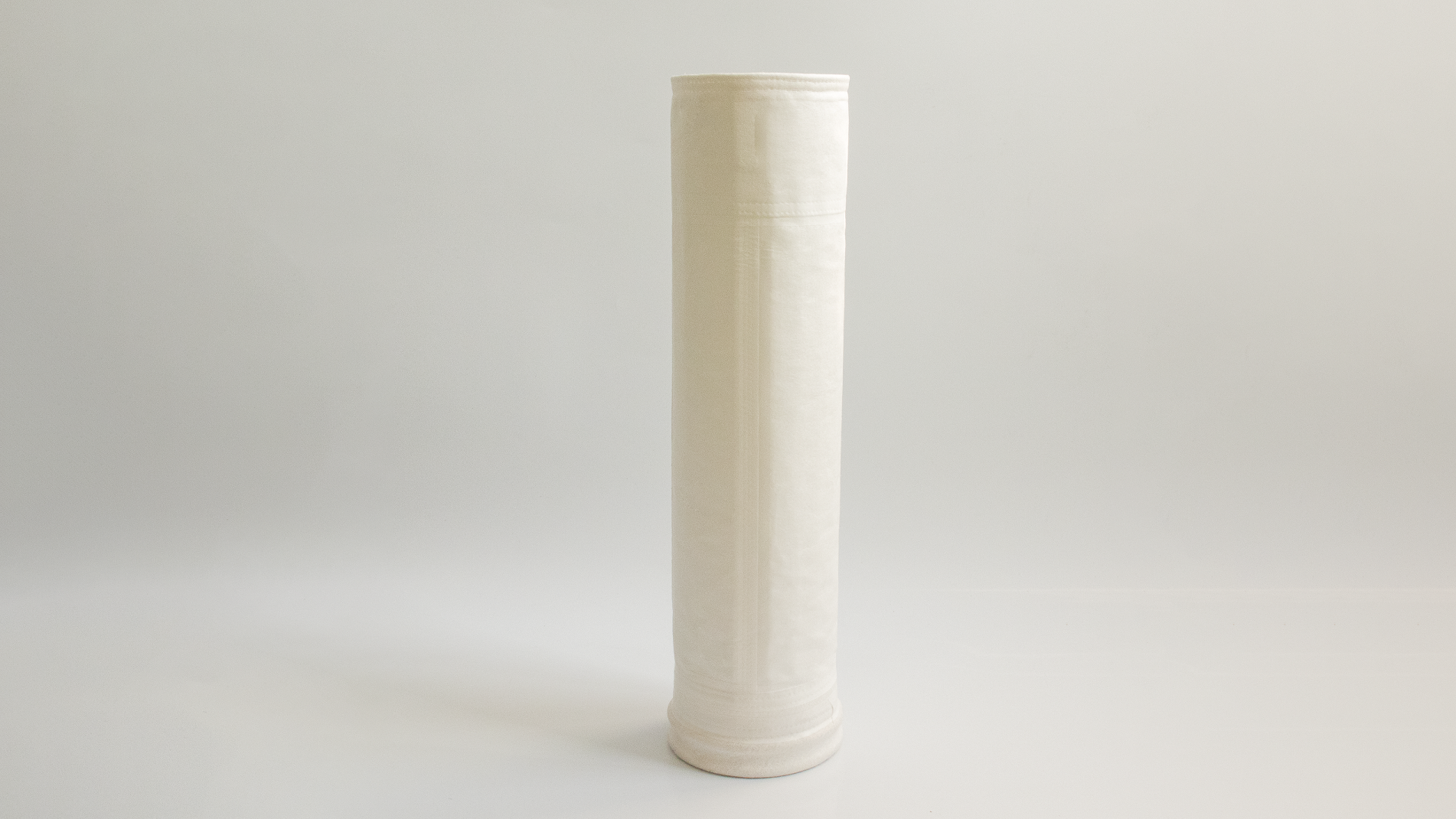

A PTFE Filter Bag (Polytetrafluoroethylene Filter Bag), also known as a Teflon Filter Bag, is a high-performance dust collector filter bag made from 100% PTFE fiber. It is designed for extreme industrial environments requiring excellent temperature resistance, chemical stability, corrosion resistance, and long service life.
PTFE filter bags are widely used in baghouse dust collectors, pulse jet filtration systems, and high-temperature gas filtration applications where conventional filter materials such as polyester, acrylic, or aramid cannot provide sufficient performance.
Main Features of PTFE Filter Bags
1. Outstanding Chemical Resistance
PTFE is one of the most chemically stable materials available.
PTFE filter bags can resist:
- Strong acids
- Strong alkalis
- Organic solvents
- Oxidizing gases
- Corrosive industrial fumes
They are especially suitable for aggressive gas environments where other filter materials may degrade.
2. Excellent High-Temperature Performance
PTFE filter media can withstand very high operating temperatures.
Typical specifications:
| Parameter | Specification |
|---|---|
| Material | 100% PTFE Fiber |
| Filter Type | Needle Felt |
| Continuous Working Temperature | 240–260°C |
| Short-Term Peak Temperature | Up to 280°C |
| Weight | 450–800 g/m² |
| Cleaning Method | Pulse Jet Cleaning |
| Chemical Resistance | Excellent |
(Actual temperature capability depends on filter construction, gas composition, and operating conditions.)
3. Superior Hydrolysis Resistance
PTFE has almost no water absorption and excellent resistance to moisture.
Advantages:
- Suitable for wet gas filtration
- Resistant to condensation damage
- Stable performance in humid environments
- Long service life under harsh conditions
This makes PTFE filter bags ideal for applications involving steam, moisture, and corrosive gases.
4. Excellent Dust Release Performance
PTFE fiber has a very smooth surface and a low friction coefficient.
Benefits:
- Dust does not easily penetrate the filter media
- Easy pulse cleaning
- Lower pressure drop
- Reduced compressed air consumption
- Stable filtration efficiency
5. Long Service Life
Although PTFE filter bags have a higher initial cost, they often provide longer service life due to:
- High chemical stability
- High temperature resistance
- Excellent oxidation resistance
- Low fiber degradation
In severe operating conditions, PTFE bags can significantly reduce replacement frequency and maintenance costs.
Types of PTFE Filter Bags
1. 100% PTFE Needle Felt Bag
Made entirely from PTFE fiber.
Features:
- Maximum chemical resistance
- Highest temperature performance
- Suitable for extreme environments
Applications:
- Waste incineration
- Chemical processing
- High-temperature filtration
2. PTFE Membrane Laminated Filter Bag
A PTFE microporous membrane is laminated onto a base filter fabric.
Advantages:
- Extremely high filtration efficiency
- Low emissions
- Excellent fine dust capture
- Easy dust release
Commonly used for:
- Fine powder filtration
- Pharmaceutical dust collection
- Clean emission requirements
3. PTFE Blended Filter Bag
PTFE fibers may be blended with other materials to balance:
- Performance
- Cost
- Mechanical strength
Applications of PTFE Filter Bags
Waste Incineration Plants
PTFE filter bags are widely used for:
- Incinerator flue gas filtration
- Acid gas removal systems
- Fly ash collection
They withstand complex chemical environments containing:
- HCl
- SO₂
- Heavy metal particles
- Acidic compounds
Chemical Industry
Applications include:
- Chemical powder recovery
- Corrosive gas filtration
- Process dust collection
Power Generation
Used in:
- Coal-fired boiler dust collectors
- High-moisture flue gas filtration
- Desulfurization systems
Cement Industry
Used for:
- Kiln exhaust filtration
- High-temperature dust collection
- Grinding system filtration
PTFE Filter Bag vs Other Filter Materials
| Feature | PTFE | PPS | Nomex (Aramid) | Polyester |
|---|---|---|---|---|
| Temperature Resistance | ★★★★★ | ★★★★ | ★★★★★ | ★★ |
| Chemical Resistance | ★★★★★ | ★★★★★ | Good | Moderate |
| Hydrolysis Resistance | ★★★★★ | ★★★★★ | Good | Poor |
| Dust Release | Excellent | Good | Good | Moderate |
| Service Life | Very Long | Long | Long | Medium |
| Cost | Highest | High | High | Low |
Common PTFE Filter Bag Treatments
PTFE Membrane Coating
Improves:
- Filtration efficiency
- Fine particle capture
- Surface filtration performance
Heat Setting
Improves:
- Dimensional stability
- Temperature performance
Singeing & Calendering
Improves:
- Surface smoothness
- Dust release
- Cleaning efficiency
How to Select PTFE Filter Bags
Before selecting PTFE filter bags, consider:
1. Operating Temperature
Check:
- Continuous temperature
- Peak temperature
- Temperature fluctuations
2. Gas Chemistry
Analyze:
- Acid gases
- Alkali gases
- Oxygen concentration
- Moisture content
3. Dust Properties
Consider:
- Particle size
- Dust abrasiveness
- Dust concentration
4. Dust Collector Design
Confirm:
- Filter bag size
- Cage structure
- Air-to-cloth ratio
- Pulse cleaning pressure
Conclusion
PTFE Filter Bags are the ultimate choice for extreme dust collection environments requiring maximum chemical resistance, high-temperature capability, and long service life.
With outstanding resistance to corrosion, moisture, and thermal degradation, PTFE filter bags are widely used in waste incineration plants, chemical industries, power plants, cement factories, and other demanding industrial filtration systems.
For applications where reliability and emission control are critical, PTFE filter bags provide one of the highest-performance filtration solutions available.
