The SCG353A043 ASCO is a 3/4 inch pulse jet diaphragm valve from the ASCO Series 353 dust collector valve family. It is designed for reverse pulse-jet cleaning systems, providing fast and powerful compressed-air pulses to remove dust from filter bags, cartridges, and other filter media.
ASCO SCG353A043 Specifications
| Parameter | Specification |
|---|---|
| Model | SCG353A043 |
| Brand | ASCO |
| Series | 353 Series |
| Valve Type | Pulse jet diaphragm valve |
| Function | 2/2 Normally Closed |
| Port Size | 3/4 inch |
| Connection | Threaded |
| Orifice Size | 20 mm |
| Body Material | Aluminum alloy |
| Seal Material | NBR |
| Diaphragm Material | TPE / optional FKM |
| Working Medium | Clean compressed air |
| Pressure Range | 0.35–8.5 bar |
| Maximum Pressure | 10 bar |
| Flow Coefficient (Kv) | 14 m³/h |
| Flow Rate | Approx. 233 L/min |
| Protection Class | IP65 |
| Temperature Range | -20°C to +85°C |
| Weight | Approx. 0.7 kg |
| Voltage Options | 24V DC, 24V AC, 110V AC, 220/230V AC |

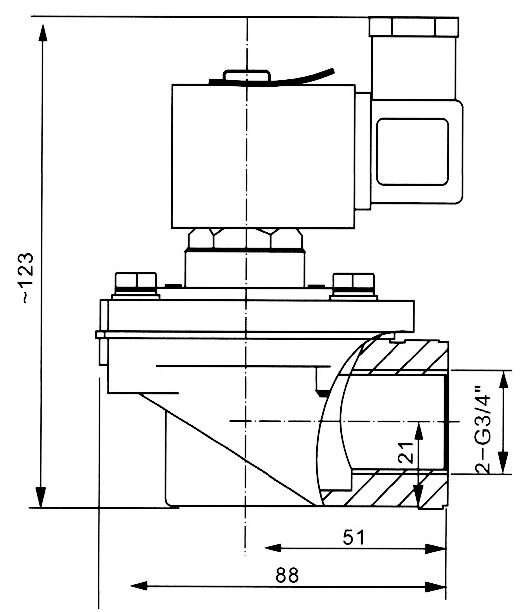

Main Dimension of SCG353A043 ASCO Dust Collector Valve
