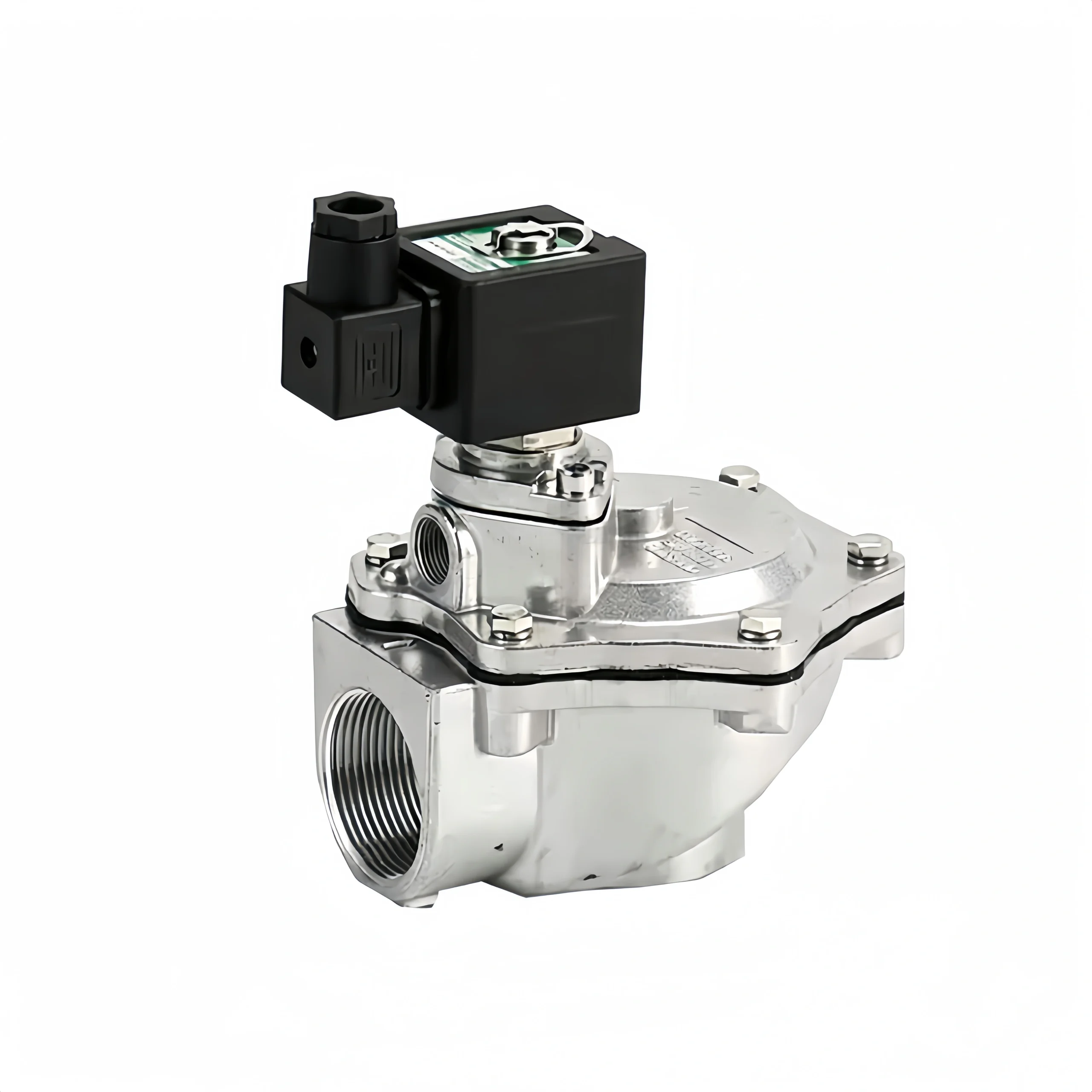

The SCG353A047 ASCO valve is a 1-1/2 inch pulse jet diaphragm valve from the ASCO Series 353 dust collector valve family. It is designed for industrial dust collection systems and provides high-speed compressed air pulses to clean filter bags and cartridge filters.
SCG353A047 ASCO Valve Specifications
| Parameter | Specification |
|---|---|
| Model | SCG353A047 |
| Brand | ASCO |
| Series | 353 Series |
| Valve Type | Pilot-operated diaphragm pulse valve |
| Port Size | 1-1/2 inch |
| Connection Type | Threaded |
| Orifice Diameter | 52 mm |
| Diaphragm Type | Double diaphragm |
| Body Material | Aluminum alloy |
| Seal Material | NBR (standard) |
| Medium | Compressed air |
| Pressure Range | 0.35–8.5 bar |
| Flow Coefficient (Kv) | 44 m³/h |
| Voltage Options | 24V DC, 24V AC, 110V AC, 230V AC |
| Ambient Temperature | Approx. -20°C to +85°C |
| Weight | Approx. 1.4 kg |

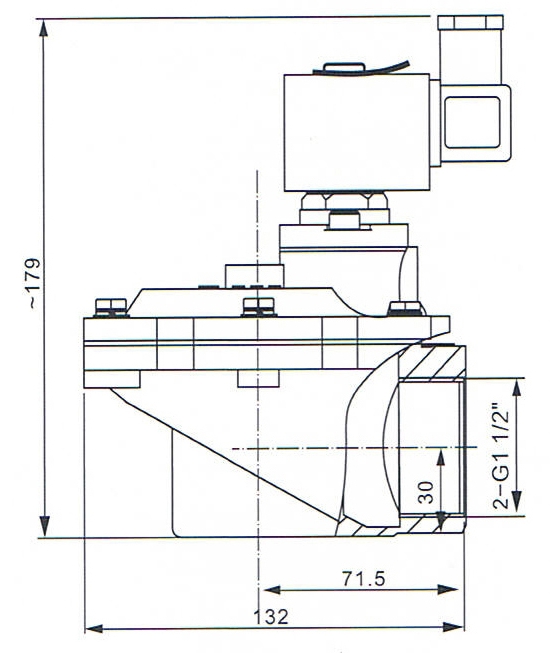

Main Dimension of SCG353A047 ASCO valve
