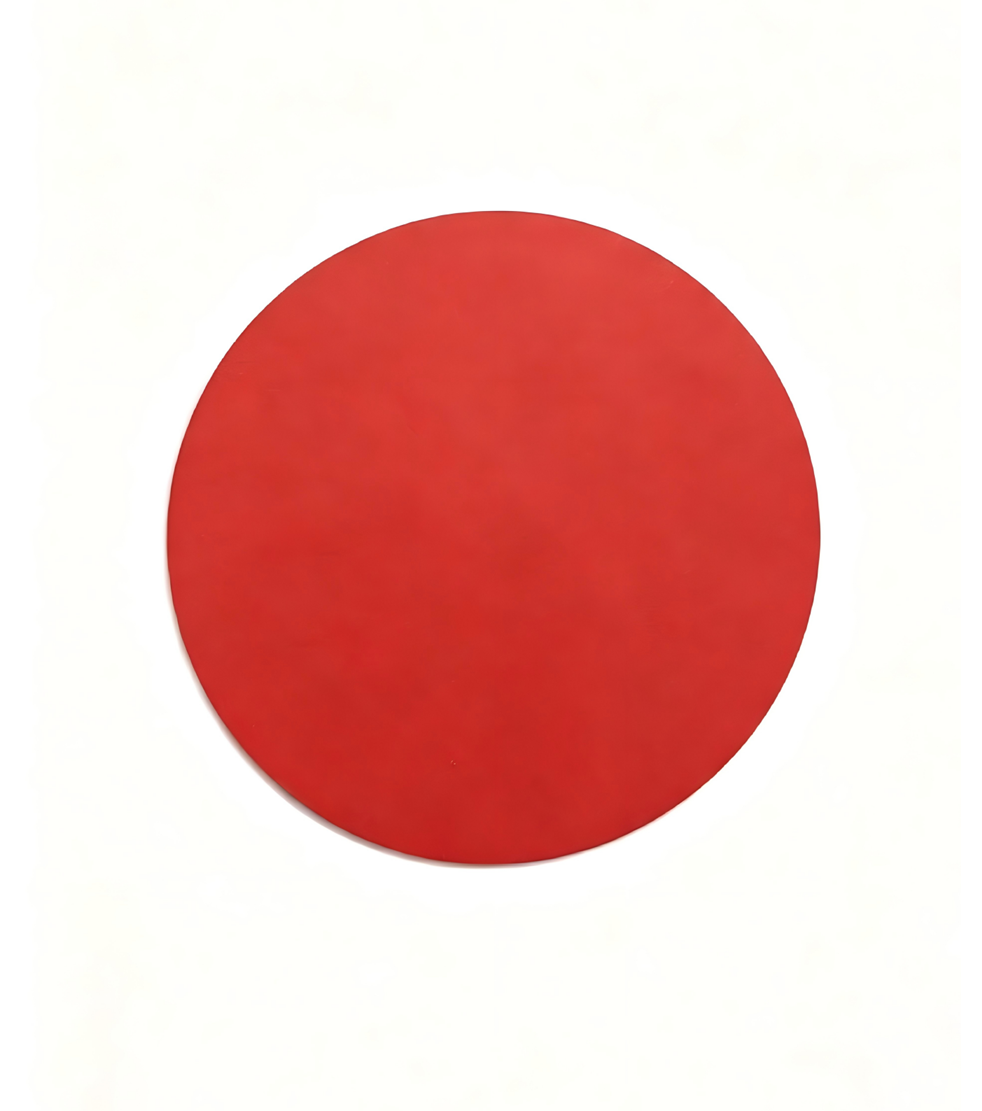

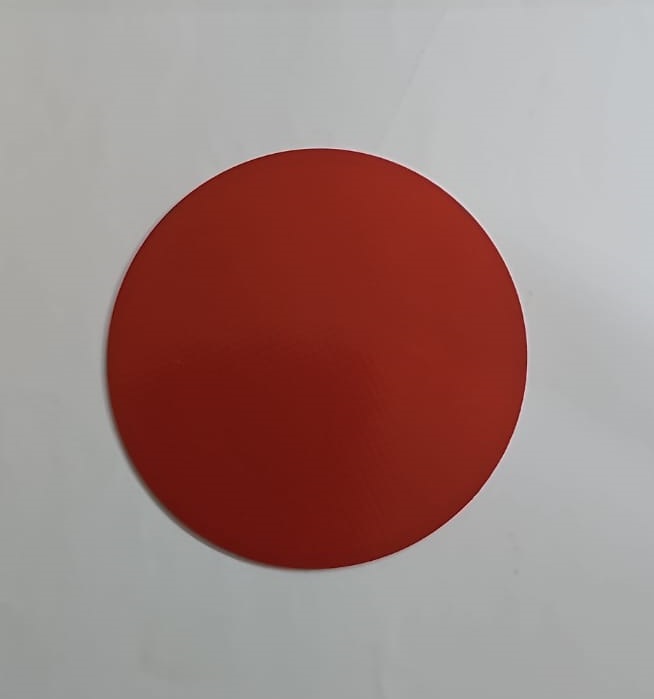

V4549902-0100 Membrane For Alstom Optipow 105 & 135 Valve
V4549902-0100 Membrane is a pilot diaphragm (membrane) spare part used in Alstom Optipow pulse jet valves, especially the Optipow 105 and Optipow 135 air cleaning valves used in industrial dust collector systems.
Main Specifications
| Item | Specification |
|---|---|
| Part Number | V4549902-0100 |
| Application | Alstom Optipow 105 / Optipow 135 pulse valves |
| Part Type | Pilot membrane / diaphragm |
| Material | Buna-N rubber (NBR) |
| Diameter | 72 mm |
| Thickness | 1.15 mm |
| Working Pressure | Up to approx. 6 bar |
| Application | Dust collector pulse cleaning system |
