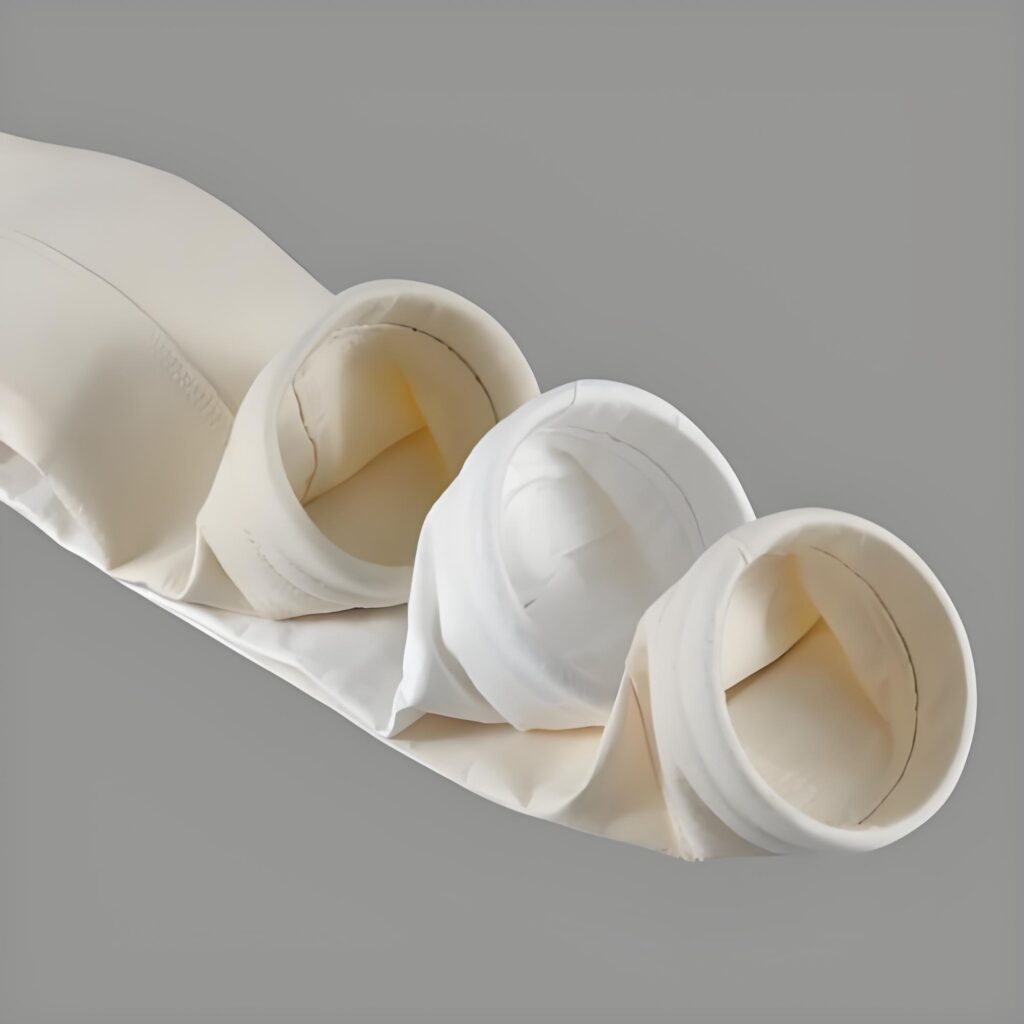

PTFE coated filter bags are industrial dust collection filter bags that have been treated with a thin layer of polytetrafluoroethylene (PTFE) coating on the surface of the filter fabric. They are designed to improve filtration performance, chemical resistance, and dust release properties in demanding dust collection applications.
PTFE is a high-performance fluoropolymer commonly known as Teflon™. Because of its excellent non-stick properties and resistance to heat and chemicals, PTFE coating is widely used on filter bags for industries that handle difficult dust, corrosive gases, or high-temperature applications.
How Do PTFE Coated Filter Bags Work?
A traditional filter bag relies on the filter media fibers to capture dust particles. With a PTFE coating, the surface of the filter bag becomes smoother and more hydrophobic.
The working process is:
- Dust-containing air enters the dust collector
- Air passes through the PTFE coated filter bags from the outside or inside depending on the collector design.
- Dust particles are captured on the PTFE surface
- The fine PTFE layer acts as a highly efficient filtration barrier.
- Very small particles are trapped while clean air passes through.
- Dust cake is easily released
- The smooth PTFE surface prevents dust from deeply embedding into the fibers.
- During pulse cleaning, compressed air easily removes the accumulated dust layer.
Main Advantages of PTFE Coated Filter Bags
1. Excellent Dust Release Performance
The biggest advantage of PTFE coating is its non-stick surface. Dust is less likely to penetrate into the fabric structure, reducing:
- Filter bag clogging
- Pressure drop increase
- Cleaning frequency
- Energy consumption
This makes PTFE coated bags ideal for fine and sticky dust applications.
2. High Filtration Efficiency
PTFE coated filter bags can achieve very high filtration efficiency because the coating creates a fine filtration barrier.
They are commonly used where strict emission standards are required, especially for:
- Fine particulate dust
- Submicron particles
- Toxic or hazardous dust
3. Excellent Chemical Resistance
PTFE has outstanding resistance to many chemicals, acids, and alkalis.
PTFE coated filter bags are suitable for applications involving:
- Acidic gases
- Chemical processing dust
- Waste incineration
- Pharmaceutical powders
4. Good Moisture Resistance
PTFE is naturally hydrophobic, meaning it repels water and moisture.
Benefits include:
- Reduced moisture absorption
- Less dust sticking
- Better performance in humid environments
5. High Temperature Capability
Depending on the base fabric, PTFE coated filter bags can operate at elevated temperatures.
Typical temperature ranges:
| Filter Material | Continuous Operating Temperature |
|---|---|
| Polyester + PTFE coating | Around 130°C–150°C |
| Fiberglass + PTFE coating | Around 240°C–260°C |
| PPS + PTFE coating | Around 190°C–200°C |
| PTFE fiber filter bag | Around 240°C–260°C |
(The exact temperature depends on the filter media construction and operating conditions.)
Common Base Materials for PTFE Coated Filter Bags
PTFE coating can be applied to different filter fabrics, including:
Polyester Filter Bags + PTFE Coating
- Economical solution
- Good chemical resistance
- Used in general industrial dust collectors
PPS Filter Bags + PTFE Coating
- Excellent acid resistance
- Suitable for coal-fired boilers and power plants
Fiberglass Filter Bags + PTFE Coating
- High-temperature applications
- Used in cement plants and waste incinerators
Aramid (Nomex) Filter Bags + PTFE Coating
- Good heat resistance
- Used in asphalt plants and high-temperature dust collection
Applications of PTFE Coated Filter Bags
PTFE coated filter bags are commonly used in:
- Cement manufacturing
- Steel and metallurgy plants
- Waste incineration systems
- Chemical processing
- Pharmaceutical manufacturing
- Power generation
- Asphalt mixing plants
- Carbon black production
- Food processing
PTFE Coated Filter Bags vs PTFE Membrane Filter Bags
Although they are often confused, they are different:
| Feature | PTFE Coated Filter Bag | PTFE Membrane Filter Bag |
|---|---|---|
| Surface treatment | PTFE coating applied to fabric | Expanded PTFE membrane laminated onto fabric |
| Filtration mechanism | Fiber filtration + coating | Surface filtration |
| Dust release | Very good | Excellent |
| Filtration efficiency | High | Extremely high |
| Cost | Lower | Higher |
PTFE membrane filter bags usually provide the highest filtration efficiency, while PTFE coated bags offer a more economical improvement over standard filter media.
Conclusion
PTFE coated filter bags are high-performance dust collector filter elements that combine the strength of traditional filter fabrics with the chemical resistance and non-stick properties of PTFE. They provide better dust release, higher filtration efficiency, improved moisture resistance, and longer service life compared with untreated filter bags.
For dust collection systems operating under harsh conditions—especially with fine, sticky, corrosive, or high-temperature dust—PTFE coated filter bags are often an excellent choice.
