Introduction
A RCA Remote Pilot Valve Enclosure is an important control component used in dust collector systems to operate pulse cleaning valves remotely. It is commonly installed in industrial dust filtration equipment, such as baghouse dust collectors, cartridge collectors, and other air filtration systems that require automatic filter cleaning.
The RCA remote pilot valve enclosure provides a protected housing for pilot valves and pneumatic control components, allowing the pulse cleaning system to work efficiently in harsh industrial environments.
What Is an RCA Remote Pilot Valve Enclosure?

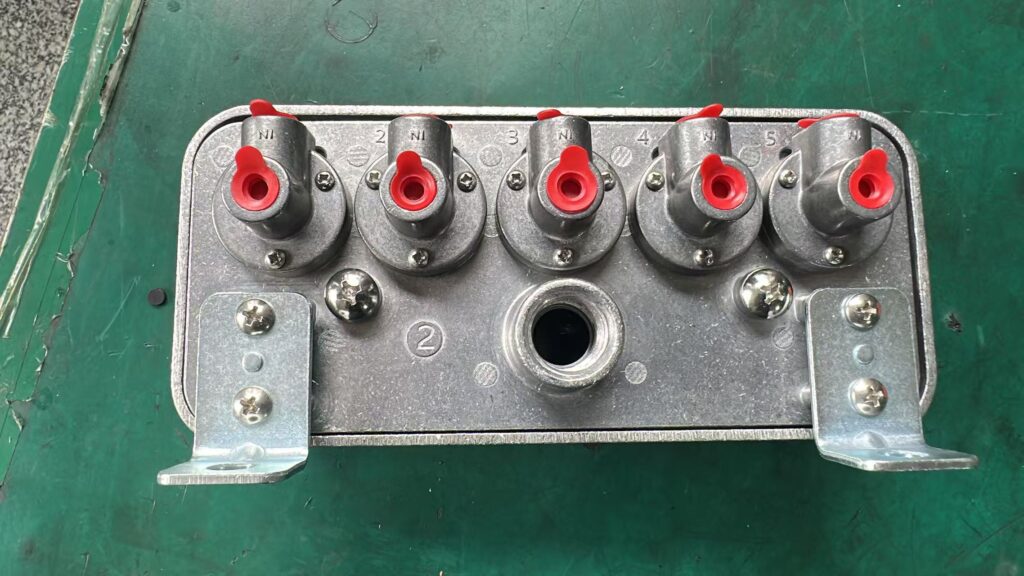

An RCA Remote Pilot Valve Enclosure is a compact enclosure designed to contain and protect remote pilot valves used for controlling dust collector pulse valves.
In a typical dust filter system, compressed air is released through pulse valves to generate short, powerful air blasts that clean dust from filter bags or cartridges. The remote pilot valve acts as the control device that triggers the main diaphragm pulse valve.
The enclosure protects the pilot valve assembly from dust, moisture, chemicals, and mechanical damage while ensuring reliable operation.
How Does an RCA Remote Pilot Valve Enclosure Work?
The working process of an RCA remote pilot valve enclosure is as follows:
Electrical Signal Activation
The dust collector controller sends an electrical signal to the pilot valve solenoid.
Pilot Valve Operation
The remote pilot valve opens and releases compressed air to the control chamber of the pulse valve.
Pulse Valve Opening
The pressure balance inside the diaphragm valve changes, causing the diaphragm to open quickly.
Compressed Air Cleaning
A high-pressure air pulse is released into the filter bag or cartridge, removing accumulated dust particles.
Filter Recovery
The cleaned filter surface restores airflow efficiency, reducing pressure loss across the dust collector.
Applications of RCA Remote Pilot Valve Enclosure
RCA remote pilot valve enclosures are widely used in various dust collection applications, including:
- Cement plants
- Steel and metal processing industries
- Power generation facilities
- Mining operations
- Chemical processing plants
- Pharmaceutical production
- Food processing industries
- Woodworking dust extraction systems
They are suitable for systems requiring reliable and centralized control of multiple pulse valves.
Key Features of RCA Remote Pilot Valve Enclosure
1. Protection in Harsh Environments
The enclosure provides protection against dust, moisture, and industrial contamination, helping extend the service life of internal components.
2. Reliable Pulse Valve Control
By providing stable pilot air control, the enclosure ensures fast and accurate operation of dust collector pulse valves.
3. Easy Installation and Maintenance
The compact design allows convenient installation near dust collector equipment while making inspection and replacement easier.
4. Improved Dust Collector Performance
A properly functioning remote pilot valve system helps maintain effective filter cleaning, reducing pressure drop and improving energy efficiency.
RCA Remote Pilot Valve Enclosure vs Direct-Mounted Solenoid Valves
In traditional dust collector systems, solenoid valves may be mounted directly on each pulse valve. However, remote pilot valve enclosures offer several advantages:
- Centralized valve control
- Reduced wiring complexity
- Better protection from outdoor conditions
- Easier maintenance access
- Improved system organization
This makes remote pilot valve enclosures a preferred solution for large dust filtration systems.
Importance in Dust Collection Systems
The cleaning efficiency of a dust collector depends heavily on the reliability of its pulse cleaning system. If the pilot valve or control system fails, dust accumulation can increase, causing:
- Higher pressure drop
- Reduced airflow
- Increased energy consumption
- Shorter filter life
- Reduced filtration efficiency
An RCA remote pilot valve enclosure helps maintain consistent pulse valve operation and ensures continuous dust removal performance.
Conclusion
An RCA Remote Pilot Valve Enclosure for dust filters is a critical component that improves the reliability and efficiency of pulse jet cleaning systems. By protecting remote pilot valves and providing accurate control of dust collector pulse valves, it helps maintain stable filtration performance in demanding industrial environments.
For modern baghouse and cartridge dust collectors, a reliable remote pilot valve enclosure is essential for achieving efficient filter cleaning, reducing maintenance costs, and extending equipment life.
