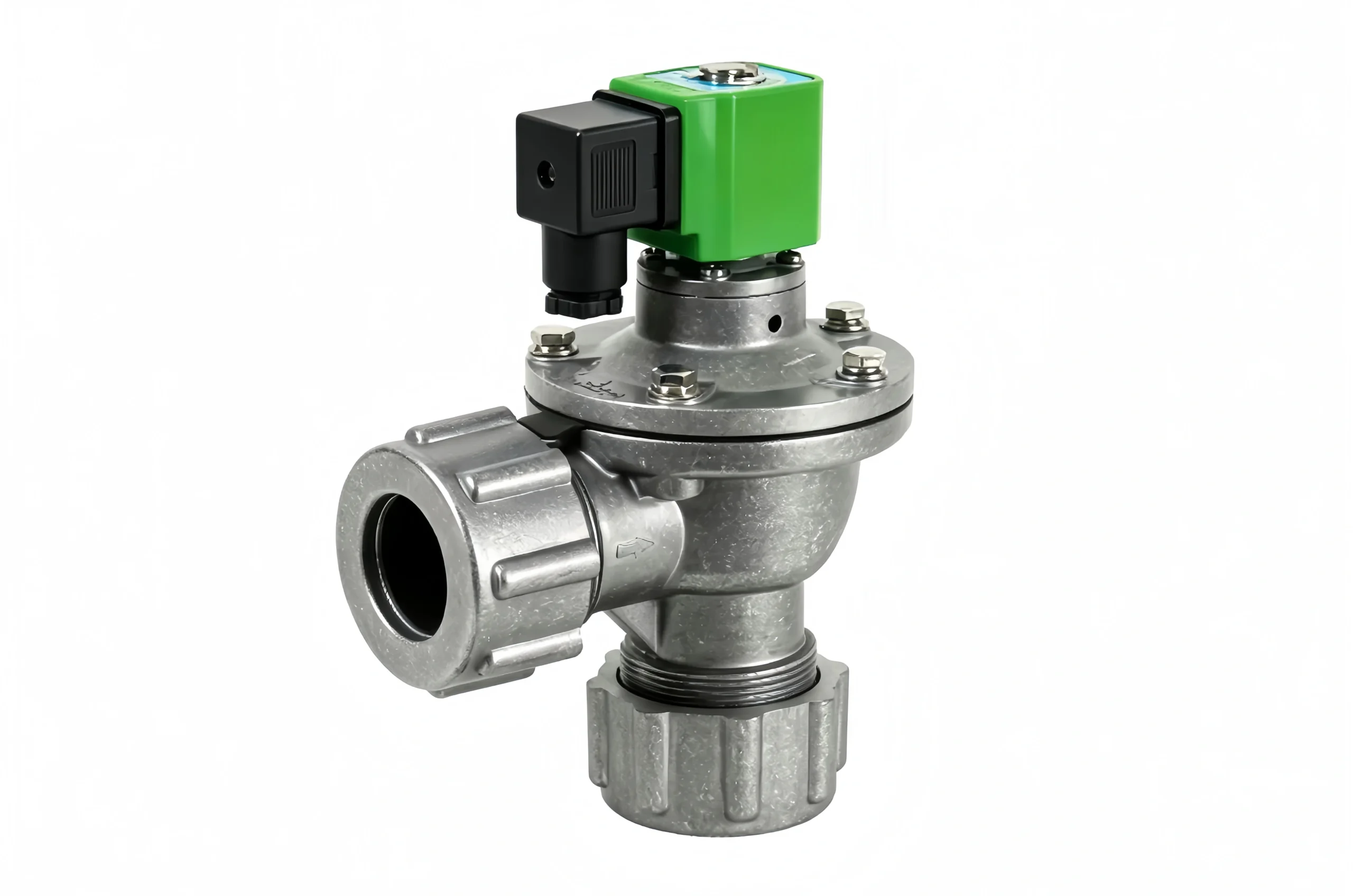

DMF-ZM-25 valve is a 1-inch (DN25) quick coupling nut pulse jet valve used in industrial dust collector systems. It is a right-angle diaphragm pulse valve with double coupling nut for easy and fast installation that releases short, powerful bursts of compressed air to clean dust from filter bags, filter cartridges, and other filtration media.
Main Specifications of DMF-ZM-25
| Parameter | Specification |
|---|---|
| Valve Type | Electromagnetic pulse jet diaphragm valve |
| Model | DMF-ZM-25 |
| Port Size | 1 inch (DN25) |
| Connection | Quick coupling nut / dresser nut |
| Structure | Right-angle diaphragm valve |
| Body Material | Aluminum alloy |
| Working Medium | Clean compressed air |
| Working Pressure | Approx. 0.1–0.8 MPa |
| Voltage Options | DC24V, AC110V, AC220V |
| Application | Dust collector filter cleaning |

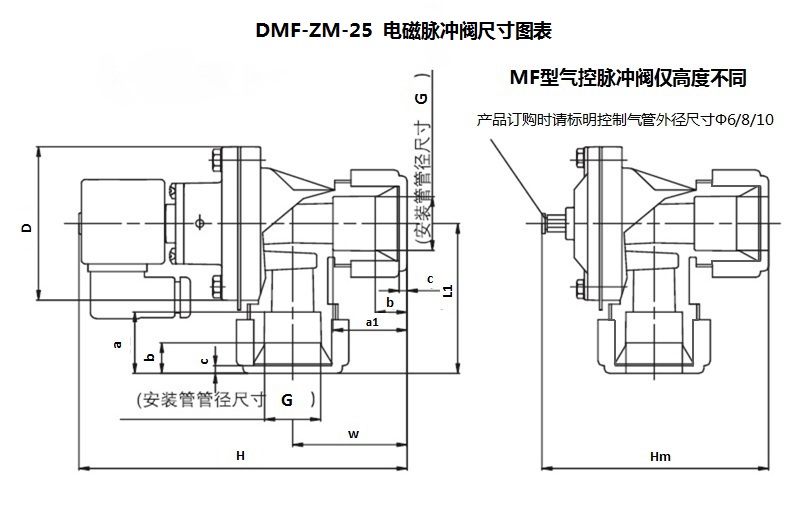

Main Dimension
